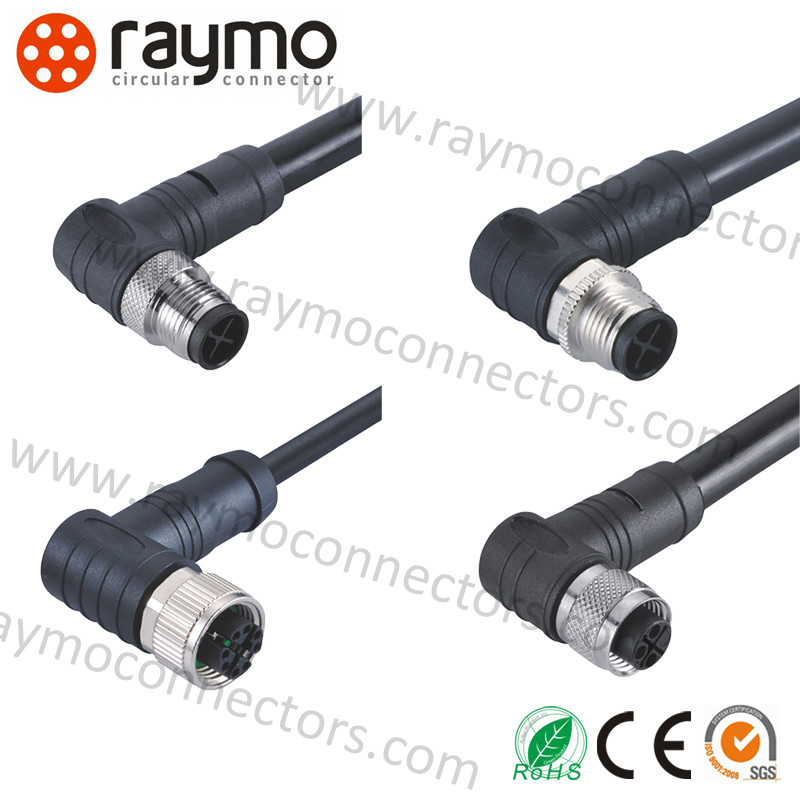

Description for circular waterproof m12 elbow right angle 8 pin for test&measurement
Raymo M12 circular connectors facilitate the simple and cost-effective connection of signal, data and power in the automation industry. Raymo M12 series are widely used in many applications of automatio, such as sensor & actuator, CANopen, DeviceNET, Profibus, Profinet, EtherCAT, Ethernet, Interbus, CC-Link, Motor servo, Digital camera, Railway process control,,, and so on.
Specification for circular waterproof m12 elbow right angle 8 pin for test&measurement
| Prct attribute |
Attribute Value |
| Manufacturer |
RAYMO |
| Prct name |
Circular waterproof connectors |
| Connector size |
M12 |
| Contact Gender |
Pin(Male), pole(female) |
| Number of contacts |
8 contacts |
| Mounting Style |
Elbow/right angle |
| Termination Style |
Solder/print/PCB |
| Current Rating |
1.5-3A |
| IP Rating |
IP67 |
| Application |
Sensors, Actuators |
| Shell Material |
(1) Connector material: Plastic PA+GF
(2) M8 male to female molded cable
(3) Contacts:Brass, Gold Plated
(4) Cable material: PVC/TPU |
| Wire Gauge |
24-28AWG |
| Certifications |
ISO9001/ CE/ ROHS2.0/ SGS |
| Temperature Range |
-25°C, +80°C |
Electrical data & Mechanical data for circular waterproof m12 elbow right angle 8 pin for test&measurement
| Contacts |
Rated current |
Voltage |
Wire gauge/size |
| A/C |
D/C |
mm2 |
AWG |
| 3 pins |
3A |
50V |
60V |
0.25 |
24 |
| 4 pins |
3A |
50V |
60V |
0.25 |
24 |
| 5 pins |
3A |
30V |
30V |
0.25 |
24 |
| 6 pins |
1.5A |
30V |
30V |
0.14 |
26 |
| 8 pins |
1.5A |
30V |
30V |
0.14 |
26 |
Features for circular waterproof m12 elbow right angle 8 pin for test&measurement
- In accordance with IEC 61076-2-101, IEC 61076-2-111 or IEC 61076-2-113
- Size can be M5,M8,M12,M16
- Gold-plated ternimals
- Degree of protection IP67
- A,B,D,X,Y(1/2/3/4),C,S,T,K,L,M codings are available
- TPU over-molded and PA+GF or metal housing
- Excellent performance
- Perfect O-ring tightened sealing
- Cable length customized, PUR and PVC cable options
Application for circular waterproof m12 elbow right angle 8 pin for test&measurement
- Sensor & Industrial Automation
- Target acquisition
- Computers
- Automotive
- Target acquisition
- LED lighting & LED display
- Vacuum
-
Medical industry
Our advantage for circular waterproof m12 elbow right angle 8 pin for test&measurement
- Original manufacturer
- Excellent R&D team
- 10+ years experience
- OEM & ODM acceptable
FAQ for circular waterproof m12 elbow right angle 8 pin for test&measurement
-What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown cartons.
OEM&ODM is available after getting your authorization letters.
-Does your company a professional manufacturer?
A: Yes, we specialized in prcing circular push pull self-latching connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 7 years.
-Can I use my own logo on the prcts?
A:Yes, customers' logo, size and design are acceptable, OEM&ODM are welcomed.
