Name: Amphenol MIL-DTL-38999 I Series mil standard JY27467 Military Circular Connectors
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: JY27467
Price: 12.30 USD
Availability: InStock

Description for Amphenol MIL-DTL-38999 I Series mil standard JY27467 Military Circular Connectors

1. GJB599A series are made according to the same standard with MIL-DTL-38999K series. The difference is that: the basic part number of GJB599A is JY, while MIL-DTL-38999K is MS. GJB599A series is interchangeable with MIL-DLT-38999K series..

2. The applicable protective cap, backshell and square flange cushion details can be found in Page 12～20.

3. If the operating environment requires oil resistance, the connector sealing components should choose fluorinated silicone rubber. When placing orders, plus C1 at the end of the original part number (for example: JY27467T17F35PNC1).

Specification for Amphenol MIL-DTL-38999 I Series mil standard JY27467 Military Circular Connectors

Prct attribute	Attribute Value
Manufacturer	RAYMO
Prct name	Amphenol MIL-DTL-38999 I Series mil standard JY27467 Military Circular Connectors
Model	JY27467
Contact Gender	pin(male)
Contacts	3-20#
Body size	09
Terminal	Solder
Housing plating	electroless nickel plating
Pin numbers	3 pins
Application	military systems such as aviation, aerospace, weapon, and other electronic equipment systems

Electrical data & Mechanical data for Amphenol MIL-DTL-38999 I Series mil standard JY27467 Military Circular Connectors

Housing	Aluminum alloy/stainless steel
Plating	B class: olive green cadmium plating E class: stainless steel passive F class: electroness nickel plating
Insulator	Thermoset plastic
Grommet and seal	Silicon rubber
Contact	Gold-plated copper alloy, crimping, soldering, PCB
Endurance	500 cycles
Vibration	Sinusoid vibration: frequency 10-2000Hz, acceleration: 294m/s2 Random vibration: frequency 100-1000Hz, power spectral density: 1g2/Hz
Shock	At 3 ms half sinusoid, peak value
Operating temperature	B class: -65℃～+175℃ E, F class: -65℃～+200℃
Salt spray	According to method 1001 GJB1217 B class 500h, E class 1000h F class 48h
Relative humidity	98% at 40℃
Operating height	≤30480m

Features for Amphenol MIL-DTL-38999 I Series mil standard JY27467 Military Circular Connectors

9 housing sizes, 74 polarizations and various modification types
5 key leading structure to avoid mismating
Application: military systems such as aviation, aerospace, weapon, and other electronic equipment systems
Enterprise standard: 21E0.204.102JT

Application for Amphenol MIL-DTL-38999 I Series mil standard JY27467 Military Circular Connectors

Military systems such as

aviation,
aerospace,
weapon,
and other electronic equipment systems

Our advantage for Amphenol MIL-DTL-38999 I Series mil standard JY27467 Military Circular Connectors

Original manufacturer
Excellent R&D team
10+ years experience
OEM & ODM acceptable
100% quality tested
100% fast delivery
100% after-sales service

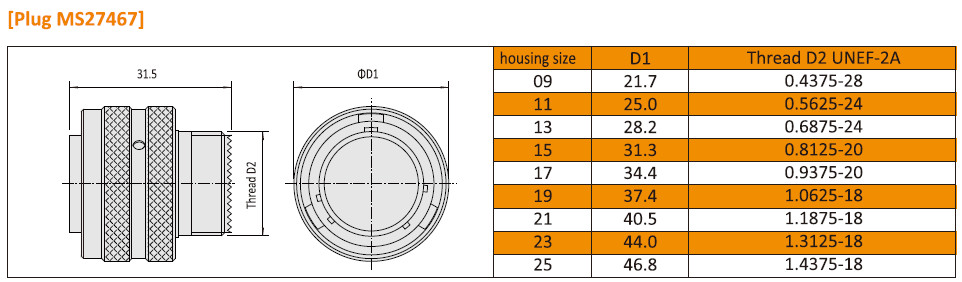

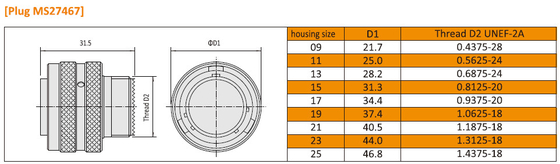

Dimention for Amphenol MIL-DTL-38999 I Series mil standard JY27467 Military Circular Connectors

Amphenol MIL-DTL-38999 I Series mil standard JY27467 Military Circular Connectors 0

Raymo also do:

D38999 I seires III series waterproof aviation circular connectors
Push pull connector LE MOS B series, waterproof K /W/T/half-moon S series, REDEL P series connectors
Fis chers core series 102 103 1031 104 connectors
Fis chers minimax series
Fis chers ultimate series
O D U_MINI SNAP Push-Pull Circular Connectors
O D U_AMC-advanced military connector

O D U_AMC easy clean Connectors
Mini connector HIROSE connectors
Cable connector Binders M16 680 678 420 series connectors
Circular screw fixed M8 M12 connectors
CABLE ASSEMBLY can be designed according customer real needs.Accept OEM

Tag:

Place of Origin:	Shenzhen, China
Brand Name:	RAYMO
Certification:	RoHS2.0, ISO:9001-2015, CE , SGS, REACH
Model Number:	JY27467

Minimum Order Quantity:	1piece
Price:	Negotiable
Packaging Details:	50pc/CTN
Delivery Time:	5-8 working days
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram, L/C
Supply Ability:	500pcs/week

Prct Name:	Military Circular Connectors	Housing Size:	09
Pin Number:	3 Pins	Contact Size:	3-20#
Housing Plating:	Electroless Nickel Plating	Mounting Type:	Cable Mount
Termination Method:	Solder	Contact Gender:	Male
Highlight:	Amphenol Military Circular Connectors , MIL-DTL-38999 Military Circular Connectors , JY27467 Military Circular Connectors
