Prct Name: | Military Circular Connectors | Housing Size: | 09 |
---|---|---|---|
Housing Plating: | Electroless Nickel Plating | Contact Size: | 3-20# |
Mounting Type: | Cable Mount | Termination Method: | Solder |
Contact Gender: | Male | IP Rating: | IP68 |
Highlight: | JY27467 Miniature Circular Connectors,Amphenol Miniature Circular Connectors,MIL-DTL-38999 Miniature Circular Connectors |

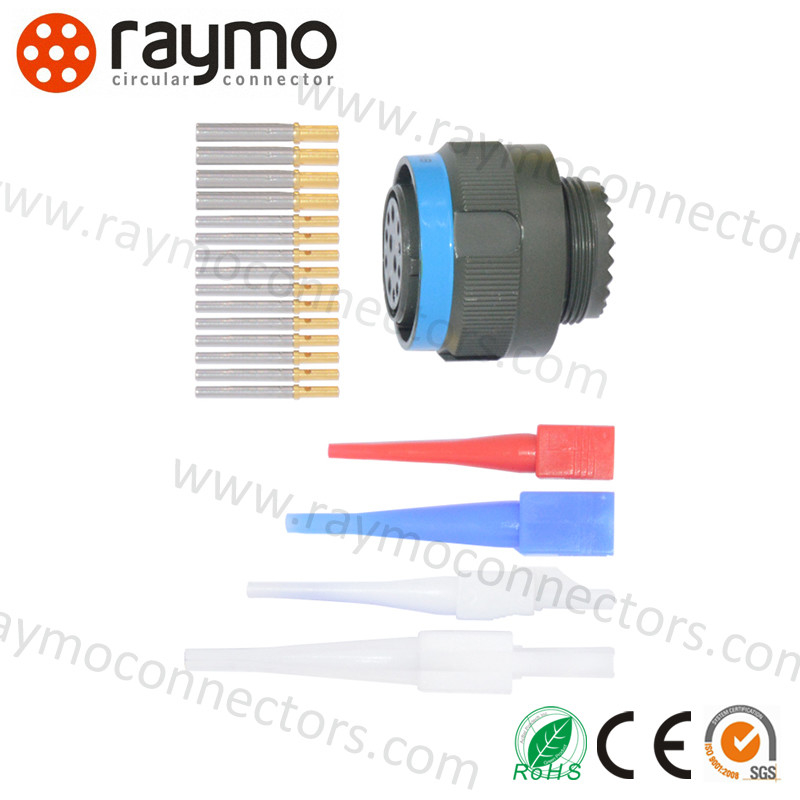

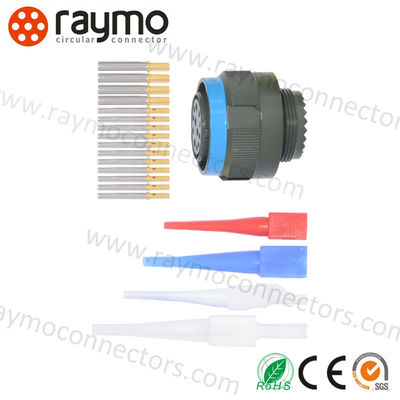

Description for Amphenol MIL-DTL-38999 I Series JY27467 Miniature Circular Connectors
GJB599A series are made according to the same standard with MIL-DTL-38999K series. The difference is that: the basic part number of GJB599A is JY, while MIL-DTL-38999K is MS. GJB599A series is interchangeable with MIL-DLT-38999K series..
[Part number example]
JY27467T25E35SN-H JY series plug, threaded shell end, can be mounted with accessory, 25# shell, stainless steel passive plating, 35# layout, filled with sockets, N polarization, soldering contacts.
Specification for Amphenol MIL-DTL-38999 I Series JY27467 Miniature Circular Connectors
Prct attribute | Attribute Value |
Manufacturer | RAYMO |
Prct name | Amphenol MIL-DTL-38999 I Series JY27467 Military Circular Connectors |
Model | JY27467 |
Contact Gender | pin(male) |
Contacts | 3-20# |
Body size | 09 |
Terminal | Solder |
Housing plating | electroless nickel plating |
IP Rating | IP68 |
Application | military systems such as aviation, aerospace, weapon, and other electronic equipment systems |
Electrical data & Mechanical data for Amphenol MIL-DTL-38999 I Series JY27467 Miniature Circular Connectors
Housing | Aluminum alloy/stainless steel |
Plating |
B class: olive green cadmium plating E class: stainless steel passive F class: electroness nickel plating |
Insulator | Thermoset plastic |
Grommet and seal | Silicon rubber |
Contact |
Gold-plated copper alloy, crimping, soldering, PCB |
Endurance | 500 cycles |
Vibration |
Sinusoid vibration: frequency 10-2000Hz, acceleration: 294m/s2 Random vibration: frequency 100-1000Hz, power spectral density: 1g2/Hz |
Shock | At 3 ms half sinusoid, peak value |
Operating temperature |
B class: -65℃~+175℃ E, F class: -65℃~+200℃ |
Salt spray |
According to method 1001 GJB1217 B class 500h, E class 1000h F class 48h |
Relative humidity | 98% at 40℃ |
Operating height | ≤30480m |
Features for Amphenol MIL-DTL-38999 I Series JY27467 Miniature Circular Connectors
Application for Amphenol MIL-DTL-38999 I Series JY27467 Miniature Circular Connectors
Military systems such as
Our advantage for Amphenol MIL-DTL-38999 I Series JY27467 Miniature Circular Connectors

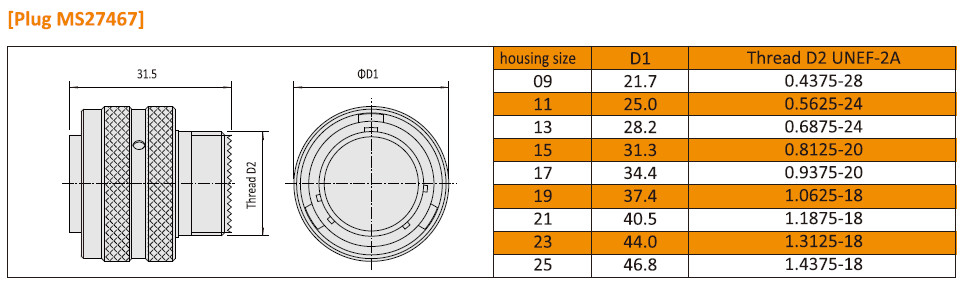

Dimention for Amphenol MIL-DTL-38999 I Series JY27467 Miniature Circular Connectors
