Amphenol MIL-DTL-38999 Series III Connector D38999/26WB05SN Female Plug Cable 5 Pin Military Circular Connectors

Basic Information
Place of Origin: Guangdong, China
Brand Name: RAYMO
Certification: CE / RoHS / SGS / ISO9001:2015
Model Number: D38999/26WB05SN
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: PE bag & carton
Delivery Time: 20-25 working days
Payment Terms: T/T
Supply Ability: 5000pcs per week
Prct Name: Amphenol MIL-DTL-38999 Series III Connector Connection Type: Crimp Connection
Housing Type: With Thread For Backshell Housing Plating: Electroless Nickel Plating
Number Of Positions: 5 Installation Diagram: 11-5
Shell Shape: Straight Polarization: N-normal
Highlight:

Amphenol MIL-DTL-38999 Series III Connector

,

D38999/26WB05SN Female Plug Cable

,

5 pin military circular connectors

Prct Description



GJB599A series is designed according to the same standard with MIL-DTL-38999K series. The difference is that: the basic part number

of GJB599A is J599, while MIL-DTL-38999K is D38999. The two series are interchangeable with each other.





Shell size

Contacts No. with solder & PCB type

0K
2 3 4 5 6 7 9
1K
2 3 4 5 6 7 8 10 12 14 16
2K
2 3 4 5 6 7 8 10 12 14 16 19 26
3K
3 4 6 7 8 10 12 14 16 18 21 30



Main features:
– Security of the Push-Pull latching system

– Watertight connection (IP 68/IP 66)
– Multipole types 2 to 30 contacts

– Solder or print (straight or elbow) contacts
– Keying system («G» key standard) for connector alignment

– Multiple key options to avoid cross mating of similar connectors
– 360° screening for full EMC shielding

– High packing density for space savings
– Rugged housing for extreme working conditions.

– Can be 100 compatible with original connectors
– High quality with reasonable prices



Technical Characteristics
Endurance >5000 cycles Salt spray corrosion test >96h
Humidity Up to 95% at 60℃ Protection Index (mated) IP68
Temperature Range -55°C~250°C
(-20°C~100°C for waterproof type)
Climatical category 55/175/21
Resistance to Vibration 10-2000Hz,15g Shielding
>95db at 10MHZ
>80db at 1GHZ
Shock Resistance >100g, 6ms Certification CE, RoHS, SGS
ISO9001:2019



Photo & Dimensions:

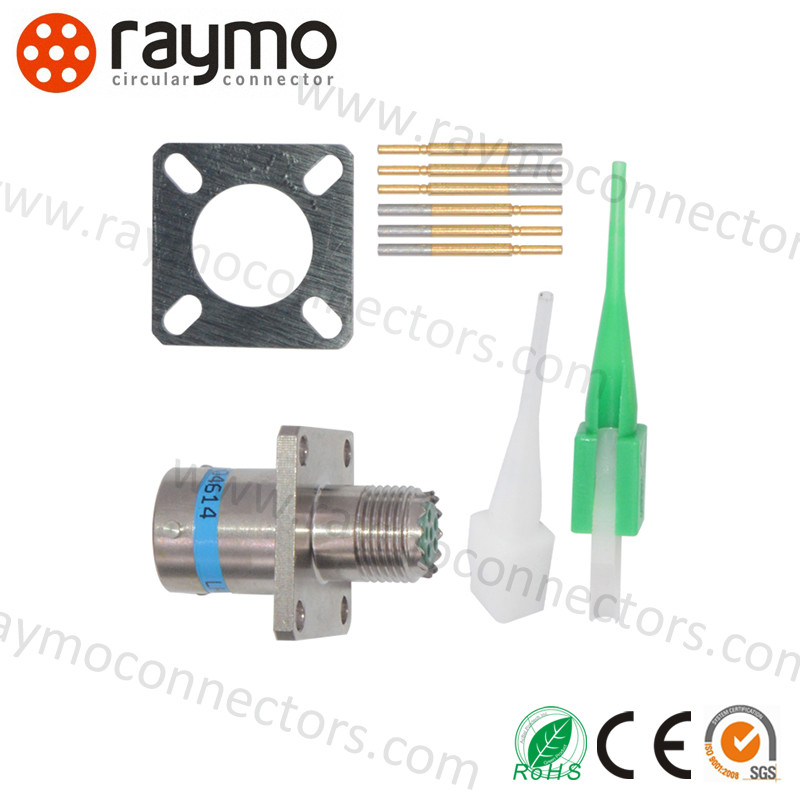

Amphenol MIL-DTL-38999 Series III Connector D38999/26WB05SN Female Plug Cable 5 Pin Military Circular Connectors 0



Application

RAYMO's high quality connectors are found in a variety of challenging applications and environmetns including:

Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor, Sensor Systems Instrumentation, Analysis Application.







Packing & Delivery

Packing:

PE bag & Carton



Delivery Time:

1~10pcs: 3~5 working days

11~100pcs: 3~5 working days

101~500pcs: 3~5 working days

501~1000pcs: 3~5 working days

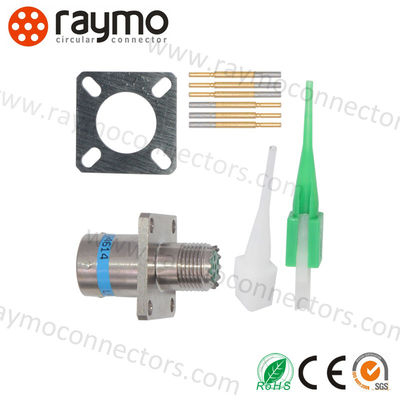

Amphenol MIL-DTL-38999 Series III Connector D38999/26WB05SN Female Plug Cable 5 Pin Military Circular Connectors 1
