| Place of Origin: | Shenzhen, Guangdong, China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | RoHS, Reach, SGS, ISO:9001-2015 |
| Model Number: | OHS-BC-1-4/10-B1-1-B |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | USD 5.99USD/piece |
| Packaging Details: | PE Bag & Carton |
| Delivery Time: | 7days |
| Payment Terms: | Western Union, T/T , MoneyGram, D/P, D/A, MoneyGram, L/C |
| Supply Ability: | 5000Pieces/ Week |
| Subsititute: | Russian Connector | Connector Type: | Receptacle |
|---|---|---|---|
| Orientation: | Hermetic Square Flange | Contact Type: | Male Pin |
| Number Of Positions: | 4 | Contact Arrangement: | 10 |
| Highlight: | OHS-BC-1-4/10-B1-1-B Hermetic Square flange Receptacle,Russian military circular connectors,OHS-BC-1-4/10-B1-1-B |
||
OHS-BC-1-4/10-B1-1-B Hermetic Square flange Receptacle bayonet Russian military circular connectors Description
Connectors of OHS-BC-1(2) type (plugs and receptacles) are designed for use in DC and AC circuits (up to 3 MHz) with voltage up to 250 V (amplitude value)
These connectors consist of two parts: Plug (female contacts only) and Hermetic Square flange Receptacle (male contacts only) and have multi key multi positioned (1, 2, 3) shell polarization protected from entanglement when one and the same diameters are mated
Bayonet coupling system.
OHS-BC-1-4/10-B1-1-B Hermetic Square flange Receptacle bayonet Russian military circular connectors main features:
Compact Size: Ideal for applications where space is limited.
High Performance: Capable of handling high data rates and power levels despite its small size, making it suitable for a wide range of applications.
Durable Construction: Constructed of high-quality materials to ensure long service life, even in harsh environments.
Easy Installation: Enables quick and easy installation and disassembly, saving time and effort during assembly and maintenance.
OHS-BC-1-4/10-B1-1-B Hermetic Square flange Receptacle bayonet Russian military circular connectors Parameter
|
Category |
Military Circular Connectors |
|
Part number |
OHS-BC-1-4/10-B1-1-B |
|
Connector Type |
Receptacle |
|
Orientation |
Hermetic Square flange |
|
Contact Type |
Male Pin |
|
Number of Positions |
4 |
|
Fastening Type |
Threaded |
|
Mounting Type |
Panel Mount |
|
Contact Termination |
Crimp |
|
Protection Rating |
IP67 |
OHS-BC-1-4/10-B1-1-B Hermetic Square flange Receptacle bayonet Russian military circular connectors Technical performance
|
Contact resistance |
≤5mΩ |
|
Insulation resistance |
≥1000MΩ(in normal situation) |
|
Ambient temperature |
’-60℃~85℃ |
|
Vibration |
1-5000HZ 20g |
|
Shocking |
once 1000g, repeatedly 100g |
|
Contact diameter |
ø1.0mm |
|
Mechanical life |
250times |
|
Working time |
5000hours |

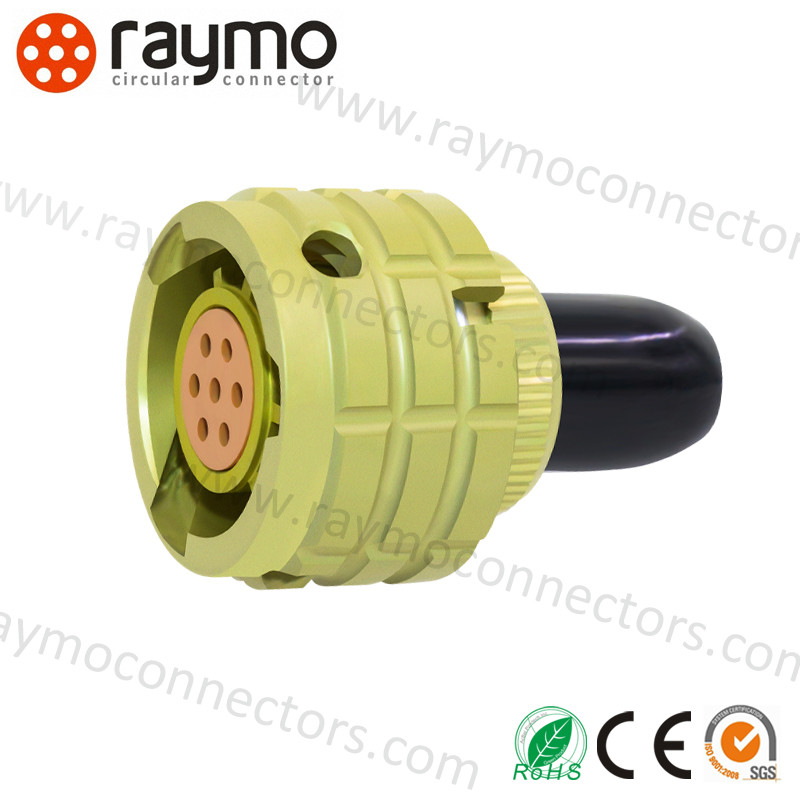

OHS-BC-1-4/10-B1-1-B Hermetic Square flange Receptacle bayonet Russian military circular connectors Pictures
OHS-BC-1-4/10-B1-1-B Hermetic Square flange Receptacle bayonet Russian military circular connectors Application
This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military
