Home ProductsJ30J ConnectorJ30J Series 21-Pin MIL-DTL-83513 Micro-D Connector Plug IP67

J30J Series 21-Pin MIL-DTL-83513 Micro-D Connector Plug IP67

J30J Series 21-Pin MIL-DTL-83513 Micro-D Connector Plug IP67
J30J Series 21-Pin MIL-DTL-83513 Micro-D Connector Plug IP67
J30J Series 21-Pin MIL-DTL-83513 Micro-D Connector Plug IP67 J30J Series 21-Pin MIL-DTL-83513 Micro-D Connector Plug IP67
Basic Information
Place of Origin: Shenzhen, Guangdong, China
Brand Name: RAYMO
Certification: RoHS, Reach, SGS, ISO:9001-2015
Model Number: J30J-21TJ
Minimum Order Quantity: 1 Piece/Pieces
Price: 2.99-14.99USD/piece
Packaging Details: PE Bag & Carton
Delivery Time: 7days
Payment Terms: Western Union,T/T,MoneyGram,D/P,D/A,MoneyGram,L/C
Supply Ability: 5000Pieces/ Week
Contact Now
Subsititute: ITT Cannon MDM Series Micro-D Connectors Standard: MIL-DTL-83513
Connector Type: Plug Contact Type: Male Pin
Number Of Positions: 21 Outer Shell: Aluminum
Highlight:

Micro-D Waterproof Power Connector

,

Waterproof Power Connector IP67

J30J Series Micro-D MIL-Spec 0.1-15 mm² Wire Section Area Waterproof Power Connector IP67
Product Specifications
Attribute Value
Substitute ITT Cannon MDM series micro-D connectors
Standard MIL-DTL-83513
Connector Type Plug
Contact Type Male Pin
Number of Positions 21
Outer shell Aluminum
Product Overview

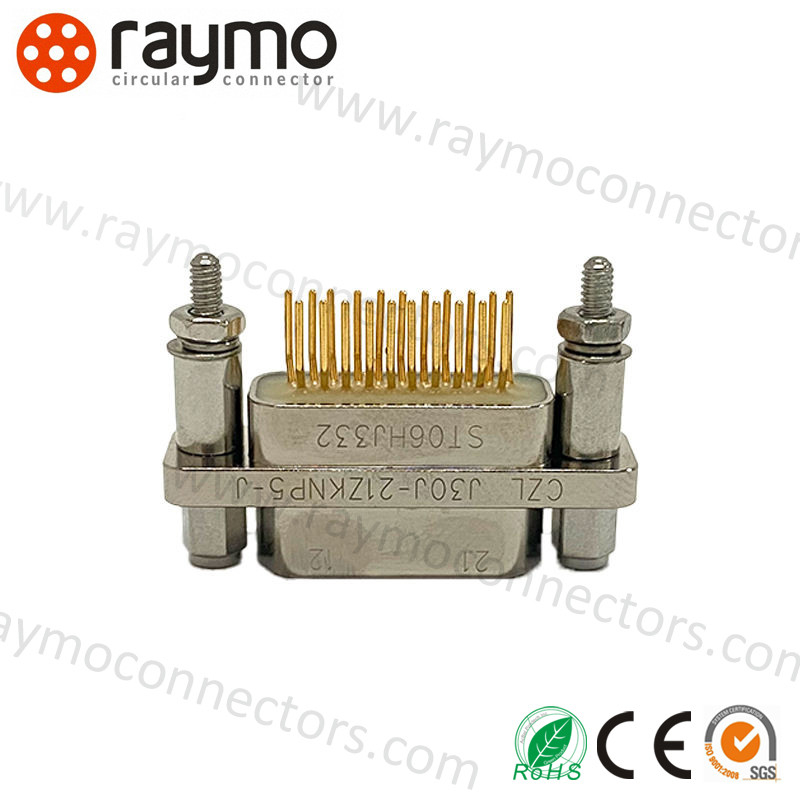

Raymo J30J series are small, high-density connectors used where standard d-sub connectors had typically been used, but size and weight are of concern. It is equivalent to ITT Cannon MDM series MIL-DTL-83513 micro-D connectors.

Key Features
  • This series is equivalent to USA MDM series

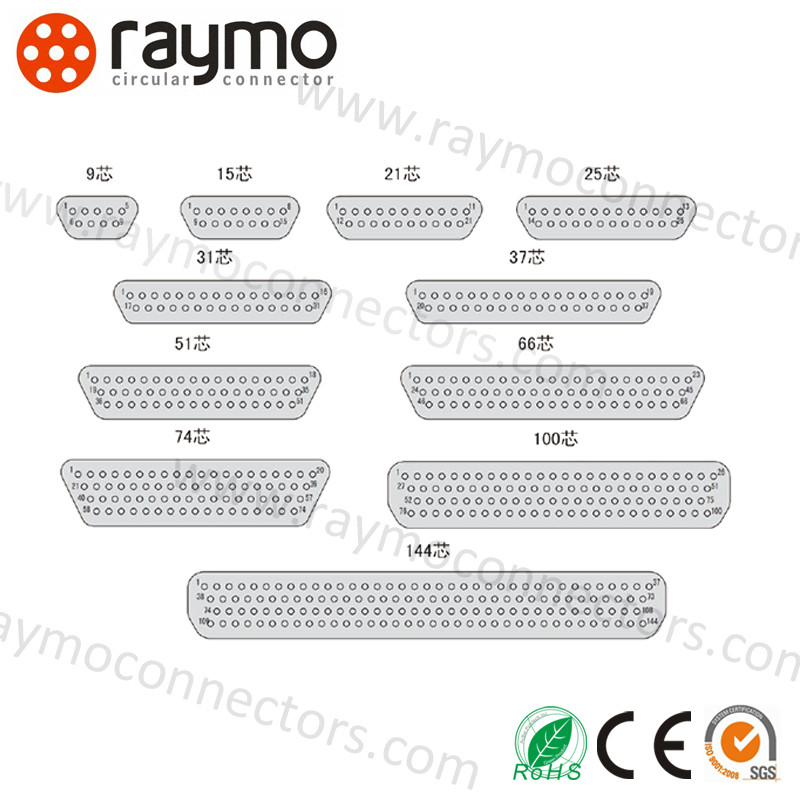

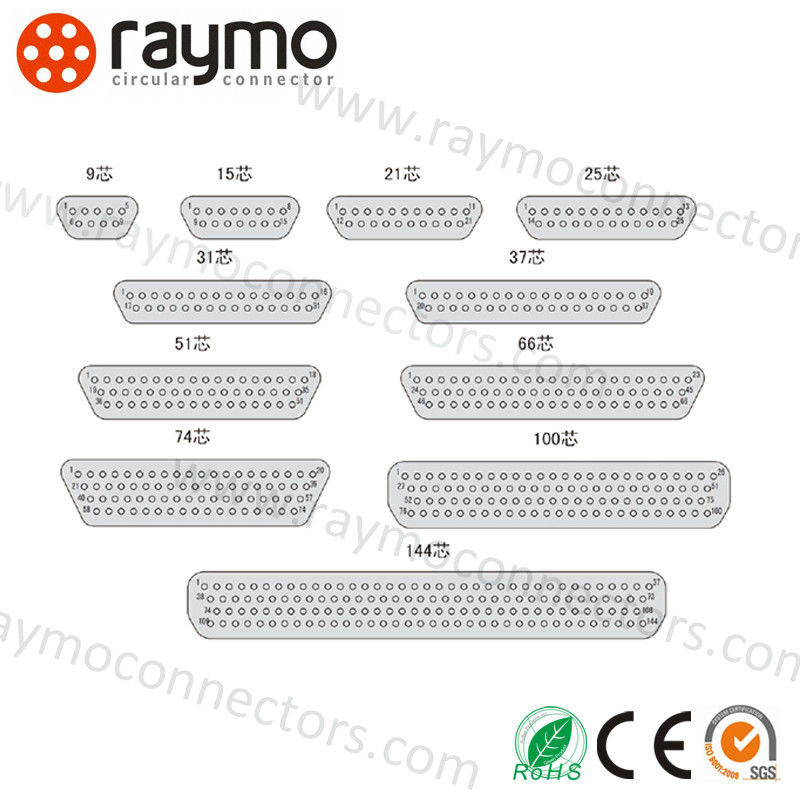

  • Nine types available: 9, 15, 21, 25, 31, 37, 51, 74, 100 positions
  • Mated wire section area: 0.1～15 mm²
  • High-density flexible pins
  • Complies with Q/Ln.J6-69-92 J30 Series Miniature Rectangular Electronic Connector Technical Condition
Detailed Parameters
Category ITT Cannon MDM series micro-D connectors
Part number J30J-21TJ
Connector Type Plug
Orientation Hermetic Square flange
Contact Type Male Pin
Number of Positions 21
Mounting Type Panel Mount
Contact Termination Solder
Protection Rating IP67
Technical Performance
Test Voltage 600 Vac at sea level
150 Vac at 70,000 feet (23410 meters)
Current Rating 3 Amp
Contact Resistance 8 milliohms maximum at 3 amps
10 milliohms maximum at 1 milliamp: ML-STD-202 Method 307
Insulation Resistance 5000 megaohms minimum at 500 Vdc
Magnetic Permeability 2.0μ (connectors less hardware)
Thermal Vacuum per NASA SP-R-0022 (space class only)
Mating Life 500 cycles minimum
Salt Spray 48 hours ML-STD-1344 Method 1001 Condition B
Product Images
J30J Series 21-Pin MIL-DTL-83513 Micro-D Connector Plug IP67 0 J30J Series 21-Pin MIL-DTL-83513 Micro-D Connector Plug IP67 1 J30J Series 21-Pin MIL-DTL-83513 Micro-D Connector Plug IP67 2
Applications
  • Avionics, radars
  • Missiles and guidance systems
  • Medical Equipment
  • Hand Held Test Equipment
  • Satellites
  • Robotics
  • Geophysical Equipment
About SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED

As a professional in design and manufacture all kinds of connectors and special cables, we have accumulated rich experience in development and production for various cables and related connector adapters including RED/Teradek Bond/ARRI Camera Cable, Canon/Sony Camera Power Cable, SDI Cable, USB Cable, Video Cable, CCD Cable.

Our products are widely used in harsh environments and applications, including industrial control devices, medical equipment, measuring and inspecting equipment, audio & visual equipment and military applications.

J30J Series 21-Pin MIL-DTL-83513 Micro-D Connector Plug IP67 3
Our Service
  • High Quality: CNC machine, professional engineer, skilful worker, responsible QC ensure our high quality products
  • OEM & ODM: OEM & ODM services are welcome
  • Sample policy: Free sample & sample order are accepted
  • Fast delivery: 3~5 working days after receiving payment for normal connectors
  • Fast Respond: within 24 hours for your inquiry and any other questions
  • After-sale Service: Follow up your shipment. Provide professional solutions for your questions
