Home ProductsJ30J ConnectorJ30J Series MIL-Spec 25 Pin Micro-D Waterproof Power Connector Plug

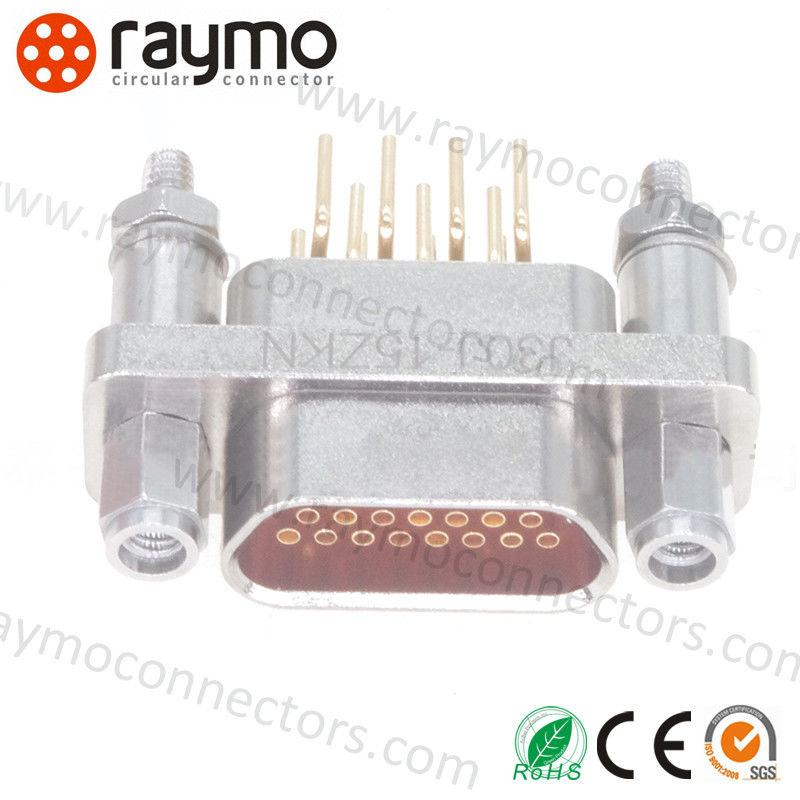

J30J Series MIL-Spec 25 Pin Micro-D Waterproof Power Connector Plug

J30J Series MIL-Spec 25 Pin Micro-D Waterproof Power Connector Plug
J30J Series MIL-Spec 25 Pin Micro-D Waterproof Power Connector Plug
J30J Series MIL-Spec 25 Pin Micro-D Waterproof Power Connector Plug J30J Series MIL-Spec 25 Pin Micro-D Waterproof Power Connector Plug
Basic Information
Place of Origin: Shenzhen, Guangdong, China
Brand Name: RAYMO
Certification: RoHS, Reach, SGS, ISO:9001-2015
Model Number: J30J-25TJ
Minimum Order Quantity: 1 Piece/Pieces
Price: 2.99-14.99USD/piece
Packaging Details: PE Bag & Carton
Delivery Time: 7days
Payment Terms: Western Union,T/T,MoneyGram,D/P,D/A,MoneyGram,L/C
Supply Ability: 5000Pieces/ Week
Contact Now
Subsititute: ITT Cannon MDM Series Micro-D Connectors Standard: MIL-DTL-83513
Connector Type: Plug Contact Type: Male Pin
Number Of Positions: 25 Sharp: D-SUB-TYPE
Highlight:

25 Pins Waterproof Power Connector

,

MDM Series Waterproof Power Connector

J30J Series Micro-D MIL-Spec USA MDM Series 25 Pins Waterproof Power Connector
Product Specifications
Substitute ITT Cannon MDM series micro-D connectors
Standard MIL-DTL-83513
Connector Type Plug
Contact Type Male Pin
Number of Positions 25
Shape D-SUB-TYPE
Product Overview
Raymo J30J series are small, high-density connectors designed for applications where standard D-sub connectors would typically be used, but size and weight are critical factors. These connectors are equivalent to ITT Cannon MDM series MIL-DTL-83513 micro-D connectors.
Key Features
  • Equivalent to USA MDM series connectors

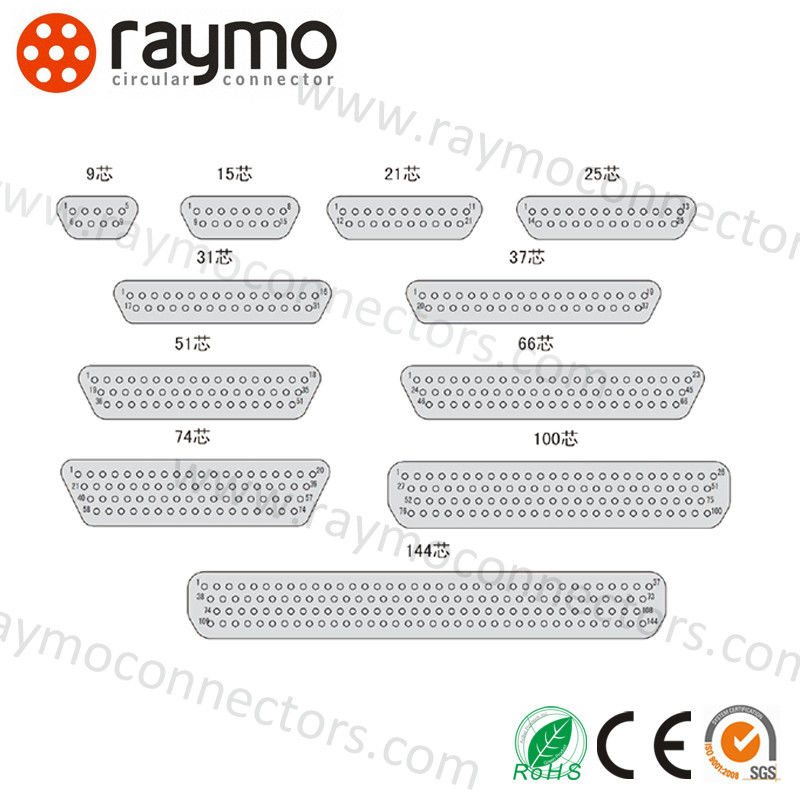

  • Available in nine configurations: 9, 15, 21, 25, 31, 37, 51, 74, and 100 pins
  • Mated wire section area: 0.1-15 mm²
  • Features high-density flexible pins
  • Locking subassemblies included with connectors (can be omitted upon request)
Technical Parameters
Category ITT Cannon MDM series micro-D connectors
Part number J30J-25TJ
Connector Type Plug
Orientation Hermetic Square flange
Contact Type Male Pin
Number of Positions 25
Mounting Type Panel Mount
Contact Termination Solder
Protection Rating IP67
Performance Specifications
Test Voltage 600 Vac at sea level
150 Vac at 70,000 feet (23410 meters)
Current Rating 3 Amp
Contact Resistance 8 milliohms maximum at 3 amps
10 milliohms maximum at 1 milliamp: ML-STD-202 Method 307
Insulation Resistance 5000 megaohms minimum at 500 Vdc
Magnetic Permeability 2.0μ (connectors less hardware)
Thermal Vacuum per NASA SP-R-0022 (space class only)
Mating Life 500 cycles minimum
Salt Spray 48 hours ML-STD-1344 Method 1001 Condition B
Product Images

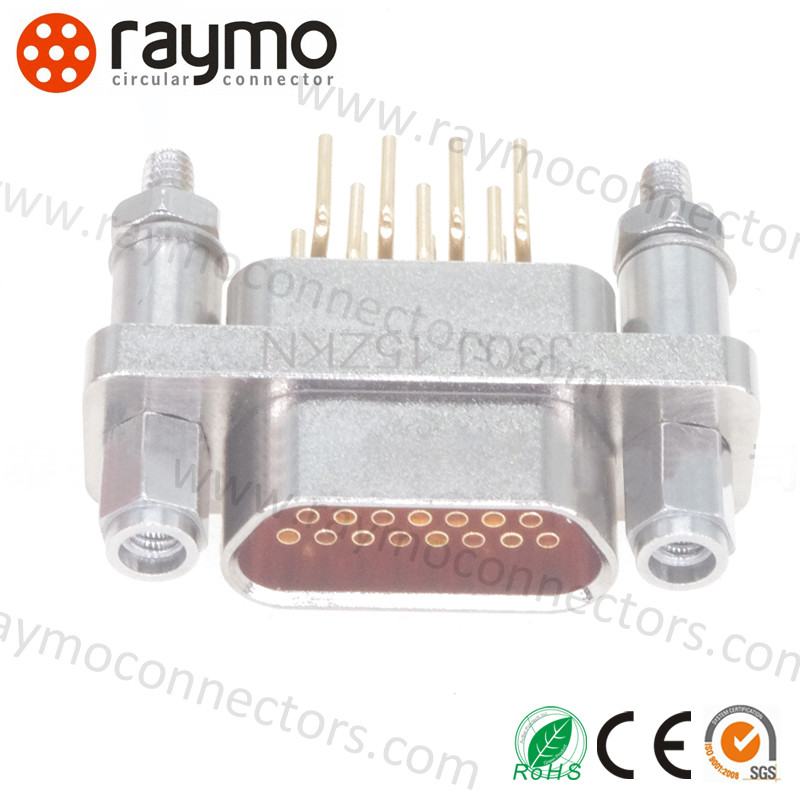

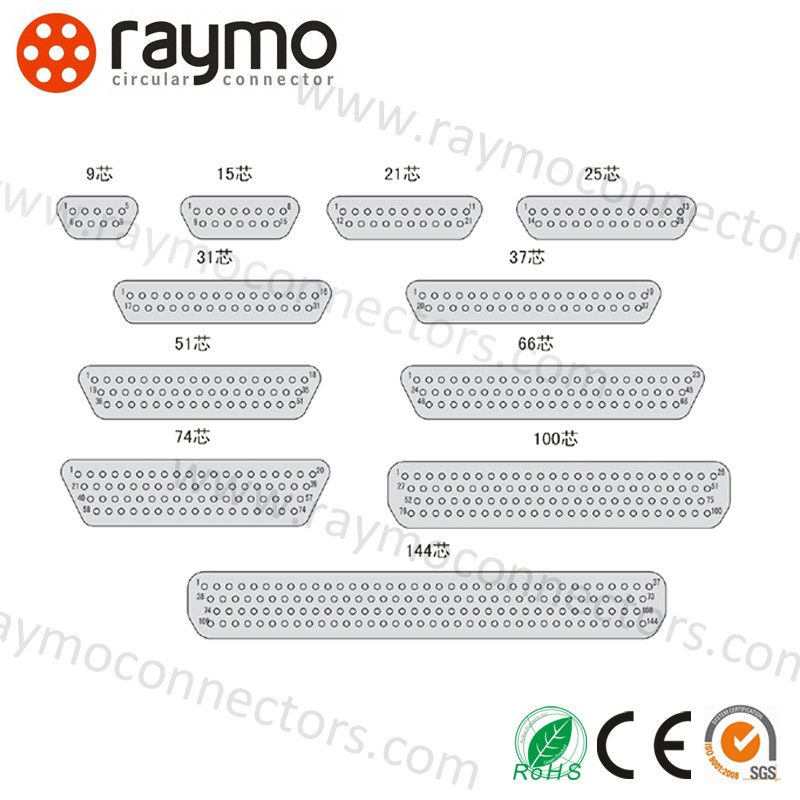

J30J Series MIL-Spec 25 Pin Micro-D Waterproof Power Connector Plug 0 J30J Series MIL-Spec 25 Pin Micro-D Waterproof Power Connector Plug 1 J30J Series MIL-Spec 25 Pin Micro-D Waterproof Power Connector Plug 2
Typical Applications
  • Avionics systems
  • Radar equipment
  • Missiles and guidance systems
  • Medical equipment
  • Bar code scanners
  • Commercial avionics
  • Navigation systems
About SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED
As a professional manufacturer specializing in the design and production of various connectors and special cables, we have accumulated extensive experience in developing and manufacturing cables and related connector adapters. Our product range includes RED/Teradek Bond/ARRI Camera Cable, Canon/Sony Camera Power Cable, SDI Cable, USB Cable, Video Cable, CCD Cable, and more.
Our products are widely used in demanding environments and applications, including industrial control devices, medical equipment, measuring and inspection equipment, audio-visual equipment, and military applications.
J30J Series MIL-Spec 25 Pin Micro-D Waterproof Power Connector Plug 3
Our Service Commitment
  • High Quality: CNC machines, professional engineers, skilled workers, and rigorous QC ensure product excellence
  • OEM & ODM: Custom manufacturing services available
  • Sample Policy: Free samples and sample orders accepted
  • Fast Delivery: 3-5 working days for standard connectors after payment
  • Responsive Support: Guaranteed response within 24 hours for all inquiries
  • After-sale Service: Shipment tracking and professional technical support
