Home ProductsJ30J ConnectorJ30J-31TJ 31 Pin MIL-DTL-83513 Micro-D Connector Plug

J30J-31TJ 31 Pin MIL-DTL-83513 Micro-D Connector Plug

J30J-31TJ 31 Pin MIL-DTL-83513 Micro-D Connector Plug
J30J-31TJ 31 Pin MIL-DTL-83513 Micro-D Connector Plug
J30J-31TJ 31 Pin MIL-DTL-83513 Micro-D Connector Plug J30J-31TJ 31 Pin MIL-DTL-83513 Micro-D Connector Plug
Basic Information
Place of Origin: Shenzhen, Guangdong, China
Brand Name: RAYMO
Certification: RoHS, Reach, SGS, ISO:9001-2015
Model Number: J30J-31TJ
Minimum Order Quantity: 1 Piece/Pieces
Price: 2.99-14.99USD/piece
Packaging Details: PE Bag & Carton
Delivery Time: 7days
Payment Terms: Western Union,T/T,MoneyGram,D/P,D/A,MoneyGram,L/C
Supply Ability: 5000Pieces/ Week
Contact Now
Subsititute: ITT Cannon MDM Series Micro-D Connectors Standard: MIL-DTL-83513
Connector Type: Plug Contact Type: Male Pin
Number Of Positions: 31 Series: J30J Series
Highlight:

J30J-31TJ

,

31 Pins Micro-D Connectors

,

MIL-DTL-83513 Miniature Connector

J30J-31TJ 31 Pins J30J Series Micro-D Connectors MIL-DTL-83513 Miniature Connector
Product Specifications
Substitute ITT Cannon MDM series micro-D connectors
Standard MIL-DTL-83513
Connector Type Plug
Contact Type Male Pin
Number of Positions 31
Series J30J series
Product Description

The Raymo J30J series features a durable yet lightweight aluminum shell with a high-reliability twist pin contact system and Pos-Aine alignment. This connector is equivalent to ITT Cannon MDM series MIL-DTL-83513 micro-D connectors.

Key Features
  • Equivalent to USA MDM series connectors

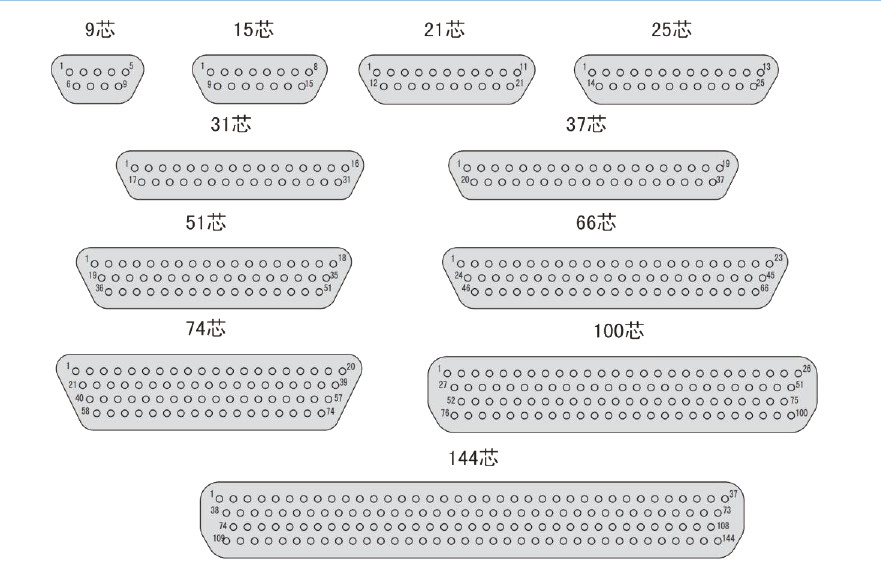

  • Available in nine configurations: 9, 15, 21, 25, 31, 37, 51, 74, and 100 positions
  • Compatible with wire section area: 0.1-15 mm²
  • High-density flexible pin design
  • Locking subassemblies included (specify if not required)
Technical Parameters
Category ITT Cannon MDM series micro-D connectors
Part Number J30J-31TJ
Orientation Hermetic Square flange
Mounting Type Panel Mount
Contact Termination Solder
Protection Rating IP67
Performance Specifications
Test Voltage 600 Vac at sea level
150 Vac at 70,000 feet (23410 meters)
Current Rating 3 Amps
Contact Resistance 8 milliohms maximum at 3 amps
10 milliohms maximum at 1 milliamp: ML-STD-202 Method 307
Insulation Resistance 5000 megaohms minimum at 500 Vdc
Magnetic Permeability 2.0μ (connectors less hardware)
Thermal Vacuum per NASA SP-R-0022 (space class only)
Mating Life 500 cycles minimum
Salt Spray 48 hours ML-STD-1344 Method 1001 Condition B
Product Images
J30J-31TJ 31 Pin MIL-DTL-83513 Micro-D Connector Plug 0 J30J-31TJ 31 Pin MIL-DTL-83513 Micro-D Connector Plug 1 J30J-31TJ 31 Pin MIL-DTL-83513 Micro-D Connector Plug 2
Applications
  • Navigation systems
  • Research centers
  • Medical Equipment
  • Hand Held Test Equipment
  • Satellites
  • Robotics
  • Geophysical Equipment
  • Bar Code Scanners
