Home ProductsCircular Push Pull ConnectorsRAYMO 3B Series Chrome Plated Self Locking Connector

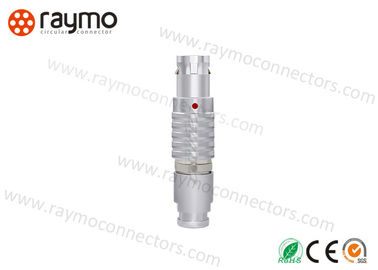

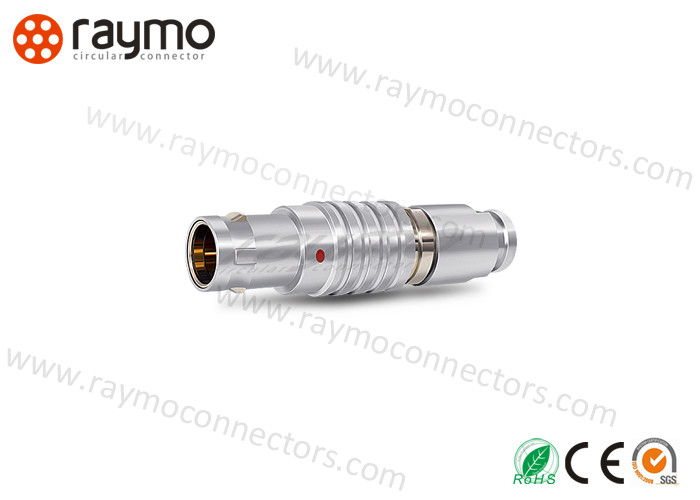

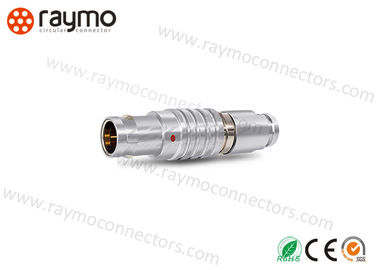

RAYMO 3B Series Chrome Plated Self Locking Connector

RAYMO 3B Series Chrome Plated Self Locking Connector
RAYMO 3B Series Chrome Plated Self Locking Connector RAYMO 3B Series Chrome Plated Self Locking Connector RAYMO 3B Series Chrome Plated Self Locking Connector RAYMO 3B Series Chrome Plated Self Locking Connector RAYMO 3B Series Chrome Plated Self Locking Connector
Basic Information
Place of Origin: Shenzhen, China
Brand Name: RAYMO
Certification: CE ROHS2.0 REACH SGS ISO9001:2015
Model Number: FGG.3B.332.CLAD82Z
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: 150pcs/ctn
Delivery Time: 2-3 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000PCS PER WEEK
Contact Now
Prct Name: Push Pull Self Locking Connector Model: FGG.3B
Available Shell: 00B,0B,1B,2B,3B,4B,5B Contact No: 2,3,4,5,6,.7,8,9,10,12,14,16,21,26,30,32
Insulator Material: PPS, PEEK Housing Material: Brass With Chrome Plated
Contact Material: Brass With Gold Plated
Highlight:

electronic cable connectors

,

cable connector plug



RAYMO 3B series 32pin chrome plated Push Pull self locking Connector FGG.3B.332 male cable plug

FGG.3B LEMO Equivalent connector,  cable circular push pull connector



RM-FGG-3BC Can be 100% compatible with FGG.3B LEMO CONNECTOR but much cheaper with faster delivery.



Raymo electronics technology ltd is a professional push pull connector manufacturer intergrating connector researching, designing and development,prction and sales !. Raymo offer you various range of push pull circular connectors and cable assembly.You will find raymo connectors in widely range of military denfence, medical, Test and measurement,High Speed Camera,Submarine industry.



Part no details.



Raymo Part No. Original LEMO Part No. Item Description
RM-FGG-3BC-332-JS82Z FGG.3B.332.CLAD82Z 3B series cable plug, multipole 32pin , male contact, 82 cable collet for diameter 7.2-8.2mm cable , nut for a bend relief, natural chrome plated, key G,



Available shell size and contacts



Series Shell Size Contacts No. with solder & PCB type





RM-B

IP50

 00B 2,3,4
0B 2,3,4,5,6,7,9
1B 2,3,4,5,6,7,8,10,12,14,16
2B 2,3,4,5,6,7,8,10,12,14,16,18,19,26
3B 3,4,6,7,8,10,12,14,16,18,21,30,32





Specifcation



Technical Characteristics
Temperature Range - 65° C, +200° C Resistance to vibrations 15 g [10 Hz - 2000 Hz]
Shell Material Brass with chrome plated Humidity up to 95% at 60° C/140F
Shock Resistance 100 g [ 6 ms] Salt spray corrosion test >144hr
Climatical Category 50/175/21 Shielding (min) > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating IP 68 Endurance(shell) 5000 mating cycles



FGG shell dimenions

RAYMO 3B Series Chrome Plated Self Locking Connector 0



RAYMO Connectors advantages
  1. Cheap price, fast delivery,save your cost.
  2. Free samples.
  3. Easy mating, can be blind-mated guiding mechanism ensures precise alignment.
  4. Increased safety and user friendliness mechanical and color coding prevent misconnection.
  5. Convenient grip even with gloves circular connectors with ribbed housing profile.
  6. Increased equipment life span guiding mechanism optimally protects the contacts.
  7. Robust and shock resistant designs ideal for equipment used in the field.
  8. Long prct durability 5,000 mating cycles guaranteed.
FAQ
  1. Can I order a small list ?, yes, you can, 1 piece is ok.
  2. What quote do you offer? EXW, FOB, CIF and others ways according the your needs.
  3. How transport? Sea Freight, Air Freight and others Express Delivery ways for you.
  4. What is the quality of your prcts guarantee? We have passed ISO9001:2015 Quality Management System Certification, CQM Quality Management System Certification and IQNet Quality Management System Certification, If the quality doesn't accord the standard, you can exchange the goods for free.
  5. Do you have after-sales service? Certainly,you can contact us at any time.

Get a price, lead time, datasheet , NOW !
