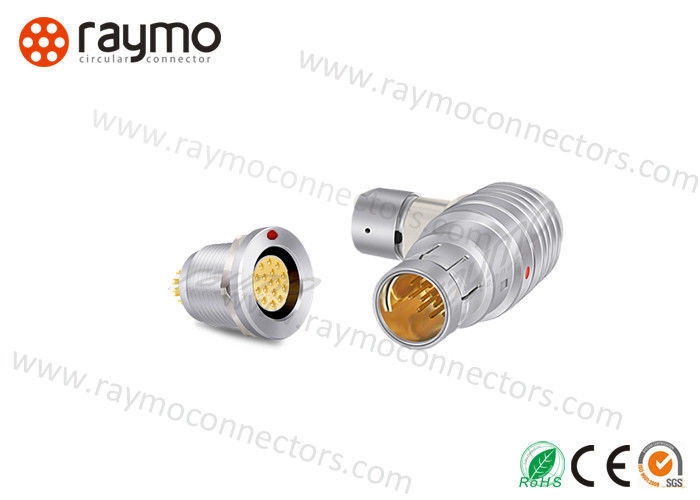

EGG ECG EPG EXG Panel Mount Circular Connector Lemo Socket

EGG ECG EPG EXG Panel Mount Circular Connector Lemo Socket
EGG ECG EPG EXG Panel Mount Circular Connector Lemo Socket EGG ECG EPG EXG Panel Mount Circular Connector Lemo Socket
Basic Information
Place of Origin: Shenzhen, China
Brand Name: RAYMO
Certification: RoHS2.0, ISO:9001-2015, CE , SGS, REACH
Model Number: EGG ECG EPG EXG
Minimum Order Quantity: 1piece
Price: Negotiable
Packaging Details: 100pc/CTN
Delivery Time: 5-7 working days
Payment Terms: Western Union, T/T, D/P, D/A, L/C, MoneyGram
Supply Ability: 5000pcs/week
Contact Now
Prct Name: Quick Release Connector Type: EGG ECG EPG EXG Socket
Shell Size: 10mm Contact No.: 2-9 Pins
Terminal: Solder/printed/crimp IP Ranking: IP50
Highlight:

EXG Panel Mount Circular Connector

,

EPG Panel Mount Circular Connector

,

EGG Lemo Socket Circular Connector

EGG ECG EPG EXG quick release lemo alternative socket, panel mount circular connector

100% compatible with LEMO original EGG ECG EPG EXG

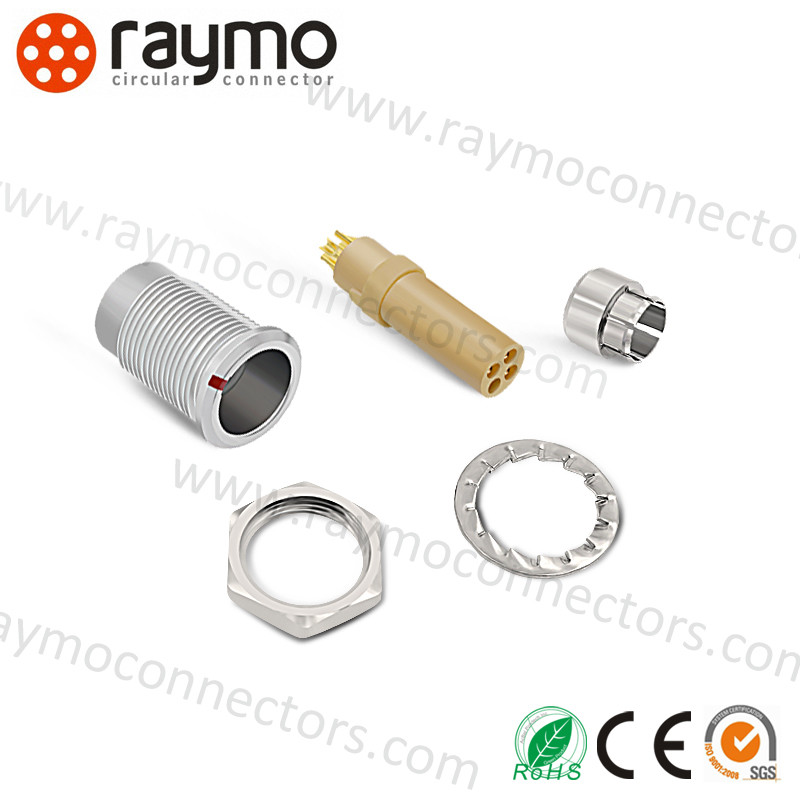

ECG.0B.302.CLN = RM-ECG-0BC-302-KP .Fixed receptacle with two screw nuts, nut fixing, with key(G), 0B series, multipole 2 contacts, outer shell in natural chrome natural-plated brass, PPS insulator, female PCB contacts, IP50.



We are specilized in many kinds of alternative connector such as:



RM-B series metal circular push pull connector with below features:



  • Secure high performance push-pull self-locking system
  • High pin density contributing to equipment miniaturization
  • Alignment Key and Polarized Keying System to avoid cross-interface
  • 360° EMC shielding
  • Robust and shock resistant designs
  • Functional in a wide temperature range from -50°C to +250°C
  • Available solder, PCB and right angle PCB contact



Technical Characteristics
Temperature Range
-55°C, +250°C
Resistance to vibrations
15 g [10 Hz - 2000 Hz]
Shock Resistance
100 g [ 6 ms]
Salt spray corrosion test
>96hrs
Climatical Category
50/175/21
Humidity
Up to 95% at 60°C
IP Rating
IP50
Certifications
ISO9001/ CE/ ROHS2.0/ SGS



EGG ECG EPG EXG Panel Mount Circular Connector Lemo Socket 0
LEMO B -1P 50 00 2 3 4 　 　 　 　 　 　 　 　 　 　 　
0B 2 3 4 5 6 7 9 　 　 　 　 　 　 　
1B 2 3 4 5 6 7 8 10 12 14 16 　 　 　
2B 2 3 4 5 6 7 8 10 12 14 16 19 26 　
3B 3 4 7 8 10 12 14 16 18 21 30 　 　 　



0(G) 30(A) 60(B) 45(J) 　 　 　 　 　 　 　 　
0(G) 30(A) 60(B) 90(.C) 135(D) 145(E) 155(F) 　 45(J) 70(K) 80(L) 110(M)
0(G) 30(A) 60(B) 90(.C) 135(D) 145(E) 155(F) 150(I) 45(J) 70(K) 80(L) 　
0(G) 30(A) 45(B) 60(.C) 95(D) 120(E) 145(F) 　 37.5(J) 52.5(K) 70(L) 　
0(G) 30(A) 45(B) 60(.C) 95(D) 120(E) 145(F) 　 37.5(J) 52.5(K) 70(L) 　
Applications
RAYMO connectors have been widely used in the areas of telecommunication, electronics, medical equipments, aviation, audio-video, petroleum, motor and power industries, electrical signal connection, IC control systems, test and measurement instruments, ect.
