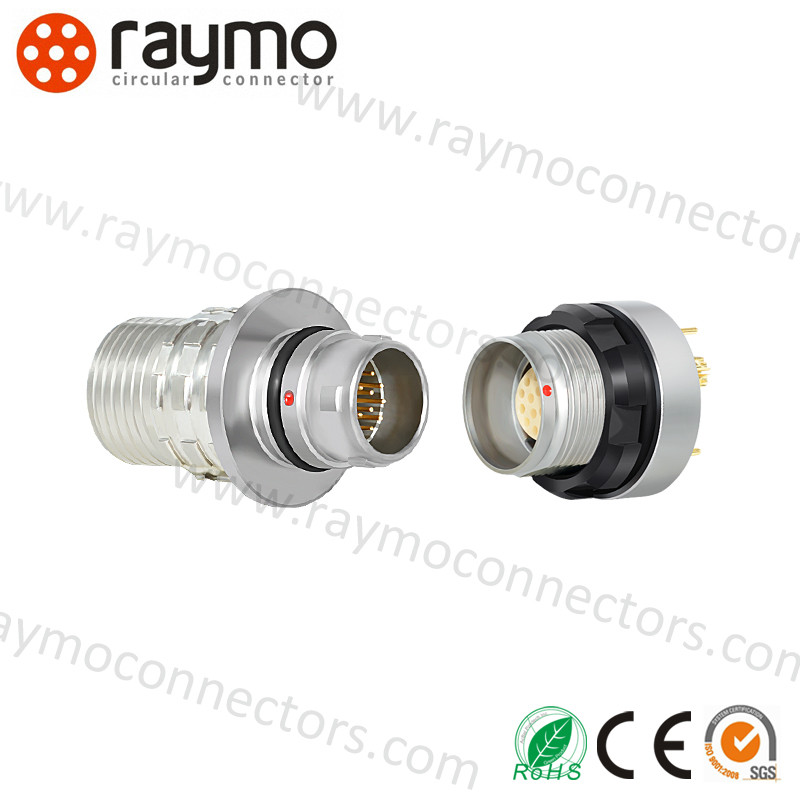

Prct intrce for alternative Circular Push Pull break-away AMC Connectors
Raymo G series is compatible to AMC High-Density series connector, which is a rugged, ultra-miniature connector solution for extreme environments.
The connector is available in two locking styles standard. Break-Away connectors can be easily disconnected by tugging on the cable, and are ideal whenever the cable is a potential snag hazard. Screw-Lock connectors remain connected despite environmental conditions, including tension on the cable, shock and vibration.
Prct details for alternative Circular Push Pull break-away AMC Connectors
| Prct attribute |
Attribute Value |
| Manufacturer |
RAYMO |
| Prct name |
AMC HIGH-DENSITY circular Push Pull Connectors |
| Connector type |
Straight Plug |
| Contact Gender |
Pin(Male) |
| Number of contacts |
12 contact |
| Mounting Style |
Cable |
| Termination Style |
Solder |
| Current Rating |
1-5A |
| IP Rating |
IP68 |
| Series |
0G |
| Shell Plating |
Chrome |
| Shell Material |
Metal |
| Wire Gauge |
28AWG |
| Certifications |
ISO9001/ CE/ ROHS2.0/ SGS |
| Temperature Range |
-55°C, +125°C |
| Resistance to vibrations |
15 g [10 Hz - 2000 Hz] |
| Shock Resistance |
100 g [ 6 ms] |
| Salt spray corrosion test |
>96hrs |
| Climatical Category |
50/175/21 |
| Humidity |
Up to 95% at 60°C |
| |
|
FEATURES for alternative Circular Push Pull break-away AMC Connectors
• High contact-density connector
• Rugged, robust housing with non-reflective
surface plating
• Submersible, watertight protection classes
IP68 / IP69 / IP6K8 / IP6K9K
• Break-Away for maximum safety
• Mechanical coding with color-coded visual
indicator
APPLICATIONS for alternative Circular Push Pull break-away AMC Connectors
• Tactical radios and accessories
• Ruggedized computers and tablets
• Power supply
• Unmanned systems
• Optical devices
• Software defined radios
• Defence and security systems
Internal components showing for alternative Circular Push Pull break-away AMC Connectors
Certificates for alternative AMC break-away Circular Push Pull Connectors
CE
RoHS
ISO:9001-2015
SGS
REACH
FAQ
-Can you prce according to the samples?
A: Yes, we can prce by your samples or technical drawings. We can build the molds and fixtures.
-How about your delivery time?
A: Generally, it will take 5~7 working days after receiving your advance payment.
-Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
-Does your company a professional manufacturer?
A: Yes, we specialized in prcing circular push pull self-latching connectors and cable assembly since 2010.Our factory is SGS audited manufacturer.
-Do you have MOQ?
A: Standard prcts are no MOQ limited, small order is accepted, all is depend on customer real needs.
