Name: RM - S Series Half Moon Connector Quick Lock Automotive Application Military Grade
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: RM-FFA-1SC-304JS52Z
Price: 12.30 USD
Availability: InStock

RM - S Series Half Moon Connector Quick Lock Automotive Application Military Grade

Basic Information

Place of Origin:	SHENZHEN, Guangdong
Brand Name:	RAYMO
Certification:	ISO9001:2015,CE, SGS,, ROHS2.0, REACH,
Model Number:	RM-FFA-1SC-304JS52Z

Minimum Order Quantity:	1PC
Price:	Negotiable
Packaging Details:	100pcs/ctn
Delivery Time:	2-7 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50000pcs per week

Contact Now

Locking Type:

Half-moon Push Pull

Shell Size:

00, 0S, 1S,2S

Application:

Military

Gender:

Male, Female

Insulator Material:

PPS, PEEK

Highlight:

cable elbow connector

cable to cable connector

Prct Description

LEMO Half moon type Push Pull electrical Metal Connector for Military connector

Model type have FFA, FFE, FFF, ERA, ERN, ERT,EPE

Main Feature

Main Feature	Self-latching push-pull system
	High packing density
	Low weight
	Aesthetically pleasing appearance
	Rugged construction
	Reliable performances
	Small size
	Ease of use
	Wide choice to suit application

Technical specifications

Pulling and inserting times	＞5000 times
Humidity	Maximum humidity up to 95% at a temperature of 60 °
Temperature range	- 65° C, +200° C
Vibration	15 g [10 Hz - 2000 Hz]
Shock Resistance	100 g [ 6 ms]
Salt Cpray Corrosion test	>96hr
Protention Level	IP 68
Connector Type	Socket, female pins
Number of positions	1-32pin
Contact Terminal	Solder
Fastensing Type	Push-pull
Shell Material	Brass
Shell Finish	Chrome Plated
Shell Colour	Silver, Black
Contact Material	Brass
Contact finish	Gold
Insert Material	PPS, PEEK

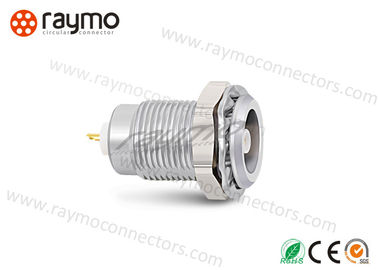

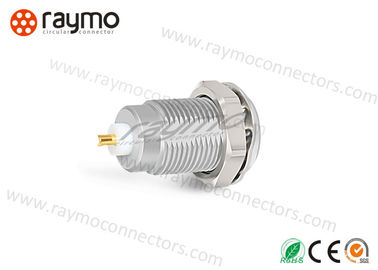

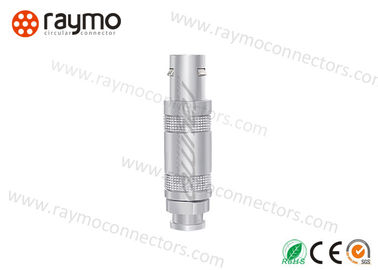

Prct Photo:

RM - S Series Half Moon Connector Quick Lock Automotive Application Military Grade 0

RM-S series Prct Quick Details:

RM-S Series half moon Short Staright Cable Plug
Shell size	00,0S,1S,2S	Shell model	Straight plug FFA
Gender	Male, Female	Contact No.	1,2,3,4,5,6
MOQ	1pc	Free Sample	available
Endurance(shell)	5000 mating cycles	IP Level	IP50

Push Pull Outdoor Circular Waterproof Connector Application:

Military
Communications
Industrial Control
Information Systems
Machines
Test and Measurement
Automotive
Audio-video
Aviation
Data Acquisition
Data Transfer Equipment
Mle Power
Sensor Systems Instrumentation,
Analysis Systems
Medical Equipments

FAQ:

1.What is your payment terms?
Raymo: 100% T/T deposit when customer place order.

2. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them beforeshipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.

3. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing circular push pull connectors and cable assembly since 2010.
Our factory is SGS audited manufacture and worked on www.alibaba.com more than 4 years.
4. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
5. Free sample :
RAYMO: Available. Any needs, please contact us:
6. What about the delivery time?
Raymo: sample for 1-2 working days, mass prction for 5-10 working days.
