SS1031 19 Way Waterproof Electrical Connectors Alternative Fischers IP68 Protective

Basic Information
Place of Origin: Shenzhen, China
Brand Name: RAYMO
Certification: CE ROHS2.0 ISO SGS
Model Number: RM-SS-AF1C-319JS- 62
Minimum Order Quantity: 10 Piece/Pieces
Price: Negotiable
Packaging Details: Plastic Bag & Carton
Supply Ability: 5000 Piece/Pieces per Week
Shell Model: SS Type Cable Plug Shell Size: 0F/102, 1F/103, AF/1031, 2F/104
Type: ADAPTER Application: Audio & Video
Gender: Male Housing Material: Brass With Chrome Plated
Color: Natural / Black Chrome Contact No.: 2 ,3 ,4, 5, 6, 7,,,,19pins
Connector Type: Solder Contacts Cable Assembled Or Not: Yes
Company: Manufacture/factory Certificate: ISO9001/CE/ROHS/SGS
IP Ranking: IP68 Port: SHENZHEN
Highlight:

waterproof wire connectors

,

waterproof electrical connectors

Prction details:




RM-SS-AF1C-P19JS-062 = SS 1031 A019 - 130+

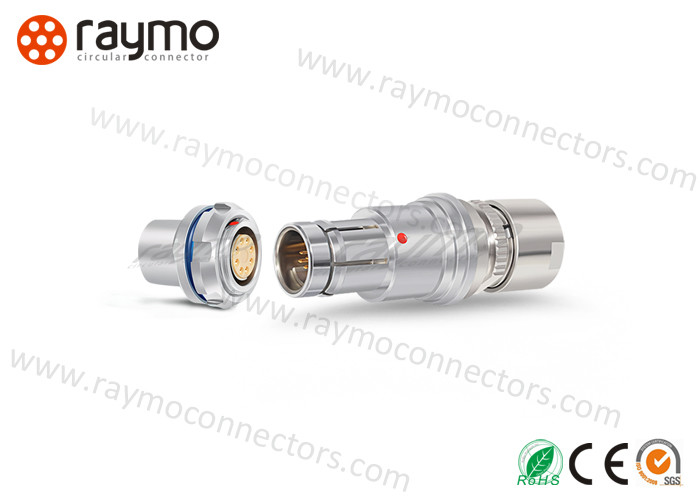

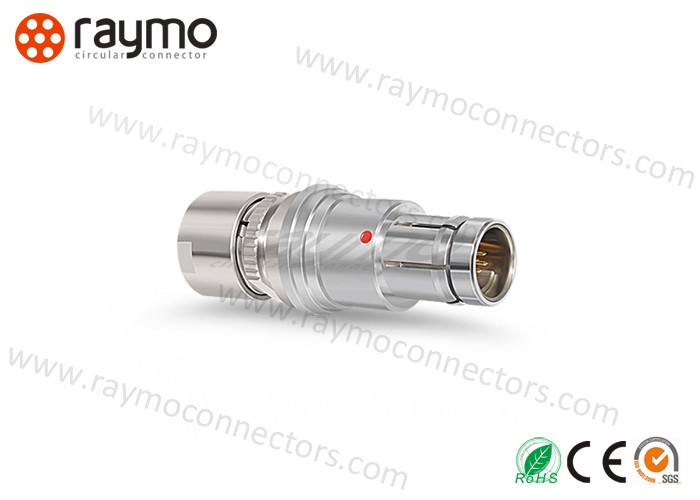

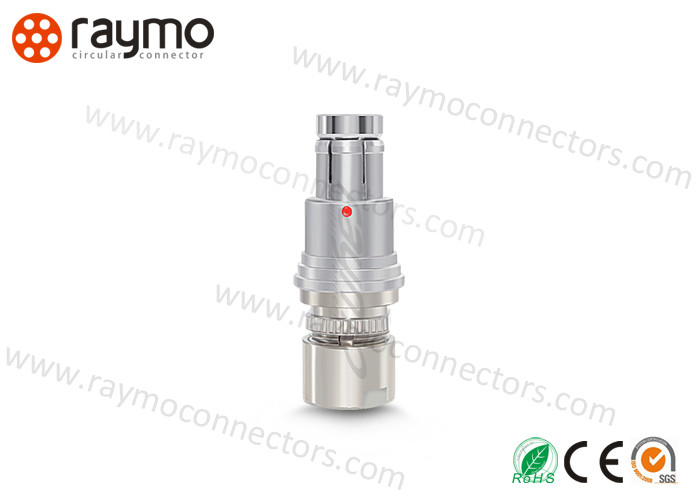

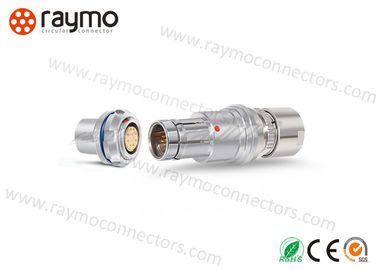

waterproof push pull connector male plug , SS short plug,  Key code 1, 1031series, 19 pin , male solder contacts, Natural or Black chrome-plated color housing.
Shell size: AF/1031
Color : Natural chrome / black chrome
Certifications: CE, RoHS, ISO9001:2015
Technical Characteristics
Endurance
> 5000 cycles
Shock resistance
100 g, 6 ms
Humidity
up to 95% at 60° C
Salt spray corrosion test
> 96h
Temperature range
- 55° C, +250° C
Protection index (mated)
IP68
Resistance to vibration
10-2000 Hz, 15 g
Climatical category
55/175/21
Shielding efficiency
at 10 MHz, > 75 dB
at 1 GHz,  > 40 dB
Certifications
ISO9001/CE/ROHS/SGS


Applications

RAYMO’s high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor, Sensor Systems Instrumentation, Analysis Application.


RAYMO is a manufactuer that:



• Focus on manufacturing & exporting metal and plastic circular push pull connectors, cable assembly.
• Can be 100% compatible with original LEMOS • FISCHERS • S • HIROSES • BINDERS •Military 38999
• Series has RM-B, RM-K, RM-S, RM-F,RM-E,RM-HR10A, RM-P, RM-M4, RM-M12, RM-M16,RM-U,RM-V BNC, B680,B423 , 38999, 26482
• CO, Form A, Form E for customer clearance
• CE, ROHS, ISO:90001-2015, SGS Audited manufacturer
• All the items can work normally after 5000times mating



Packing & Delivery

300pcs per paper box, and 8paper box into a carton (39*30*23mm)
Delivery courier options: DHL, TNT, UPS, FEDEX, SF, EMS, POST
SS1031 19 Way Waterproof Electrical Connectors Alternative Fischers IP68 Protective 0

Certifications and custmer feedback

SS1031 19 Way Waterproof Electrical Connectors Alternative Fischers IP68 Protective 1

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown cartons. If you have legally registered patent,
     we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 100% or Paypal are both OK. But If your order is big, you can T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the prcts and packages before you pay the balance.

Q3. What is your terms of delivery?
A: FOB SHENZHEN

Q4. How about your delivery time?
A: Generally, it will take 5~7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you prce according to the samples?
A: Yes, we can prce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.



PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
