| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE ROHS2.0 ISO9001:2015 REACH SGS |

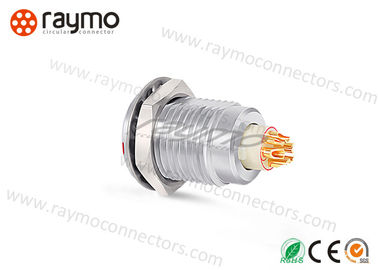

| Model Number: | RM-EGG-3BC-316 |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiable |
| Packaging Details: | 300pcs/ctn |
| Delivery Time: | 1-7working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000PCS PER WEEK |
| Keywords: | Push Pull | Shell Size: | 00B,0B,1B,2B,3B,4B,5B |
|---|---|---|---|
| Contact No: | 2,3,4,5,6,.7,8,9,10,12,14,16,21,26,30,32 | IP Level: | IP50 |
| Insulator Material: | PPS, PEEK | Material: | Natural/black Chrome Plated Brass |
| Temperature: | - 80Celsius Degree~ +350Celsius Degree, | Endurance: | >5000times Cycle |
| Highlight: | electronics component connectors,cable connector plug |
||
|
Prction Series
|
B series
|
Model
|
B series FGG straight plug
|
|
Compability
|
100% compatible with original connector
|
Endurance
|
>5000 cycle
|
|
Shell Material
|
Brass with pearl-chrome/black-chrome
|
Temperature range
|
-55°C, +250°C
|
|
Shell Size
|
00,0B,1B,2B,3B
|
Humidity (max)
|
<=95% [at 60 deg C /140 F]
|
|
Contact Material
|
Brass(Gold plated)
|
Vibration
|
15 g [10 Hz - 2000 Hz]
|
|
Contact No.
|
2-32 pins
|
Shock Resistance
|
100 g [ 6 ms]
|
|
Gendar
|
Male / female
|
Salt Spray Corrosion
|
>96 hr
|
|
Contact type
|
For solder/straight PCB/90° PCB
|
Climatical Category
|
55/175/21
|
|
Insulator Material
|
PPS
|
Shielding (min)
|
75 dB (10 MHz)
40 dB (1 GHz) |
|
Keying
|
1 key(G) & 2 key with different degree
|
IP Rating
|
IP 50
|
|
Certificate
|
CE/RoHs/Reach/ISO9001/SGS
|
MOQ
|
1 pcs
|
| Shell size | Contacts no. ( Both with Solder & PCB type ) | ||||||||||||||
| 00 | 2 | 3 | 4 | ||||||||||||
| 0B | 2 | 3 | 4 | 5 | 6 | 7 | 9 | ||||||||
| 1B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | ||||
| 2B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 | |||
| 3B | 3 | 4 | 6 | 8/(6+2) | 9(8+1) | 10 | 12 | 14(13+1) | 14 | 16 | 18 | 21 | 26 | 30 | 32 |
| 4B | 7 | 10 | 24 | ||||||||||||
RAYMO is a manufacturer that:
• Focus on manufacturing & exporting metal and plastic circular connectors, cable assembly.
• Can be 100% compatible with original LEM0S • FISCHERS • S • HIROSES • BINDERS •Military 38999
• Series has RM-B, RM-K, RM-S, RM-F,RM-E,RM-HR10A, RM-P, RM-M4, RM-M12, RM-M16,RM-U,RM-V BNC, B680,B423 , 38999, 26482
• OEM are acceptable
• CO, Form A, Form E for customer clearance
• CE, ROHS, ISO:90001, SGS Audited manufacturer
• All the items can work normally after 5000 times mating
With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solution to meet customer's real needs in his field.
1. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
2. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing Circular Connectors and cable assembly since 2010.
Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
3. Free sample?
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5.What is your payment terms?
Raymo: 100% T/T deposit when customer place order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them before shipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
