Name: B Series Push Pull Circular Connectors Egg Ecg Hgg Hhg
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: EGG.0B.304.CLN
Price: 12.30 USD
Availability: InStock

SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented circular push pull connector and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers

RAYMO P/N	Lemo P/N	P/N
RM-EGG-0BC-302-KN	EGG.0B.302.CLN	G10L0C-P02

B series connector Lemo push pull circular connectors EGG ECG HGG HHG EGG.0B.302.CLN

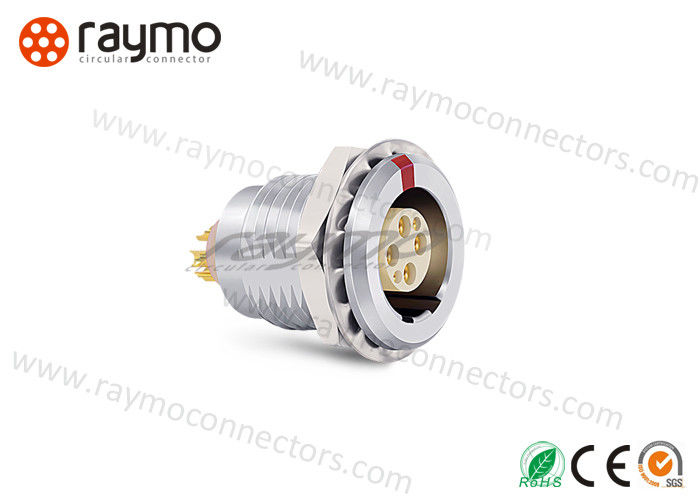

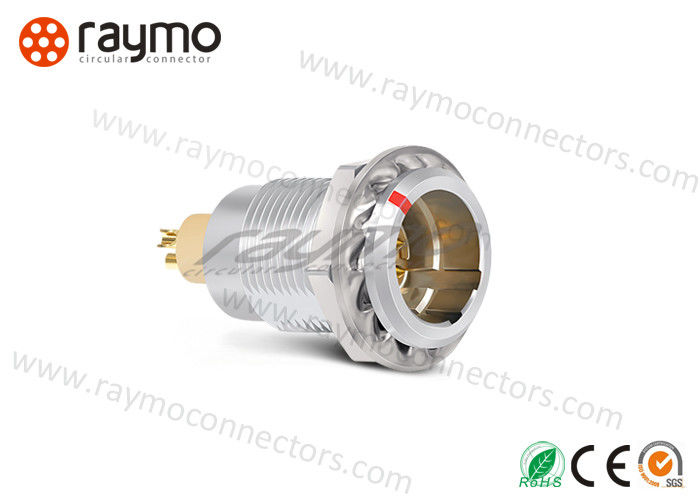

Description: 0B 2pins circular push pull connectors,fixed receptacle,STRAIGHT PCB contacts.

alternative with LEMO B EGG and L G1series.

RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application

Main Features

100% compatible with LEMO/

security of the Push-Pull self-latching system

multipole types 2 to 32 contacts

solder/ print contacts (straight or elbow)

multiple key options to avoid cross mating,such us 30, 45, 60, 90, 135

high packing density for space savings

5000 times push pull

Technical Characteristics
Temperature Range	- 65° C, +200° C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shell Material	Brass with chrome plated	Humidity	up to 95% at 60° C/140F
Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>144hr
Climatical Category	50/175/21	Shielding (min)	> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
IP Rating	IP50	Endurance(shell)	5000 mating cycles

Shell size	Contacts no. ( Both with Solder & PCB type )
Shell size	Contacts no. ( Both with Solder & PCB type )
00	2	3	4
0B	2	3	4	5	6	7	9
1B	2	3	4	5	6	7	8	10	12	14	16
2B	2	3	4	5	6	7	8	10	12	14	16	19
3B	3	4	6	8/(6+2)	9(8+1)	10	12	14(13+1)	14	16	18	21	26	30	32
4B	7	10	24

B Series Push Pull Circular Connectors Egg Ecg Hgg Hhg 0

B Series Push Pull Circular Connectors Egg Ecg Hgg Hhg 1

RFQ:

1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing circular connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample :
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5. What is your payment terms?
Raymo: 100% T/T deposit when customer place order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory
has instruments to tested them before shipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!

Tag:

Place of Origin:	SHENZHEN, CHINA
Brand Name:	RAYMO
Certification:	REACH, SGS, RoHS2.0, ISO:9001-2015, CE
Model Number:	EGG.0B.304.CLN

Minimum Order Quantity:	5 Piece/Pieces
Price:	Negotiable
Packaging Details:	Plastic Bag & Carton
Delivery Time:	5-7wds
Payment Terms:	Western Union, L/C, D/A, D/P, T/T
Supply Ability:	5000Pieces/ Week

Contact No.:	2,3,4pins	Insulator:	PPS/PEEK
Type:	LEMO/ Connector	Series:	Circular Push Pull Connectors
Surface Treatment:	Black/natural Chrome Plated	Application:	Data Acquisition
IP Ranking:	IP50	Endurance:	5000 Times Push Pull
Highlight:	pcb board connector , right angle pcb connector
