| Place of Origin: | SHENZHEN,CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE ROHS ISO SGS |
| Model Number: | PAG.M0.2GLAC39G |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | Plastic Bag & Carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T , MoneyGram |
| Supply Ability: | 5000Pieces/ Week |

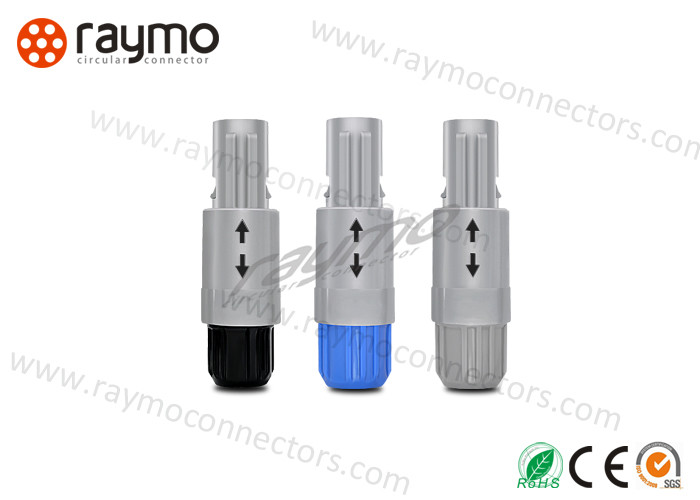

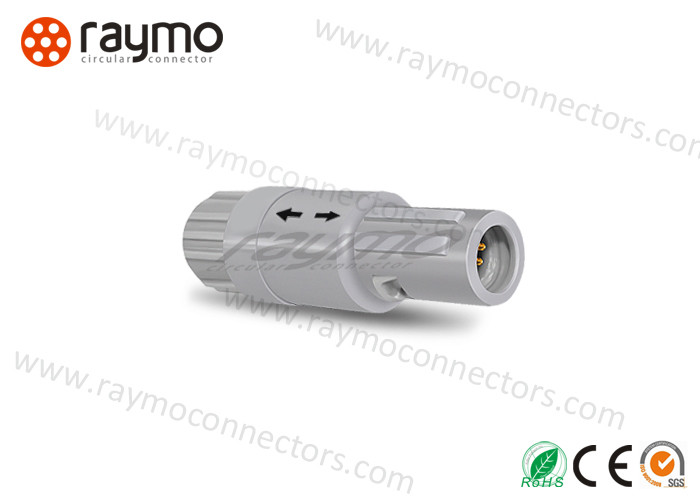

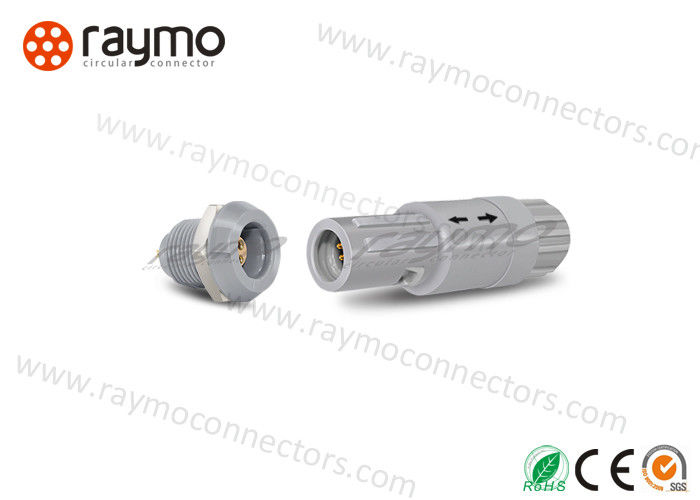

| Prct Name: | Plastic Circular Push-pull Connector | Model: | Cable Mount Plug |
|---|---|---|---|
| Shell Size: | 1P PAG Plug | Contact No.: | 2, 3 , 4, 5, 6, 7, 8, 9, 10, 12, 14pins |
| Application: | Medical, Automative | Gender: | Male, Female |
| Insulator: | PPS, PEEK | Shell Material: | PC, PSU, PEEK |
| IP Ranking: | IP50 | Lifetime: | ≥1000times |
| Highlight: | plastic push pull connector,raymo connectors |
||
| Part No. | Good Description |
| RM-PAG-1PC-302JS39G | Plastic circular push pull cable mount connector, PAG cable plug, 2pin male contact, 39 cable collet for OD1.0-3.9mm cable, round nut , one key, 0 degree, gray colour shell, gray colour cap |
Medical, Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application.
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers
| Plastic Circular Push Pull connector RM-p series | |||||||||||||
| Series | IP | Shell Size | Contacts No. with solder & PCB type | ||||||||||
| RM-P | 40 | 1P /Redel | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 14 |
| Main Feature |
| Secure Push-pull Self-locking system |
| High density assembly to save space. |
| Alignment Key and Polarized Keying System to avoid cross-interface. |
| Colorful plug round nut and socket screw nut for choice, easy for identify |
| Available solder and PCB or right angle PCB contact. |
| Technical Characteristics | |||
| Temperature Range | - 40° C, +150° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >96hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz] |
| IP Rating | IP 40 | Certifications | ISO9001 CE ROHS2.0 SGS |
1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing Circular Connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample ?
Raymo: Available. Any needs, please contact us.
4. What about the lead time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5. What is your payment terms?
Raymo: 100% T/T prepayment when customer place order .
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty
