LEMO W Series IP68 Circular Deepsea Connector

LEMO W Series IP68 Circular Deepsea Connector
LEMO W Series IP68 Circular Deepsea Connector LEMO W Series IP68 Circular Deepsea Connector LEMO W Series IP68 Circular Deepsea Connector LEMO W Series IP68 Circular Deepsea Connector
Basic Information
Place of Origin: SHENZHEN,CHINA
Brand Name: RAYMO
Certification: SGS/ISO:9001-2015/CE/ROHS/
Model Number: RM-EVG-1WC-305KS
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: Plastic Bag & Carton
Delivery Time: 5-7working days
Payment Terms: T/T, L/C, MoneyGram, Western Union, D/A, D/P,
Supply Ability: 5000Pieces/ Week
Contact Now
Prct Name: IP68 Waterproof Connector Model: EVG Fixed Socket
Shell Size: 0W,1W,2W Insulator: PPS, PEEK
Contact No.: 2-19 Pins Shell Color: Natural Or Black Shell
Gender: Male, Female Cable Assembled Or Not: Yes
Highlight:

waterproof wire connectors

,

waterproof electrical connectors

Prct Description

RM-V Series  0W 1W 2W series FVG Straight plug

Part No.:

EVG.1W.305CLL/ RM-EVG-1WC-305KS

Prct Description:

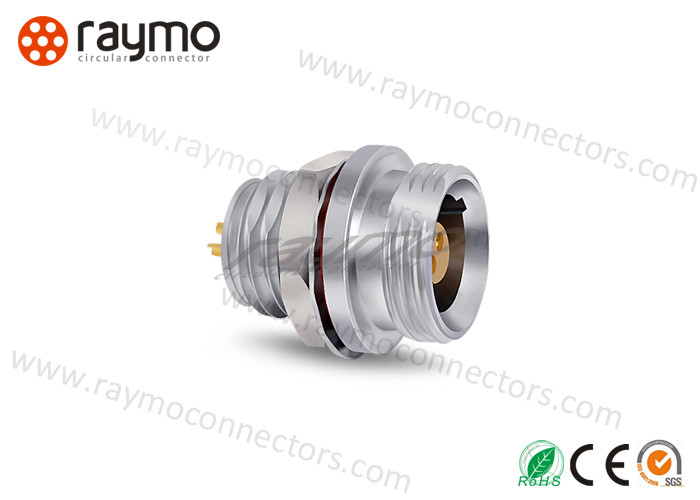

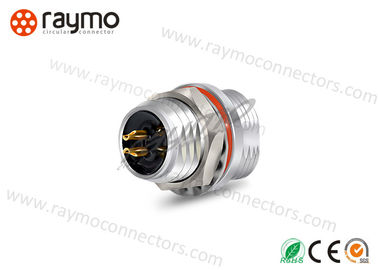

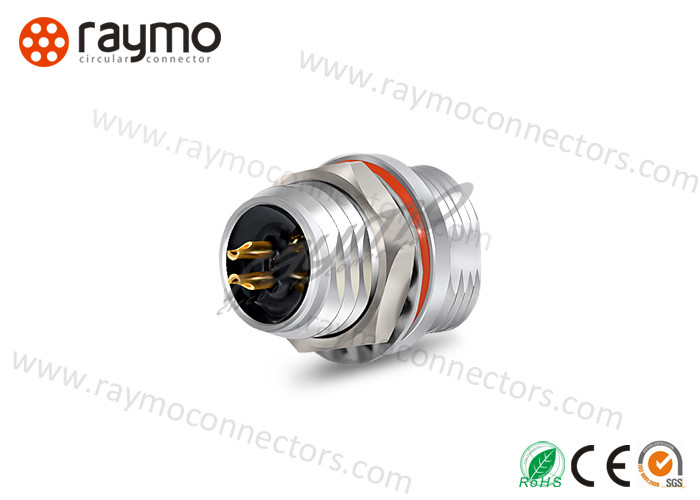

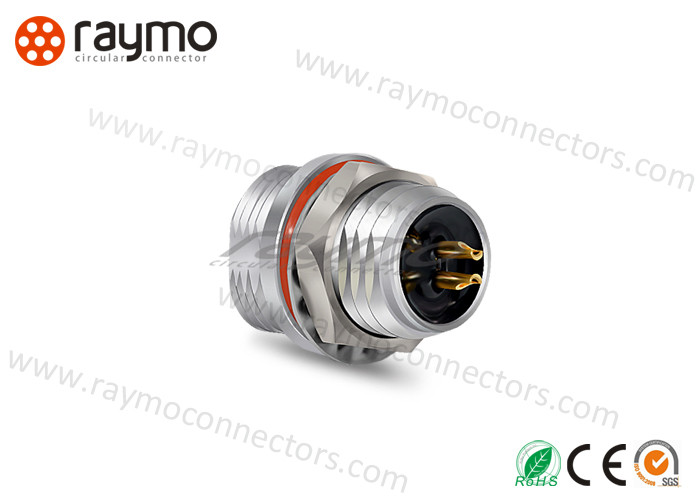

1W size connector, EVG fixed socket, 5 pin female contact in solder type, natural chrome plated shell in brass

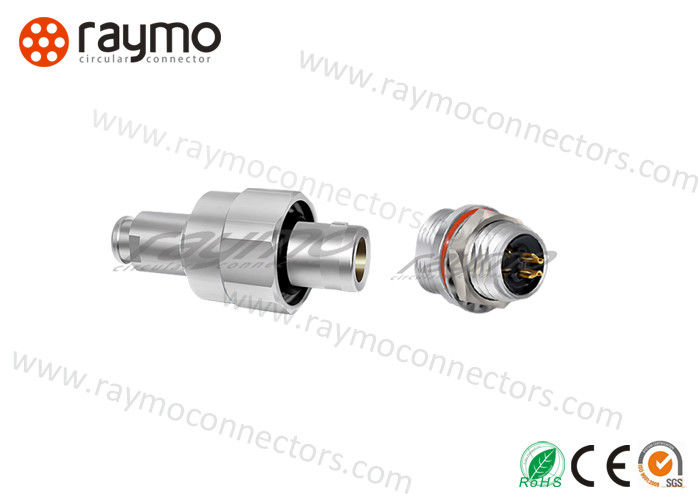

V series Deapsea Push pull locking metal connector, cable to cable connector, free socket, inline connector

360° EMC shield

Main Futures
1 Waterproof push-pull Self-locking system
2 2-19 pin available
3 plated with white or black chrome
4 Available solder and PCB or right angle PCB contact.
5 100% compatible with original Lemo W connector
6 Certificate:ISO:9001-2015, CE ,RoHS2.0, SGS, Reach





Technical Characteristics
Temperature Range - 65° C, +200° C Resistance to vibrations 15 g [10 Hz - 2000 Hz]
Shell Material Brass with chrome plated Humidity up to 95% at 60° C/140F
Shock Resistance 100 g [ 6 ms] Salt spray corrosion test >144hr
Climatical Category 55/175/21 Shielding (min) > 95dB [ at 10 MHz],     > 80 dB [ at 1 GHz]
IP Rating IP 68 Endurance(shell) ≥5000 mating cycles





LEMO W Series IP68 Circular Deepsea Connector 0



Shell size Contacts no. ( Both with Solder & PCB type )
0W 2 3 4 5 6 7 9 　 　 　 　 　
1W 2 3 4 5 6 7 8 10 14 16
2W 2 3 4 5 6 7 8 10 12

14

 16 18 19



Our Company



RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application

Our Exhibition

2020.11 Electronica Munich, Germany
2019 9.24-9.26 Testing Expo, Shanghai
2018 11.12-11.15 Electronica Munich, Germany
2017 9.11-9.16 NAB Show,Netherlands
2016 4.11-4.15 HK Fair
2015 10.2-10.7 ICEEB, Brasil
2014 10.11-10.15 HK Fair
2014 4.11-4.15 HK Fair

Why Choose US?

LEMO W Series IP68 Circular Deepsea Connector 1

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
