| Place of Origin: | SHENZHEN,CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | ROHS CE SGS ISO:9001-2015 |
| Model Number: | RM-FG2-0U1S-P13KS |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | Plastic Bag & Carton |
| Delivery Time: | 5-7working days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Supply Ability: | 5000Pieces/ Week |
| Prct Name: | Waterproof ULTIMATEl Connector | Shell Size: | 0U(=07), 1U(=08) |
|---|---|---|---|
| Gender: | Male, Female | Contact No.: | 2-14 Pins |
| Insulator: | PPS, PEEK | Endurance: | 5000 Times |
| IP Ranking: | IP68 Waterproof | Contact Type: | Solder/straight PCB/90° PCB |
| Contacts Material: | Brass With Gold-plated | Cable Assembled Or Not: | Yes |
| Highlight: | mil spec wire connectors,military plugs connectors |
||
Part No.: |
UR02L07M010SBK1 / RM-FG2-0U1S-P13KS |
Prct Description: |

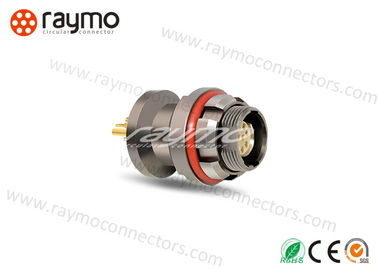

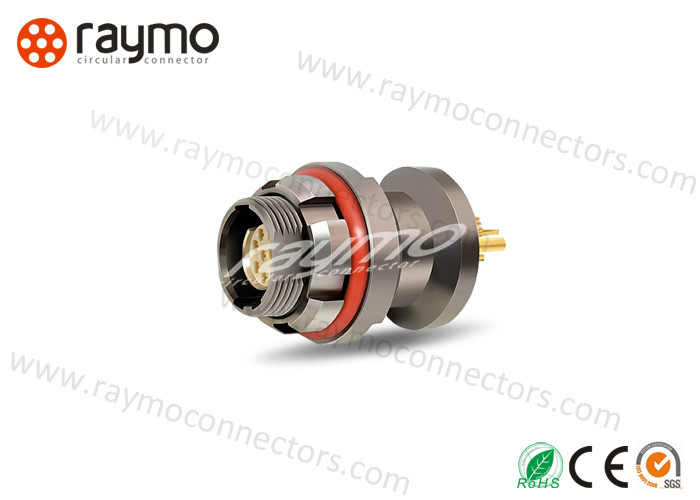

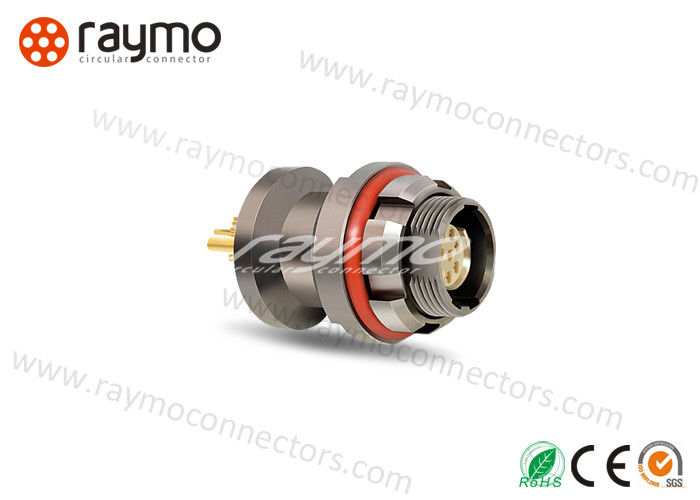

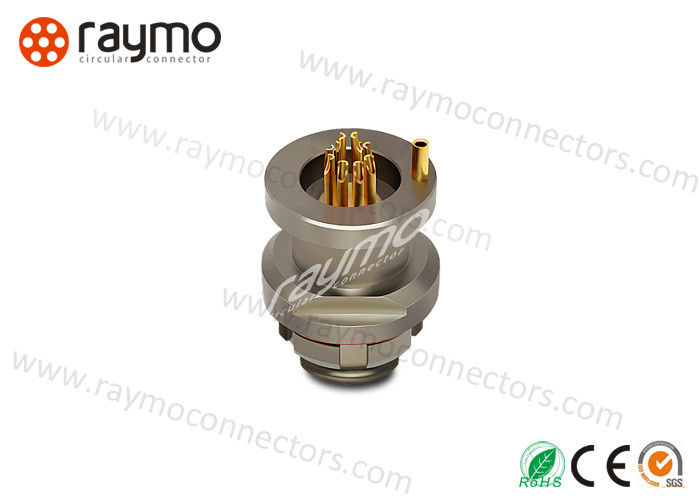

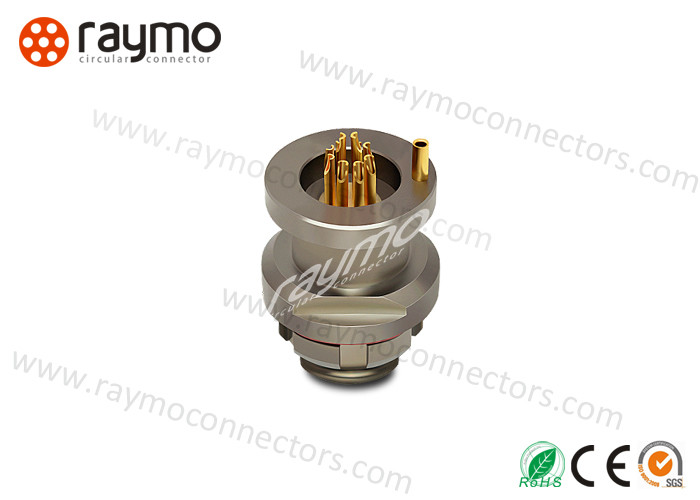

0U(=07) size cable mount push pull connector, FG2 model panle mounted socket, 13pin female contact, code 1, gun-color chrome plated shell in brass |
Waterproof Push pull locking metal connector U-series connector, cable to cable connector, free socket, inline connector
| Main Futures | |
| 1 | Secure high performance IP68 waterproof push-pull Self-locking system |
| 2 | can be 100% compatible with original Fischer connector |
| 3 | can be with different code, code 1,2,3 |
| 4 | 360 angle screening for full EMC shielding. |
| 5 | Available solder and PCB or right angle PCB contact. |
| 6 | can plated with white or black chrome. |
| 7 | SO:9001-2015, CE ,RoHS2.0, SGS, Reach |
| Technical Characteristics | |||
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | Brass with chrome plated | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144 hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 95 dB [ at 10 MHz], > 80 dB [ at 1 GHz] |
| IP Rating | IP 68 | Endurance(shell) | ≥5000 mating cycles |
| Shell size | Contacts no. ( Both with Solder & PCB type ) | ||||||||||
| 0U(=07) | 2 | 3 | 4 | 5 | 7 | 9 | 10 | 13 | |||
| 1U(=08) | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | |
Our Company
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented circular push pull connector and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers
RAYMO's high quality connectors are found in a variety of challenging applications and environments including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application.
| 2020.11 | Electronica Munich, Germany |
| 2019 9.24-9.26 | Testing Expo, Shanghai |
| 2018 11.12-11.15 | Electronica Munich, Germany |
| 2017 9.11-9.16 | NAB Show,Netherlands |
| 2016 4.11-4.15 | HK Fair |
| 2015 10.2-10.7 | ICEEB, Brasil |
| 2014 10.11-10.15 | HK Fair |
| 2014 4.11-4.15 | HK Fair |
100% compatible with lemo, , fischer connector
Help you save at least 50% cost
All the prcts we got CE, ROHS, SGS,ISO9000 certificate
Fast delivery: 2-15 working days
Cable assembly offer, help you save prction time
our company has over 9 years experience and strong professional research and development capabilities.Advanced development and management, comprehensice R&D TESTING and highly automatic prction line make our prcts high reliablilyty and high performance.
Our comapny has passed ISO90001,and got CE, REACH, RoHS and SGS certification
