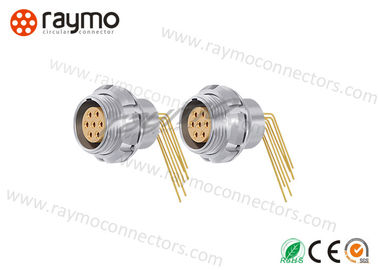

14 PIN Right Angle Coax Connector For PCB Board Quick Insert Pull Out Convenient

• EEG.1B.314.CLV Panel mount socket, 1B series, 14pin female contact, right angle elbow contact, PCB connector
• Used for PCB board
• High density compress
• 100% compatible with lemo connector
• meet Reach STANDARD

• Pulling and inserting times : ＞5000 times
• Humidity : Maximum humidity up to 95% at a temperature of 60 °
• Temperature range: - 65° C, +200° C
• Vibration: 15 g [10 Hz - 2000 Hz]
• Shock Resistance : 100 g [ 6 ms]
• Protention Level : IP50
• Salt Cpray Corrosion test: ＞96Hrs
• Terminal Type: elbow PCB
• Number of positions: 1-32pins
• Fastensing Type: Push pull
• Shell Material : Brass
• Shell Finish : chrome plated
• Contact Material: Brass
• Insert Material : PPS , PEEK

As manufacturer located in Shenzhen, focusing on manufacturing connectors and cable assemblies serive more than 150 countries since 2010.

Raymo Connectors is committed to working closely with its customers to equip their application with the most appropriate connector and cable system.  Our prct range comprises over 3,000 standard items and we are always prepared to develop customized solutions for specific requests.





RAYMO Prcts Applicaiton

• Medical imaging
• Scientific research,Automation,Test & measurement
• Avionics,Transport
• Communication systems, Defense & Security
• High Speed Camera
• Batteries
• Weatherproof applications

• RoHS 2.0
• CE
• SGS
• ISO:9001-2015
• Reach

• Easy mating, can be blind-mated guiding mechanism ensures precise alignment
• Increased safety and user friendliness mechanical and color coding prevent misconnection
• Increased equipment life span guiding mechanism optimally protects the contacts
• Robust and shock resistant designs ideal for equipment used in the field
• High performance connectors designed and tested to withstand extreme conditions
• Sealed up to IP50 and corrosion resistant usable underwater
• Sterilizable ideal for medical applications
• Functional in a wide temperature range from -65°C to +200°C

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
