| Place of Origin: | SHENZHEN,CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | RoHS, REACH, SGS, ISO:9001-2015 |
| Model Number: | RM-PLG-1PC-312KS |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | PE Bag & Carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | Western Union, T/T , MoneyGram, D/P, D/A, MoneyGram, L/C |
| Supply Ability: | 5000Pieces/ Week |
| Type: | Medical Connectors | Gender: | Female Solder Contacts |
|---|---|---|---|
| Contact No.: | 2.3.4.5.6.7.8.9.10.14pins | Insulator: | PPS, PEEK |
| Shell Material: | PC, PSU, PEEK | Application: | ECG Monitor |
| Highlight: | plastic push pull connector,cable assembly connector |
||
|
Raymo P/N |
LEMO Redel P/N |
|
RM-PLG-1PC-308-KS |
PLG.M0.8GL.LC52V |

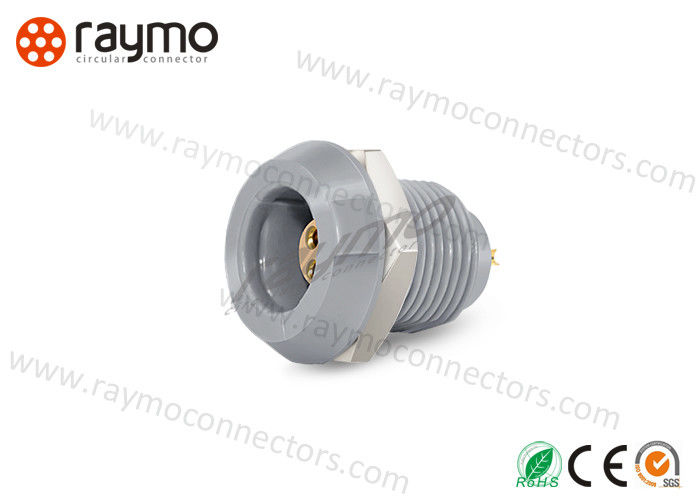

Part no explanation: Panel mounted fixed receptacle, alignment key (G=0 degree), 8pins female contacts in solder type, gray colour PC outer shell, PPS insulator,
|
Series |
IP |
Shell Size |
Contacts No. with solder & PCB type |
|||||||||
|
RM-P |
40 |
1P /Redel |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
14 |
| Technical Characteristics | |||
| Temperature Range | - 50° C, +150° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | PC | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >96hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
| IP Rating | IP 50 | Endurance(shell) | ≥1000 mating cycles |
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers.
This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military
100% compatible with lemo, , fischer connector
Help you save at least 50% cost
All the prcts we got CE, ROHS, SGS,ISO9000 certificate
Fast delivery: 2-15 working days
Cable assembly offer, help you save prction time
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
