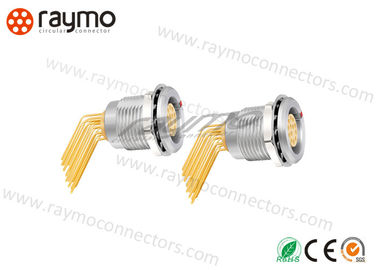

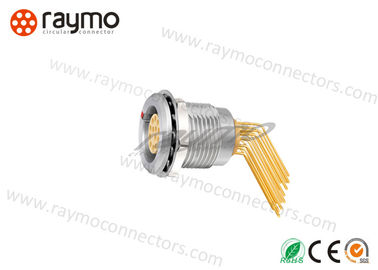

90 Degree Circular Connector Compatible Low Voltage High Reliability Quick Mating

B series circular connector connectors, ECG EGG 0B 1B 2B 3B 6 poles elbow PCB contacts

• EGG.0B.306.CLV= Raymo RM-EGG-0BC-306-KV
• 6 poles contacts with 90 degree PCB contacts, ECG Panel Socket
• Material Insulator: PPS
• 100% compatible with Original Lemo connector
• natural shell (Black shell is available)

• High density assembly to save space
• Secure Push-pull Self-locking system
• RM-K series has same insualtor and contact configuar as B series
• 360° EMC shielding
• Alignment Key and Polarized Keying System to avoid cross-interface
• Available solder, PCB and right angle PCB contact

• Automotive
• Extreme LIKE Nuclear
• Medical LIKE Diagnostic devices
• Test & measurement LIKE Sensors
• Transport LIKE Maritime
• Defense & Security LIKE Target acquisition
• Broadcast like TV and motion picture
• Energy like Batteries

As manufacturer located in Shenzhen, focusing on manufacturing connectors and cable assemblies serive more than 150 countries since 2010.
Raymo Connectors is committed to working closely with its customers to equip their application with the most appropriate connector and cable system.
Our prct range comprises over 3,000 standard items and we are always prepared to develop customized solutions for specific requests.

​

Chooseing tips

• If you have ordered this shell connector and know the original model P/N, please tell us.We will directly offer you our correspinding one.
• If you don't know much about the connector,please make choose according the following factors:
• The use of enviroment,indoor or ourdoors,waterproof or not
• The panel hole size, to seclect the approproate plug and socket of right dimension
• the current voltage and the realization of the function, to determin the cores
• seclect the appropriate clam diameter and sheath
• according to the actual needs of different angles of the keys, to determin the keying
