| Place of Origin: | SHENZHEN, CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | REACH, SGS, RoHS2.0, ISO:9001-2015, CE |
| Model Number: | EEG.1B.310.CLV |
| Minimum Order Quantity: | 5 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | Plastic Bag & Carton |
| Delivery Time: | 5-7wds |
| Payment Terms: | Western Union, L/C, D/A, D/P, T/T |
| Supply Ability: | 5000Pieces/ Week |
| Type: | PCB Printed Circuit Connector | Application: | Consumer Electronics |
|---|---|---|---|
| Gender: | Female Elbow PCB Contacts | Insulator: | PPS |
| Shell Size: | 0B, 1B, 2B, 3B, 4B | Usage: | The Cable And Fuse Can Be Fixed On PCB |
| Highlight: | pcb board connector,right angle pcb connector |
||

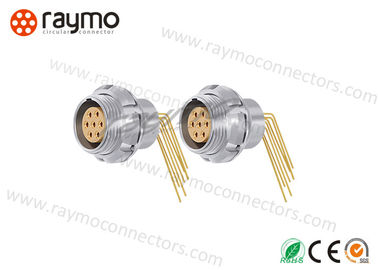

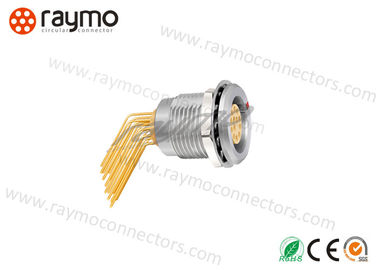

Elbow PCB printed circuit Connector, B series EGG ECG EEG EHG panel socket with ELBOW circuit board power connector
Elbow PCB contacts
Multiple contacts from 2 to 32 pins are available
Straight PCB, solder and elbow PCB contacts are available too
|
RAYMO P/N |
Lemo P/N |
P/N |
|
RM-EEG-1BC-310-KV |
EEG.0B.310.CLV |
G20L0C-P02 |
| Shell size | Contacts no. ( Both with Solder & PCB type ) | ||||||||||||||
| 00 | 2 | 3 | 4 | ||||||||||||
| 0B | 2 | 3 | 4 | 5 | 6 | 7 | 9 | ||||||||
| 1B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | ||||
| 2B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 | |||
| 3B | 3 | 4 | 6 | 8/(6+2) | 9(8+1) | 10 | 12 | 14(13+1) | 14 | 16 | 18 | 21 | 26 | 30 | 32 |
| 4B | 7 | 10 | 24 | |
|||||||||||
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | Brass with chrome plated | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
| IP Rating | IP50 | Endurance(shell) | 5000 mating cycles |
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers.
This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military
| 1.Can I order a small list ? |
| Raymo:Of course, you can. |
| 2.What quote do you offer? |
| Raymo:FOB , CIF and others ways according the your needs. |
| 3.How transport? |
| Raymo:Sea Freight, Air Freight and others Express Delivery ways for you. |
| 4.What is the quality of your prcts guarantee? |
| We have passed ISO9001:2015 Quality Management System Certification, CQM Quality Management System Certification and IQNet Quality Management System Certification, If the quality doesn't accord the standard, you can exchange the goods for free. |
| 5.Do you have after-sales service? |
| Raymo:Certainly,you can contact us at any time. |
