Fisher panel mount socket, 4 female contacts, IP68 underwater connectors, DBEE 102 A053

Prct Description

RM-F Series DBEE model panel mount fixed socket Metal circular push pull connectors

Part No.:	RM-DBEE-1F1C-P05KS=DBEE.103.A054.130
Prct Description:	1F size, DBEE model socket, code 1, 5pin female contact,in solder type , chrome plated shell in brass

Main Feature

IP68 Waterproof Push pull locking metal connector F-series connector, cable to cable connector, free socket, inline connector

Multiple contacts in solder & PCB are available

1	Secure high performance IP68 waterproof push-pull Self-locking system
2	High quality compatible circular connectors with FISCHERS
3	can be with different code
4	can plated with white or black chrome,
6	360 angle screening for full EMC shielding.
7	ISO:9001-2015, CE ,RoHS2.0, SGS, Reach
8	Complete customer solutions(connectors and cable assembly service)
9	Designed for Easy connect/Disconnect Operations
10	Proven Rugged,Lightweight and Compact Solution
11	Operational In demanding and Harsh Environment

Techical Chracteristics

Technical Characteristics
Temperature Range	- 65° C, +200° C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
Shell Material	Brass with chrome plated	Humidity	up to 95% at 60° C/140F
Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>144 hr
Climatical Category	50/175/21	Shielding (min)	> 95 dB [ at 10 MHz], > 80 dB [ at 1 GHz]
IP Rating	IP 68	Endurance(shell)	≥5000 mating cycles

Photos of DEE Socket

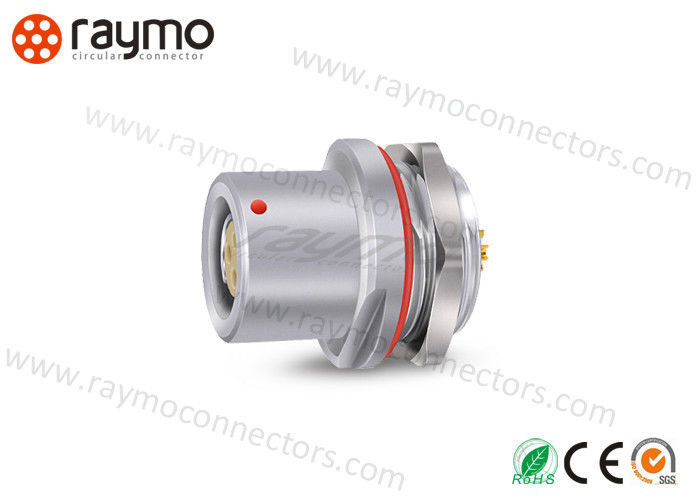

DBEE 102 A053 4 Female Contacts Connectors 0

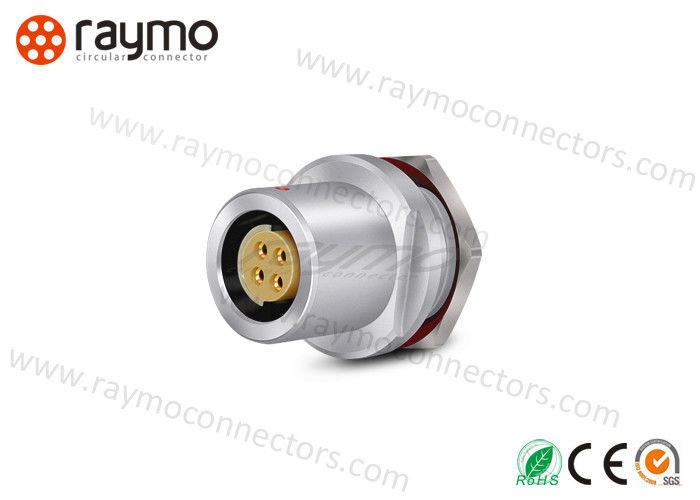

DBEE 102 A053 4 Female Contacts Connectors 1

Shell size and contacts for option

Series	contact no.
0F/102 series	2,3,4,5,6,7,9
1F/103 series	2,3,4,5,6,7,8,10,12
AF/1031 series	10,12,15,19
2F/104 series	2,3,4,5,6,8,16,19

Company information

RAYMO is a manufacturer that:

Manufacturing & exporting various metal & plastic circular connectors and cable assembly
All prcts can be 100% compatible with original LEMOS • FISCHERS • S • HIROSES • BINDERS and Military 38999
Cable Assembly can be designed according customer real needs
All the prcts we got CE, ROHS, SGS,ISO9000 certificate
OEM connector and Cable assembly
All the items can work normally after 5000 times mating

With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solution to meet customer's real needs in his field.

Application

Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor,Sensor Systems Instrumentation, Analysis Application

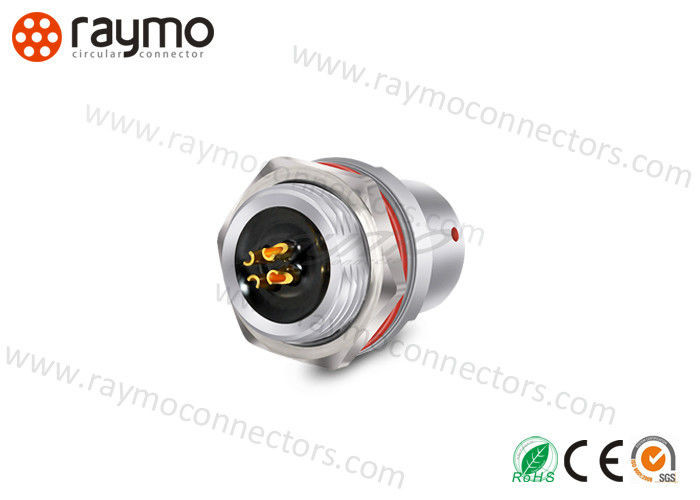

DBEE 102 A053 4 Female Contacts Connectors 2

Exhibition

2020.11	Electrnica Munich, Germany
2020.9	Testing Expo, Shanghai
2019 9.24-9.26	Testing Expo, Shanghai
2018 11.12-11.15	Electronica Munich, Germany
2017 9.11-9.16	NAB Show,Netherlands
2016 4.11-4.15	HK Fair
2015 10.2-10.7	ICEEB, Brasil
2014 10.11-10.15	HK Fair
2014 4.11-4.15	HK Fair

Why you need buy Raymo's compatible connector?

100% compatible lemo connector
Help you save at least 50% cost
Cable assembly offer,help you save prction time

RFQ

1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing circular connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample :
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5. What is your payment terms?
Raymo: 100% T/T deposit when customer place order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory
has instruments to tested them before shipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!

Tag:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	RAYMO
Certification:	ISO:9001-2015, CE ,RoHS2.0, SGS, REACH
Model Number:	DBEE 102 A052 139

Minimum Order Quantity:	5 Piece/Pieces
Price:	Negotiable
Packaging Details:	Plastic Bag & Carton
Delivery Time:	5-7 working days
Payment Terms:	Western Union, L/C, D/A, D/P, T/T
Supply Ability:	5000 Pieces / Week

Shell Model:	DBEE Fixed Receptacle With Male Or Female Pins	Shell Size:	0F/102
Contact No.:	2-19pins	Insulator:	PPS/PEEK
Application:	Data Acquisition	IP Ranking:	IP68
Endurance:	5000 Times Push Pull	Color:	Black Or Natural Are Available
Highlight:	outdoor electrical connector , waterproof cord connector
