As a manufacturer located in Shenzhen, focusing on manufacturing m Creative customer-oriented metal and plastic circular push pull connectors and cable assemblies to serve over 75 countries and regions since 2010.

With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solutions to meet customer's real needs in this fields.

RAYMO connectors have been widely used in the areas of telecommunication, electronics, medical equipment, Aviation,

Audio-video, Petroleum, motor and power industries, electrical signal connection, IC control systems, test and measurement Instruments, alike.

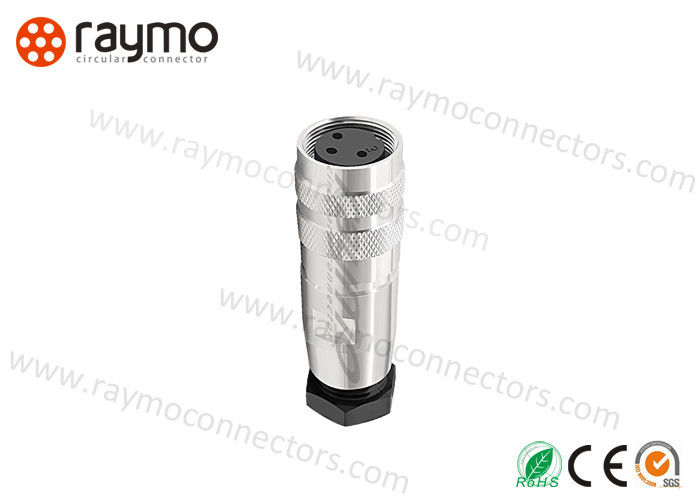

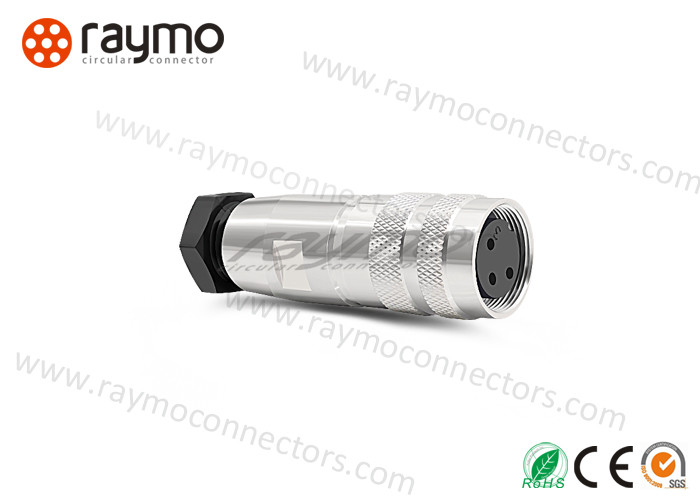

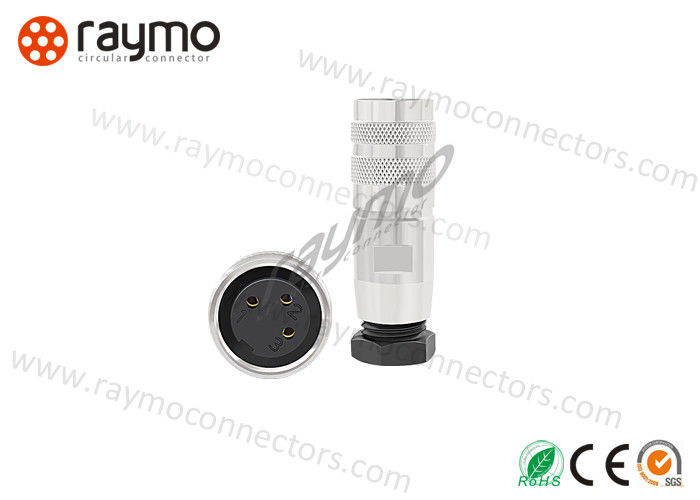

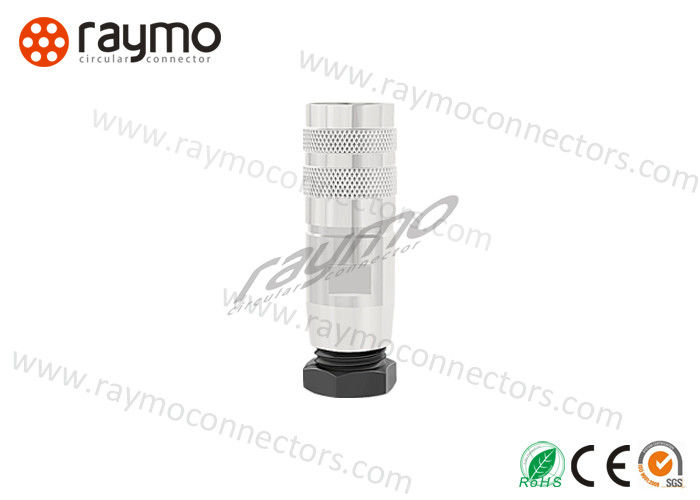

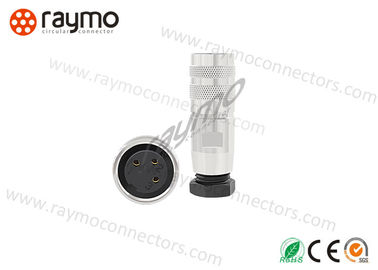

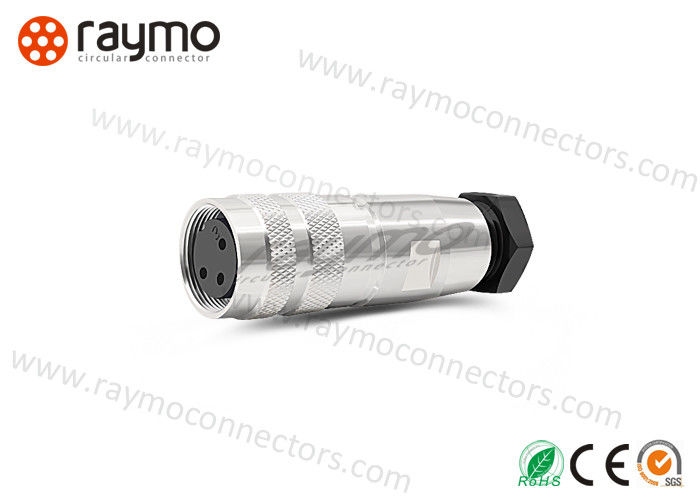

Binder 3 5 6 7 8 12 Pin M16 680series Circular Connector RM-FGG.M16.A03JS40Z

Part No.: RM-FGG.M16A03JS40
Prct Description: tThreaded connector, panel mount socket, 3pin female contact, in solder type, nickel-plated in brass materail

1. Threaded metal connector can be 100% compatible Binder 423 Series.
2. Very cheap price, save cost.
3. shell can be make with white or black nickel plated.
4. can be 100% compatible with original binder 680 series connector.
5. can be with different  mutipole contacts.
6. lifecycles can more than 500times
7. Certificate has Reach, CE, ROHS2.0 , SGS.
8. can be make  with cable assembly based on custom drawings.
9. Srew locking metal connector M16-series connector, cable to cable connector, free socket, inline connector

10. ISO:9001-2015, CE ,RoHS2.0, SGS, Reach



    Technical Characteristics
    Temperature Range	- 40° C, +85° C	Resistance to vibrations	15 g [10 Hz - 2000 Hz]
    Shell Material	Brass with Nickel plated	Humidity	up to 95% at 60° C/140F
    Shock Resistance	100 g [ 6 ms]	Salt spray corrosion test	>96hr
    Climatical Category	50/175/21	Shielding (min)	> 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz]
    IP Rating	IP 0	Endurance(shell)	≥5000 mating cycles

Sample in carton 15*10*8cm

Delivery date: 3-5 working days for sample, mass prction for 5-7 working days.

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!

1. Are your company a professional manufacturer?

Raymo: Yes, we specialized in prcing Circular Connectors and cable assembly since 2010.
Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample?
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5.What is your payment terms?
Raymo: 100% T/T deposit when customer place order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory has instruments to tested them before shipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
