| Place of Origin: | China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | ISO9001/ CE/ ROHS2.0/ SGS |
| Model Number: | RM-PAG-1PC-304-JS42J |
| Minimum Order Quantity: | 1pcs |
| Price: | negotiation |
| Packaging Details: | carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000pcs per week |
| Prct Name: | Circular Plastic Connectors | Application: | Data Signal Power Transfer |
|---|---|---|---|
| Shell Size: | 1P | Contacts: | 2,3,4,5,6,7,8,9,10,14P |
| Contact Material: | Copper Plated Gold | Protection Index: | IP50/IP67 |
| OEM: | Acceptable | Sample: | Freely |
| Highlight: | 1P Data Signal Circular Connectors,IP67 Data Signal Circular Connectors,ROHS2.0 Male Female Circular Connectors |
||

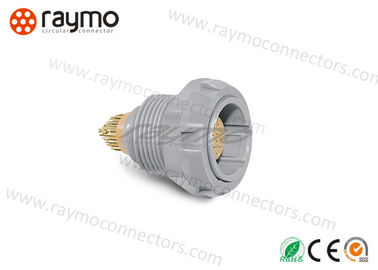

Male Female Multipin Electronic Data Signal Circular Plastic Connectors
Prct Description:
RM-P series are mainly used in medical world. compatible with original, and these can be sterilizable. Single-use (called disposable connectors too) are also available when sterilization is not an option.
These circular plastic connectors are especially adapted for applications such as medical electronics and test & measurement.
| Raymo P/N | Original P/N |
| RM-PKG-1PC-302-KSA | PKG.M0.2GL.LA |
| RM-PKG-1PC-303-KSA | PKG.M0.3GL.LA |
| RM-PKG-1PC-304-KSA | PKG.M0.4GL.LA |
| RM-PKG-1PC-305-KSA | PKG.M0.5GL.LA |
| RM-PKG-1PC-306-KSA | PKG.M0.6GL.LA |
| RM-PKG-1PC-307-KSA | PKG.M0.7GL.LA |
| RM-PKG-1PC-308-KSA | PKG.M0.8GL.LA |
| RM-PKG-1PC-309-KSA | PKG.M0.9GL.LA |
| RM-PKG-1PC-310-KSA | PKG.M0.10GL.LA |
| RM-PKG-1PC-314-KSA | PKG.M0.14GL.LA |
| Shell size | Contacts no. With Solder & PCB type | |||||||||
| 1P | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 14 |
| Nut color | Gray(G) | blue(A) | yellow(J) | black(N) | red(R) | green(V) |
Example:
RM-PKG-1PC-307-KS=PKG.M0.7GL.LA
Fixed receptacle with two nuts and alignment key(G=0 degree), multipole 7 female contacts in solder type, blue color PC outer shell, PPS insulator, blue color plastic front nut.
Features of RM-P series medical push pull circular plastic connector:
-Lightweight
-Secure high performance push-pull self-locking system
-Excellent electrical safety(touch & scoop proof)
-Contacts from 2-14pins
-Several keying options
-Colorful nut for choice, easy for identify
-For cable ø 2.7 to 6.5 mm
-Available solder, PCB and right angle PCB contact
Applications of Circular plastic Connectors
•Medical electronics
•Test and measurement
•Industrial electronics
•Automotive
Our company
With professional R&D and excellent craftsmanship, our factory has ability of providing customer with much more precision connectors and cable harness solutions to meet customer's demand in this fields.
Aimed on providing customer with qualified and suitable connectors and cable assemblies, our factory has already designed and developed over 3,000 types of connectors and 1,000 kinds of OEM cable assemblies based on customer real needs since the establishment.
Our advantage
100% quality tested
100% fast delivery
100% after-sales service
