| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE / RoHS / SGS / ISO9001:2015 |
| Model Number: | RAYMO PAG.M0.2GL.AC52N |
| Minimum Order Quantity: | 1 pcs |
| Price: | USD3.25/PC |
| Packaging Details: | PE bag & carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs per week |
| Connector: | Plastic Push Pull Connector | Series: | 1P |
|---|---|---|---|
| Contact No.: | 2pin | Keying: | 1 Key (G, 0 Degrees) |
| IP Rating: | IP50 | Housing Material: | PC, PSU Shell |
| Housing Color: | Gray Colour | Contact Materials: | Brass With Gold Plated |
| Contact Dia.: | 1.3mm | Insulator: | PPS Or PEEK |
| Highlight: | PSU Shell Plastic Push Pull Connectors,RoHS Plastic Push Pull Connectors,IP50 Push Pull Connector Plastic |
||
Security 2pin Medical Plastic Push Pull Connectors Gray PC PSU Shell
PAG.M0.2GL.AC52N GRAY SHELL COLOUR PLASTIC MEDICAL PUSH PULL CONNECTOR Prct Description
P/N: PAG.M0.2GL.AC52N GRAY SHELL COLOUR PLASTIC MEDICAL PUSH PULL CONNECTOR
Description: 1P series plastic lemo compatible redel circular push pull connector, 2pin male contact, 5.2mm cable collet, nut in black colour, shell in gray colour, 1 key, 0 degree
|
Shell size |
Contacts No. with solder & PCB type |
|
1P |
2pin, 3pin, 4pin, 5pin, 6pin, 7pin, 8pin, 9pin, 10pin, 14pin |
PLASTIC MEDICAL PUSH PULL CONNECTOR Main features:
– Security of the PLASTIC MEDICAL PUSH PULL CONNECTOR
– Multipole types 2 way to 14 way
– Solder or print (straight or elbow) contacts
– Keying system («G» key standard) for connector alignment
– Multiple key options to avoid cross mating of similar connectors
– High packing density for space savings
– Light housing
– Can be 100% compatible with original lemo connectors
– High quality with reasonable prices
|
Technical Characteristics Raymo Circular Waterproof Push Pull Connector |
|||
|
Endurance |
>5000 cycles |
Salt spray corrosion test |
>96h |
|
Humidity |
Up to 95% at 60℃ |
Protection Index (mated) |
IP50 |
|
Temperature Range |
-55°C~250°C |
Climatical category |
55/175/21 |
|
Resistance to Vibration |
10-2000Hz,15g |
Shielding |
>95db at 10MHZ >80db at 1GHZ |
|
Shock Resistance |
>100g, 6ms |
Certification |
CE, RoHS, SGS |

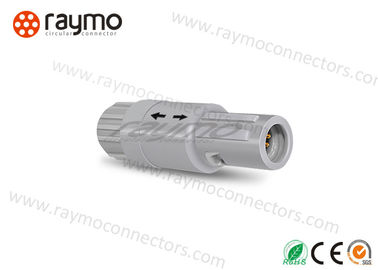

PLASTIC MEDICAL PUSH PULL CONNECTOR Photo & Dimensions:
RAYMO PLASTIC MEDICAL PUSH PULL CONNECTOR Application
RAYMO's high quality circular plastic push pull connectors are found in a variety of challenging applications and environmetns including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor, Sensor Systems Instrumentation, Analysis Application.
Raymo PLASTIC MEDICAL PUSH PULL CONNECTOR Packing & Delivery
Packing:
PE bag & Carton
Delivery Time:
1~10pcs: 3~5 working days
11~100pcs: 3~5 working days
101~500pcs: 3~5 working days
501~1000pcs: 3~5 working days
About Raymo Circular Plastic Push Pull Connector
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing, Creative customer-oriented metal and plastic circular push pull connectors and cable assemblies to serve over 75 countries and regions since 2010.
With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solutions to meet customer's real needs in this fields.
Aimed on offering customer qualified and suitable connectors and cable assemblies, our factory has already designed and developed over 3,000 types of connectors and 1,000 kinds of OEM cable assemblies based on customer's real needs.
Our Service
1. High Quality: CNC machine, professional engineer, skilful worker, responsible QC ensure our high quality prcts;
2. OEM & ODM: OEM & ODM services are welcome;
3. Sample policy: Free sample & sample order are accepted;
4. Fast delivery: 3~5 working days after receiving payment for normal connectors;
5. Fast Respond: within 24 hours for your inquiry and any other questions;
6. After-sale Service: Follow up your shipment. Provide professional solutions for your questions.
FAQ About Raymo Circular Plastic Push Pull Connector
1. Are your company a professional circular push pull connector manufacturer?
Raymo: Yes, we specialized in prcing Circular Connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5. What is your payment terms?
Raymo: 100% T/T prepayment when customer place order .
6. Does your prct have any warranty?
Raymo: Yes, all of our push pull connectors can work normally after 5000 cycles mating; our factory has instruments to test before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
