| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE / RoHS / SGS / ISO9001:2015 |
| Model Number: | S102 A052-130 |
| Minimum Order Quantity: | 1 pcs |
| Price: | USD3.25/PC |
| Packaging Details: | PE bag & carton |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs per week |
| Connector: | Push Pull Connector | Series: | 0F/102 Series |
|---|---|---|---|
| Contact No.: | 3pin, 3 Way | Keying: | Code 1 |
| IP Rating: | IP68 | Housing Color: | Brass Shell With Black Chrome Plated |
| Contact Materials: | Brass With Gold Plated | Insulator: | PPS Or PEEK |
| Highlight: | 3pin Plastic Push Pull Connectors,6ms Plastic Push Pull Connectors,IP68 Circular Waterproof Connector |
||
3way 3pin Plastic Push Pull Connectors Circular Waterproof Connector
S102 A052-140 3way Black Chrome Plated Fischers Compatible Circular Waterproof Push Pull Connector Prct Description
P/N: S102 A052-140 Raymo 102 series 3way Black Chrome Plated Fischers Compatible Circular Waterproof Push Pull Connector
Description: 0F 102 series Fischers compatible circular waterproof push pull connector, 3pin male contact, brass shell with black chrome plated, white colour guide dot, code 1
|
Shell size |
Contacts No. with solder & PCB type |
|
0F 102 series |
2pin, 3pin, 4pin, 5pin, 6pin, 7pin, 8pin, 9pin, 10pin |
Waterproof Circular PUSH PULL CONNECTOR Main features:
– Security of the PUSH PULL CONNECTOR
– Multipole types 2 way to 10ways
– Solder or print (straight or elbow) contacts
– Keying system («G» key standard) for connector alignment
– Multiple key options to avoid cross mating of similar connectors
– High packing density for space savings
– Can be 100% compatible with original Fischers connectors
– High quality with reasonable prices
|
Technical Characteristics Raymo Circular Waterproof Push Pull Connector |
|||
|
Endurance |
>5000 cycles |
Salt spray corrosion test |
>96h |
|
Humidity |
Up to 95% at 60℃ |
Protection Index (mated) |
IP68 |
|
Temperature Range |
-55°C~250°C |
Climatical category |
55/175/21 |
|
Resistance to Vibration |
10-2000Hz,15g |
Shielding |
>95db at 10MHZ >80db at 1GHZ |
|
Shock Resistance |
>100g, 6ms |
Certification |
CE, RoHS, SGS |

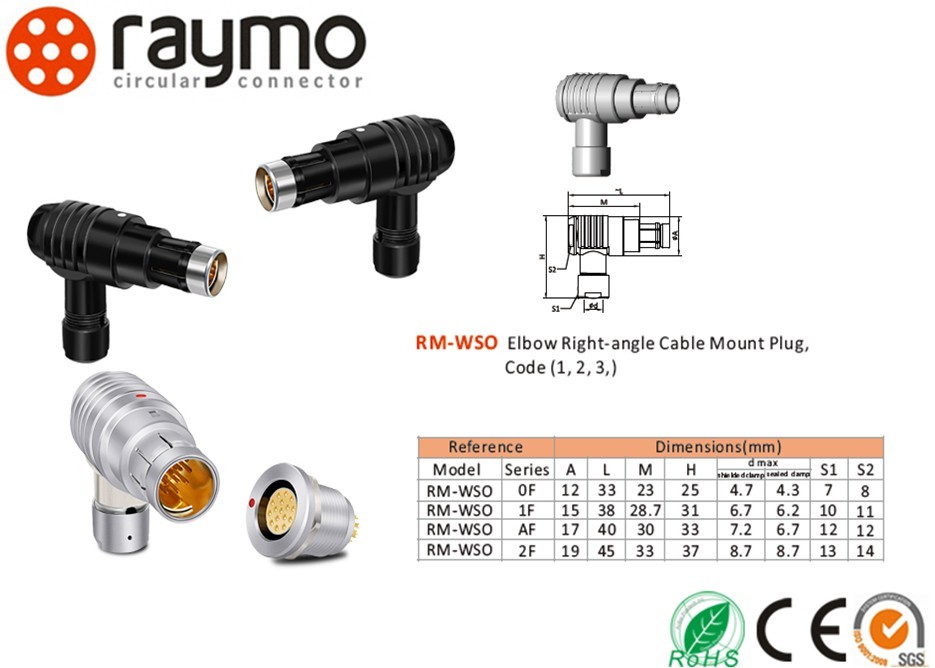

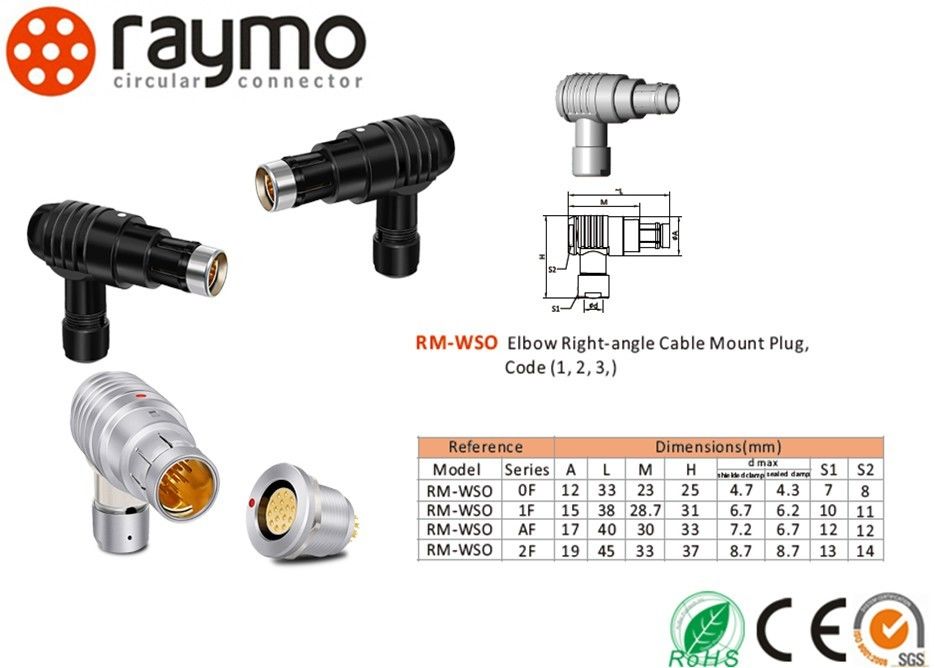

CIRCULAR WATERPROOF PUSH PULL CONNECTOR Photo & Dimensions:
RAYMO WATERPROOF CIRCULAR PUSH PULL CONNECTOR Application
RAYMO's high quality circular waterproof push pull connectors are found in a variety of challenging applications and environmetns including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor, Sensor Systems Instrumentation, Analysis Application.
Raymo WATERPROOF CIRCULAR PUSH PULL CONNECTOR Packing & Delivery
Packing:
PE bag & Carton
Delivery Time:
1~10pcs: 3~5 working days
11~100pcs: 3~5 working days
101~500pcs: 3~5 working days
501~1000pcs: 3~5 working days
ABOUT RAYMO WATERPROOF CIRCULAR PUSH PULL CONNECTOR
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing, Creative customer-oriented metal and plastic circular push pull connectors and cable assemblies to serve over 75 countries and regions since 2010.
With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solutions to meet customer's real needs in this fields.
Aimed on offering customer qualified and suitable connectors and cable assemblies, our factory has already designed and developed over 3,000 types of connectors and 1,000 kinds of OEM cable assemblies based on customer's real needs.
Our Service
1. High Quality: CNC machine, professional engineer, skilful worker, responsible QC ensure our high quality prcts;
2. OEM & ODM: OEM & ODM services are welcome;
3. Sample policy: Free sample & sample order are accepted;
4. Fast delivery: 3~5 working days after receiving payment for normal connectors;
5. Fast Respond: within 24 hours for your inquiry and any other questions;
6. After-sale Service: Follow up your shipment. Provide professional solutions for your questions.
FAQ About Raymo Circular Waterproof Push Pull Connector
1. Are your company a professional circular push pull connector manufacturer?
Raymo: Yes, we specialized in prcing Circular push pull Connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5. What is your payment terms?
Raymo: 100% T/T prepayment when customer place order .
6. Does your prct have any warranty?
Raymo: Yes, all of our push pull connectors can work normally after 5000 cycles mating; our factory has instruments to test before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
