| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| Model Number: | RM-M8-3 |
| Minimum Order Quantity: | 1piece |
| Price: | Negotiable |
| Packaging Details: | 100pc/CTN |
| Delivery Time: | 5-8 working days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000pcs/week |
| Prct Name: | Screw Thread Waterproof Connector | Number Of Contacts: | 3 Pins |
|---|---|---|---|
| Mounting Type: | Cable Mount | Termination Method: | Solder |
| Contact Gender: | Male | IP Rating: | IP67 |
| Current Rating: | 3A | Body Orientation: | Straight |
| Highlight: | 3 Pins Miniature Circular Connectors,M8 Miniature Circular Connectors,Screw Thread M8 Cable Connector |
||

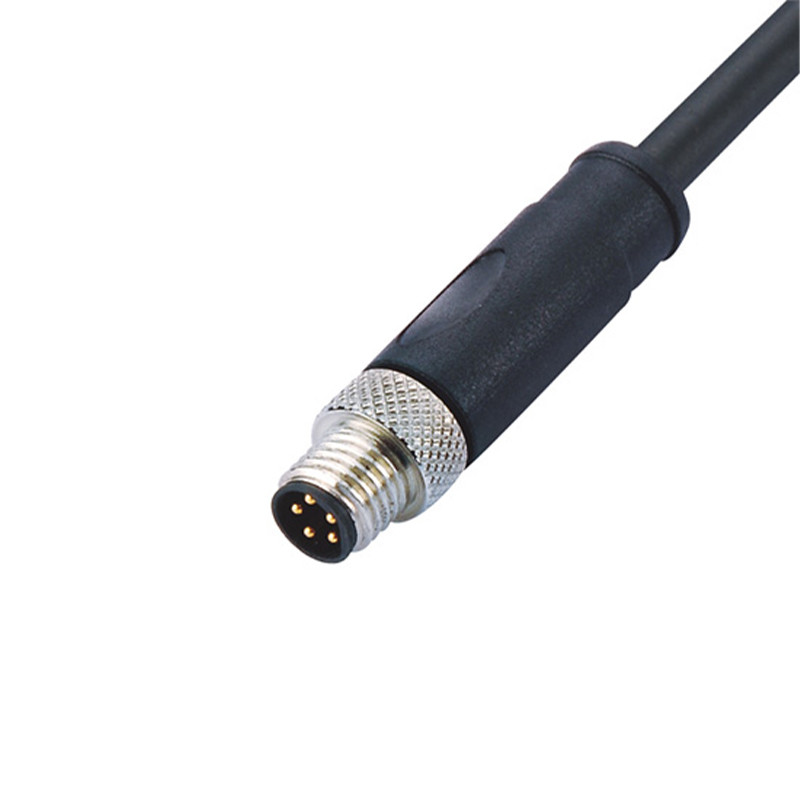

Description for IP67 Waterproof mini circular M8 M12 cable to cable Connector for Sensor
The M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Available in a shielded form and rated to IP67, these connectors are ideally suited for inductrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacle supplied with a solder-up for wire connecting or with PCB panel solder contacts. A field attachable/mountable connector is also available.
Specification for IP67 Waterproof mini circular M8 M12 cable to cable Connector for Sensor
| Prct attribute | Attribute Value |
| Manufacturer | RAYMO |
| Prct name | Circular screw waterproof connectors |
| Connector size | M5,M8,M12,M16 |
| Contact Gender | Pin(Male), pole(female) |
| Number of contacts | 3-8 contacts |
| Mounting Style | Straight/Elbow |
| Termination Style | Solder/print/PCB |
| Current Rating | 1.5-3A |
| IP Rating | IP67 |
| Application | Sensors, Actuators |
| Shell Material | (1) Connector material: Plastic PA+GF (2) M8 male to female molded cable (3) Contacts:Brass, Gold Plated (4) Cable material: PVC/TPU |
| Wire Gauge | 24-28AWG |
| Certifications | ISO9001/ CE/ ROHS2.0/ SGS |
| Temperature Range | -25°C, +80°C |

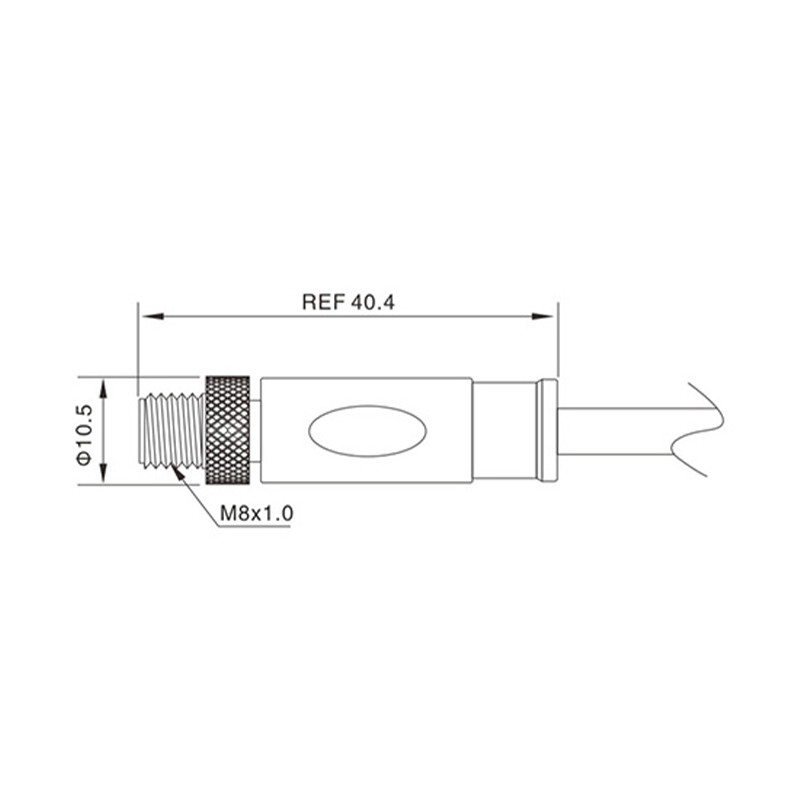

Electrical data & Mechanical data for IP67 Waterproof mini circular M8 M12 cable to cable Connector for Sensor
| Contacts | Rated current | Voltage | Wire gauge/size | ||
| A/C | D/C | mm2 | AWG | ||
| 3 pins | 3A | 50V | 60V | 0.25 | 24 |
| 4 pins | 3A | 50V | 60V | 0.25 | 24 |
| 5 pins | 3A | 30V | 30V | 0.25 | 24 |
| 6 pins | 1.5A | 30V | 30V | 0.14 | 26 |
| 8 pins | 1.5A | 30V | 30V | 0.14 | 26 |
Features for IP67 Waterproof mini circular M8 M12 cable to cable Connector for Sensor
Application for IP67 Waterproof mini circular M8 M12 cable to cable Connector for Sensor
Our advantage for IP67 Waterproof mini circular M8 M12 cable to cable Connector for Sensor
IP67 Waterproof mini circular M8 M12 cable to cable Connector for Sensor
