| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| Model Number: | RM-M8-1 |
| Minimum Order Quantity: | 1piece |
| Price: | Negotiable |
| Packaging Details: | 100pc/CTN |
| Delivery Time: | 5-8 working days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 5000pcs/week |
| Prct Name: | Miniature Circular Connector | Number Of Contacts: | 3 4 5 6 8 Poles |
|---|---|---|---|
| Mounting Type: | Panel Mount/cable Mount | Termination Method: | Solder/PCB |
| Contact Gender: | Female/male | IP Rating: | IP67 |
| Current Rating: | 1.5-3A | Body Orientation: | Straight/right Angle |
| Highlight: | Shielded Miniature Circular Connectors,M8 Angled Miniature Circular Connectors,Actuators M8 Right Angle Connector |
||

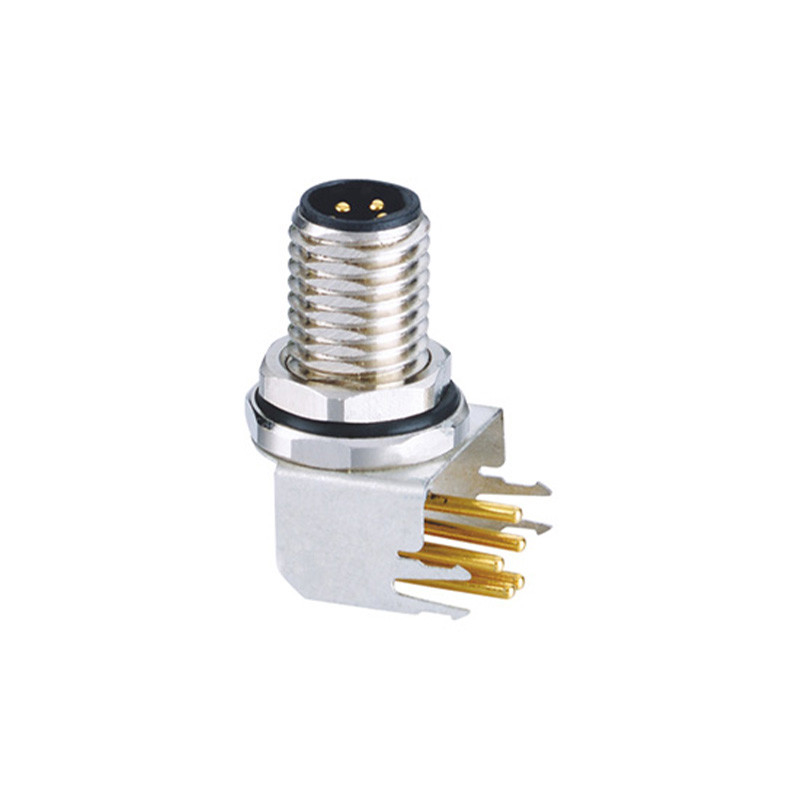

Description for binder 768 series M8 3 4 5 6 8 poles sensor miniature circular connector
The M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Available in a shielded form and rated to IP67, these connectors are ideally suited for inductrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacle supplied with a solder-up for wire connecting or with PCB panel solder contacts. A field attachable/mountable connector is also available.
Specification for binder 768 series M8 3 4 5 6 8 poles sensor miniature circular connector
| Prct attribute | Attribute Value |
| Manufacturer | RAYMO |
| Prct name | miniature circular connector |
| Connector size | M8 |
| Contact Gender | pole(female) |
| Number of contacts | 3 4 5 6 8 contacts |
| Mounting Style | Panel mount/cable mount |
| Termination Style | Solder/PCB |
| Current Rating | 1.5-3A |
| IP Rating | IP67 |
| Application | Sensors, Actuators |
| Shell Material | (1) Connector material: Plastic PA+GF (2) M8 male to female molded cable (3) Contacts:Brass, Gold Plated (4) Cable material: PVC/TPU |
| Wire Gauge | 24-28AWG |
| Certifications | ISO9001/ CE/ ROHS2.0/ SGS |
| Temperature Range | -25°C, +80°C |

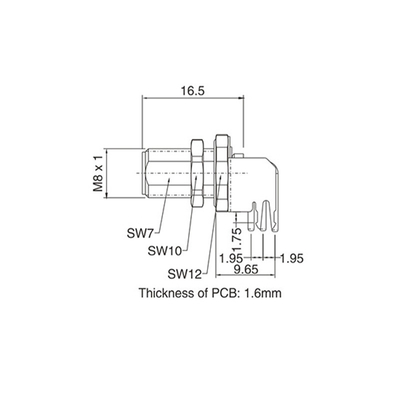

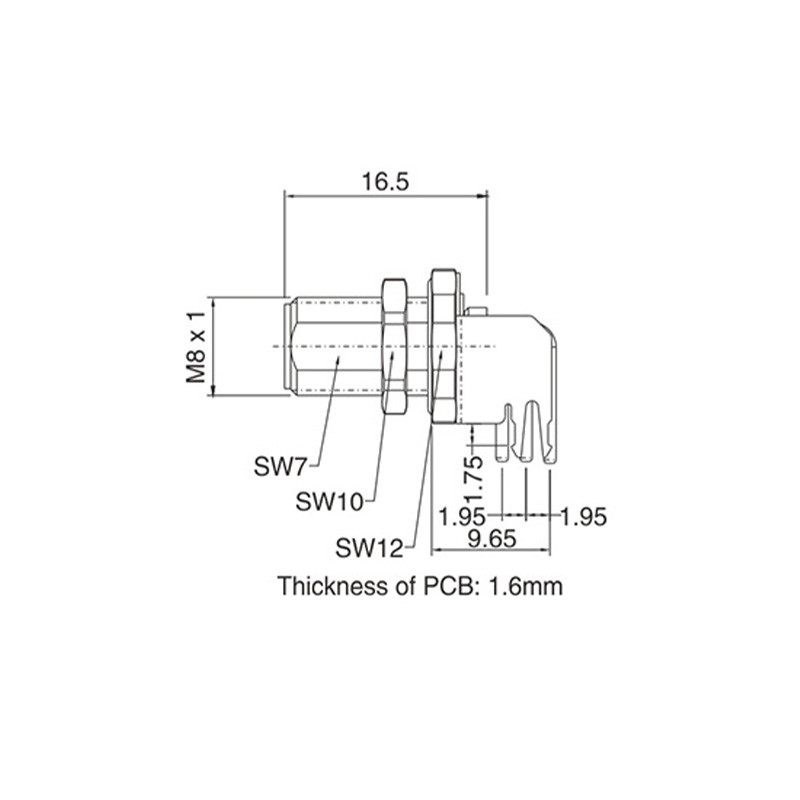

Electrical data & Mechanical data for binder 768 series M8 3 4 5 6 8 poles sensor miniature circular connector
| Contacts | Rated current | Voltage | Wire gauge/size | ||
| A/C | D/C | mm2 | AWG | ||
| 3 pins | 3A | 50V | 60V | 0.25 | 24 |
| 4 pins | 3A | 50V | 60V | 0.25 | 24 |
| 5 pins | 3A | 30V | 30V | 0.25 | 24 |
| 6 pins | 1.5A | 30V | 30V | 0.14 | 26 |
| 8 pins | 1.5A | 30V | 30V | 0.14 | 26 |
Features for binder 768 series M8 3 4 5 6 8 poles sensor miniature circular connector
Application for binder 768 series M8 3 4 5 6 8 poles sensor miniature circular connector
RAYMO has already established an integrated quality control system from R&D, supply chain, marketing, sales, after-sales service to meet customer deeper demand, and expect to achieve Raymo’s globalization strategy.
Our advantage for binder 768 series M8 3 4 5 6 8 poles sensor miniature circular connector
binder 768 series M8 3 4 5 6 8 poles sensor miniature circular connector
