Amphenol D38999 Series III Connector D38999/20WD05PN Industrial Circular Connectors Description
GJB599A series are made according to the same standard with D38999K series. The difference is that: the basic part number of GJB599A is MS, while D38999K is MS. GJB599A series is interchangeable with Industry Standard-DLT-38999K series.
Amphenol D38999 Series III Connector D38999/20WD05PN Industrial Circular Connectors main features:
- Comply with D38999 I series
- ●Quick bayonet coupling, small size, light weight and high density
- ●EMI/RFI shielding
- ●Removable crimp contact with scoop-proof design
- ●Various receptacle mounting: Box mounting, wall-through mounting, front mounting, rear mounting and jam nut mounting
- ●Withstand strong vibration
Amphenol D38999 Series III Connector D38999/20WD05PN Industrial Circular Connectors Parameter
| Category | Industrial Circular Connectors |
| Part number | D38999/20WD05PN |
| Connector Type | Receptacle |
| Orientation | Straight |
| Contact Type | Male Pin |
| Number of Positions | 5 |
| Fastening Type | Threaded |
| Mounting Type | Panel Mount |
| Contact Termination | Crimp |
| Protection Rating | IP67 |
Amphenol D38999 Series III Connector D38999/20WD05PN Industrial Circular Connectors Technical performance
| Housing | Aluminum alloy/stainless steel |
| Plating | B class: olive green cadmium plating E class: stainless steel passive F class: electroness nickel plating |
| Insulator | Thermoset plastic |
| Grommet and seal | Silicon rubber |
| Contact | Gold-plated copper alloy, crimping, soldering, PCB |
| Endurance | 500 cycles |
| Vibration | Sinusoid vibration: frequency 10-2000Hz, acceleration: 294m/s2 Random vibration: frequency 100-1000Hz, power spectral density: 1g2/Hz |
| Shock | At 3 ms half sinusoid, peak value |
| Operating temperature | B class: -65℃～+175℃ E, F class: -65℃～+200℃ |

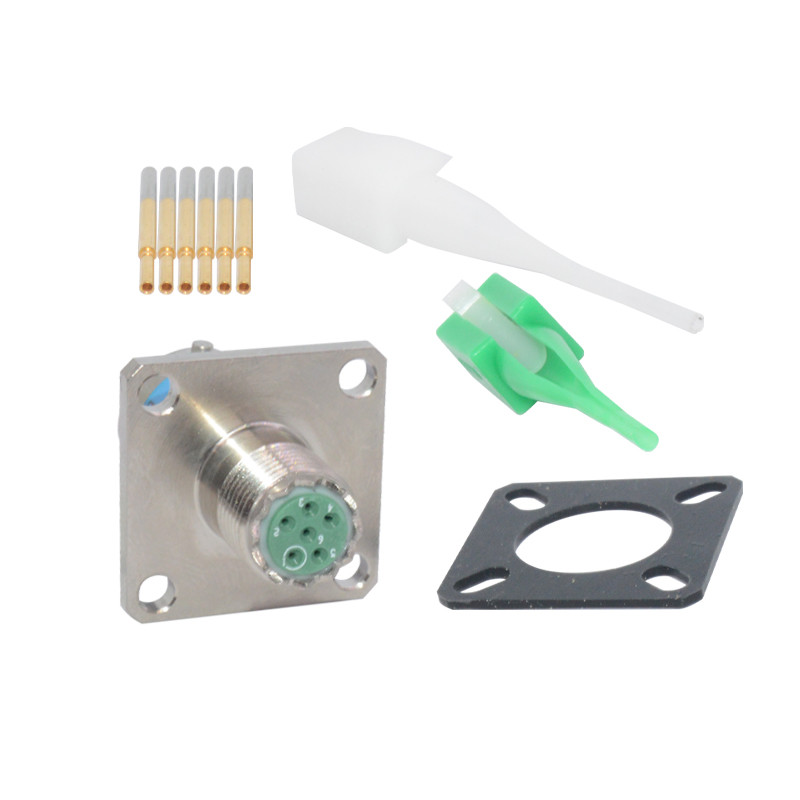

Amphenol D38999 Series III Connector D38999/20WD05PN Industrial Circular Connectors Pictures
Amphenol D38999 Series III Connector D38999/20WD05PN Industrial Circular Connectors Application
This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and industrial
