| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE/RoHS/ISO9001/EACH |
| Model Number: | FGG.00.304.CLAD35 |
| Minimum Order Quantity: | 1pcs |
| Price: | 3.1-4.5 |
| Packaging Details: | PE bag+ carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000pcs/month |
| Type: | Circular Push-pull Connector | Gender: | Male Solder Contacts |
|---|---|---|---|
| Shell Size: | 00B | Color: | Silver And Black Color |
| Insulator Material: | PPS | Temperature Range: | -40 To +120 Degree |
| Ip Rating: | IP50 | Cable Assemble: | According Customer Real Needs |
| Contacts: | 2pin 3pin 4pin 5pin 7pin | ||
| Highlight: | HD Camera Circular Push Pull Connectors,FGG.00.304.CLAD35 Circular Push Pull Connectors,4 Way Circular Push Pull Connectors |
||

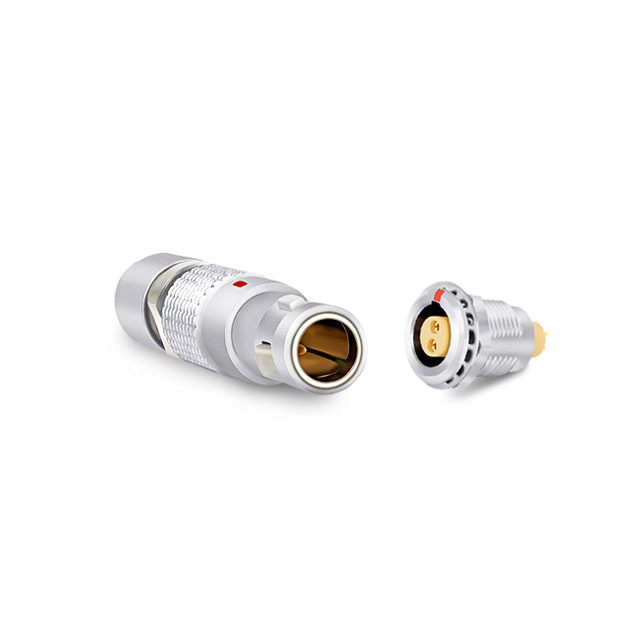

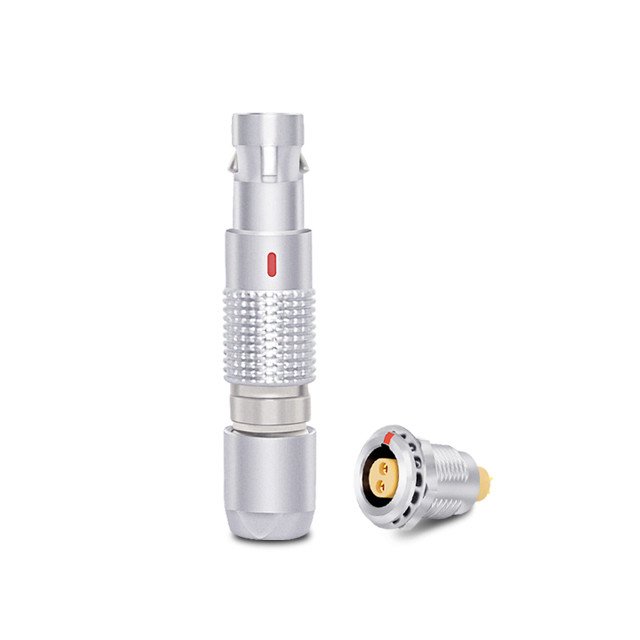

Compatible with LEMO FGG.00.304 CONNECTOR, LEMO 4PINS CONNECTOR
Works with contact requrements 2-7pins.
Better quality at a reasonable price
provide cable connection solution
1) Security of the push-pull self-latching system;
2) Multicore types with 2 to 32 pins; High-density installation for space-saving;
3) Soldering,crimping and PCB contacts
4) Straight or elbow (90 degree)
5) Multiple key options to avoid mismating between similar connectors;
6) 360-degree screening for full EMC protection
7)Keying system(G is standard key) for connector alignment
| LEMO Type | Raymo Type | Pins |
| 0B | 0B | 2 3 4 5 6 7 9 |
| 1B | 1B | 2 3 4 5 6 7 8 10 12 14 16 |
| 2B | 2B | 2 3 4 5 6 7 8 10 12 16 19 20 26 |
| 3B | 3B | 3 4 6 8 9 10 12 14 16 18 21 226 30 32 |
| 4B | 4B | 7 10 24 |
Low voltage push-pull connectors for data, signal, electrical and power use!
Rmeeco connectors are used in instrumentation, medical devices, and anywhere a high density, high reliability, quick mating connector is needed.
These high precision connectors. With a life span greater than 5000 insertions, complete EMC shielding, shock resistance,
vibration resitance, and corrosion resistance this is the highest quality connector on the market.
