| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE / RoHS / SGS / ISO9001:2015 |
| Model Number: | FGG.0B.302.CLAD52 |
| Minimum Order Quantity: | 1 pcs |
| Price: | USD3.6/PC |
| Packaging Details: | PE bag & carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 5000pcs per week |
| Connector Style: | Circular Push Pull Connector | Series: | 0B |
|---|---|---|---|
| Contact No.: | 2pin, 2 Way | Keys: | 1 Key (G, 0 Degrees) |
| IP Rating: | IP50 | Housing Material: | Natural Chrome Plated |
| Application: | Audio Equipment Camera | ||
| Highlight: | chrome plated Push Pull Connector,Push Pull Connector FGG.0B.302.CLAD52,2pin Push Pull Connector |
||
Prct Description RAYMO RM-B FGG Push Pull Connector
P/N: RAYMO FGG.0B.302.CLAD52Z Natural Chrome Plated Right angle Plug Circular Push Pull Connector
Description: 0B serie straight cable mount plug, waterproof push pull connector, 2pin male contact,7.2mm cable collet for OD6.2-7.2mm cable, brass shell with neutral chrome plated, 1 key, 0 degree, nut for a black rubber bend relief,
|

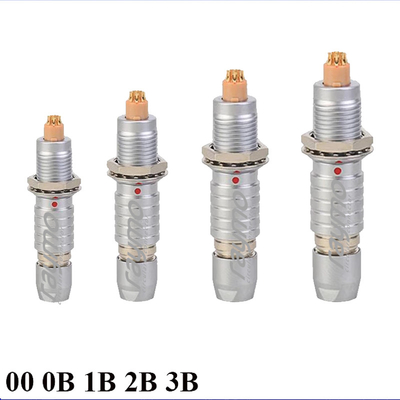

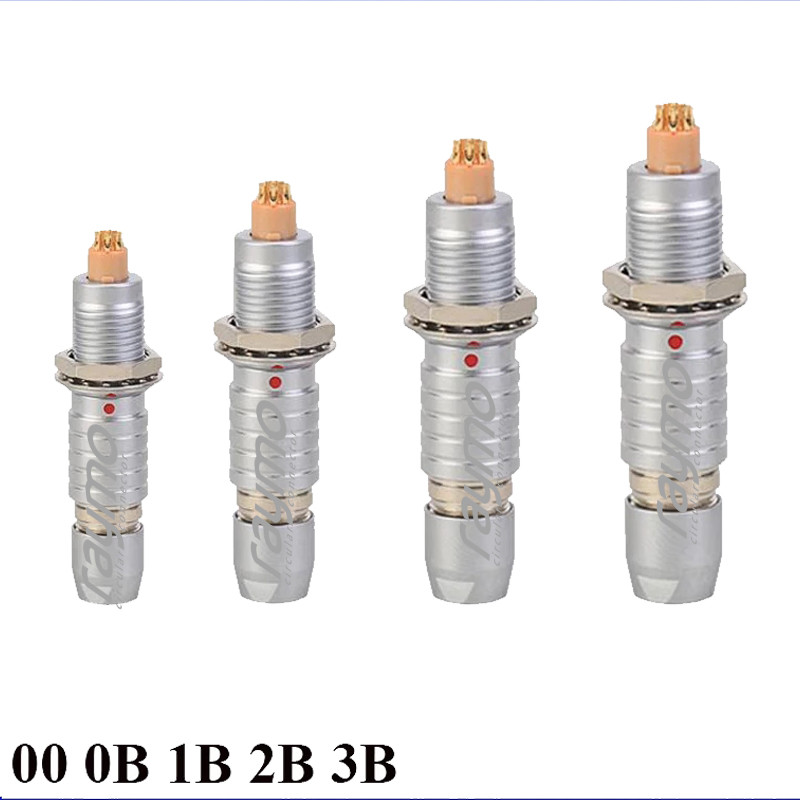

Shell size |
Contacts No. with solder & PCB type |
|
0B |
2 3 4 5 6 7 9pin |
|
1B |
2 3 4 5 6 7 8 10 12 14 16pin |
|
2B |
2 3 4 5 6 7 8 10 12 14 16 19 26pin |
|
3B |
3 4 6 7 8 10 12 14 16 18 21 30 32pin |
Circular Push Pull Connector Main features:
– Security of the Circular Push Pull Connector
– Multipole types 2 to 32 contacts
– Solder or print (straight or elbow) contacts
– Keying system («G» key standard) for connector alignment
– Multiple key options to avoid cross mating of similar connectors
– 360° screening for full EMC shielding
– High packing density for space savings
– Rugged housing for extreme working conditions.
– High quality with reasonable prices
|
Technical Characteristics Raymo Circular Push Pull Connector |
|||
|
Endurance |
>5000 cycles |
Salt spray corrosion test |
>96h |
|
Humidity |
Up to 95% at 60℃ |
Protection Index (mated) |
IP50 |
|
Temperature Range |
-55°C~250°C |
Climatical category |
55/175/21 |
|
Resistance to Vibration |
10-2000Hz,15g |
Shielding |
>95db at 10MHZ >80db at 1GHZ |
|
Shock Resistance |
>100g, 6ms |
Certification |
CE, RoHS, SGS |

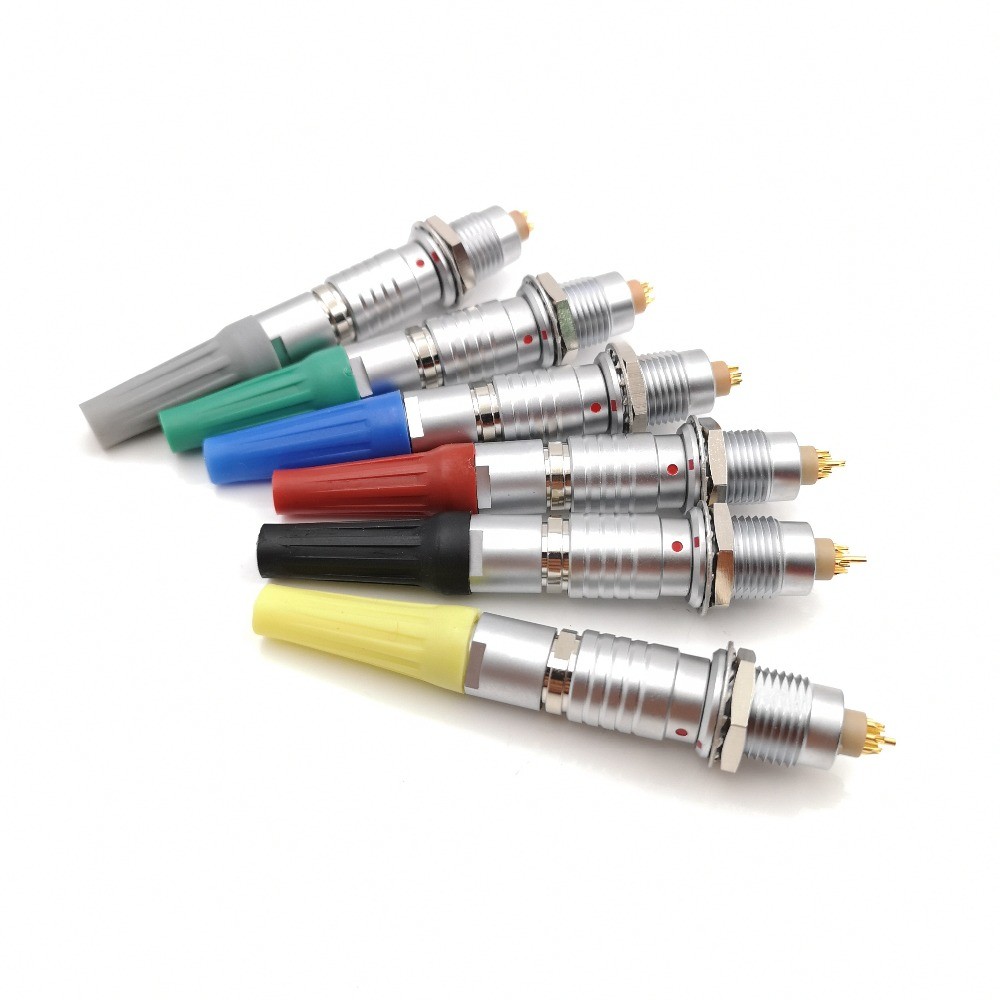

Circular Push Pull Connector Photo & Dimensions:
RAYMO Circular Waterproof Push Pull Connector Application
RAYMO's high quality circular waterproof push pull connectors are found in a variety of challenging applications and environmetns including:
Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines, Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Mle Power, Sensor, Sensor Systems Instrumentation, Analysis Application.
Packing & Delivery for Raymo Circular Waterproof Push Pull Connector
PE bag & Carton
Delivery Time:
1~10pcs: 3~5 working days
11~100pcs: 3~5 working days
101~500pcs: 3~5 working days
501~1000pcs: 3~5 working days
About Raymo Circular Push Pull Connector
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing, Creative customer-oriented metal and plastic circular push pull connectors and cable assemblies to serve over 75 countries and regions since 2010.
With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solutions to meet customer's real needs in this fields.
Aimed on offering customer qualified and suitable connectors and cable assemblies, our factory has already designed and developed over 3,000 types of connectors and 1,000 kinds of OEM cable assemblies based on customer's real needs.
Our Service
1. High Quality: CNC machine, professional engineer, skilful worker, responsible QC ensure our high quality prcts;
2. OEM & ODM: OEM & ODM services are welcome;
3. Sample policy: Free sample & sample order are accepted;
4. Fast delivery: 3~5 working days after receiving payment for normal connectors;
5. Fast Respond: within 24 hours for your inquiry and any other questions;
6. After-sale Service: Follow up your shipment. Provide professional solutions for your questions.
Raymo Circular Push Pull Connector Overseas Exhibitions
2014/04/11-15 HK Fair
2014/10/11-15 HK Fair
2015/10/2-7 ICEEB, Brazil
2016/04/1115 HK Fair
2017/09/11-16 NAB Show, Netherlands
2018/11/13-16 Electronica 2018, Munich, Germany
FAQ About Raymo Circular Push Pull Connector
1. Are your company a professional circular push pull connector manufacturer?
Raymo: Yes, we specialized in prcing Circular Waterproof Connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5. What is your payment terms?
Raymo: 100% T/T prepayment when customer place order .
6. Does your prct have any warranty?
Raymo: Yes, all of our push pull connectors can work normally after 5000 cycles mating; our factory has instruments to test before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
