PG9 M16 Thread Front Fasten Screw Locking Mounting Connector M12 With 5 Pin Molex Connector Jst Housing Wire Harness

Features and Benefits of M16 680 Series circular connector

M12 circular connectors facilitate the simple and cost effective connection of signal, data and power in the automation industry. Raymo M12 series are widely used in many applications of automation, such as sensor& actuator, CANopen, DeviceNET,Profibus,PROFINET, EtherCAT, Ethernet, INTERBUS,CC-Link, Motor servo, Digital camera,Railway process control, and so on.

Specification of M16 680 Series circular connector

Raymo M12 PCB connectors are front and rear bulkhead mounted M12 connectors designed for easy handling on the PCB and

compatibility with wave soldering processes. M12 PCB connectors include an incorporated wire clip with an integrated PCB retention

feature to secure it in the PCB during the reflow process, individual wires come stripped and pre-tinned ready for soldering.

_{General features:}
_Standard	_{IEC 61076-2-101}
_Termination	_{Solder PCB}
_{Connector locking system}	_Screw
_{Degree of protection}	_{IP67, IP68, IP69K}
_{Ambient temperature(operation)}	_{-25°C~+85°C}
_{Mechanical operation}	_{>100 mating cycles}
_{Customs tariff number}	_8538900000
_{Environmental compliance}	_{RoHs, Reach}
_{Electrical parameters:}
_{Rated voltage}	_30V~250V
_{Rated impulse voltage}	_500V
_{Rated current(40°C)}	_1.5A~4A
_{Contact resistance}	_≤5mΩ
_{Insulation resistance}	_≥100MΩ
_Materials:
_{Connector body}	_TPU
_{Male pin}	_{Brass with gold plated}
_{Female pin}	_{Phosphorus copper with gold plated}
_Shell	_{Brass with nickel plated}
_{O-ring material}	_{Fluorine ring}
_{Black glue}	_{Epoxy resin}

Application of M12 Series circular connector

With excellent EMI shielding and an environmental protection rating of IP67 when mated, this robust M12 Screw locking compliant with DIN EN 61076-2-106 connector range is an ideal solution for ensuring that power and signal connections are not compromised in harsh environments and industrial applications.

RAYMO Company Intrce

SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers.

This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military

What is the Difference Between M12 Connector Coding?

A-coded mostly used in sensors, actuators, motors, and most other standard devices. it usually between 2 and 12 pins.
B-coded mostly used in network cables for Fieldbus connections, includes systems that operate with Profibus. it typically have between 3 and 5 pins.
C-coded primarily used with AC sensors and actuators, and also have a dual keyway for added security. it have between 3 and 6 pins.
D-coded typically used in network cables for Ethernet and ProfiNet systems. it transfer data up to 100 Mb and typically provides 3 to 5 pins.
S-coded are for ac power application.
T-coded are for dc power application.
X-coded can transfer large amounts of data up to 10Gb at high speeds, it will always have 8 pins.

Why choose us

lowe your cost,cheap cable assemble oofer,at least save your 30%-50% cost(100% compatible with original and work well)
Large stock,short lead time and easy to buy
We can provide OEM/ODM service and cable assembly solution
it has excellent compatibility with many leading supplier
our company has over 9 years experience and strong professional research and development capabilities.Advanced development and management, comprehensice R&D TESTING and highly automatic prction line make our prcts high reliablilyty and high performance.
Our comapny has passed ISO90001,and got CE, REACH, RoHS and SGS certification

Pictures of M12 Series circular connector

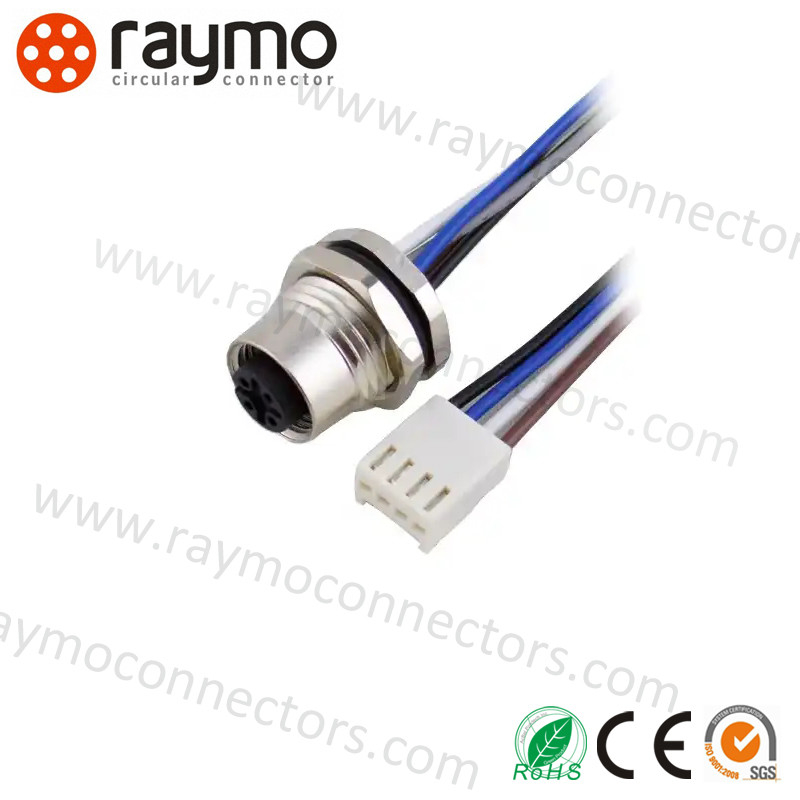

Screw Locking M12 Circular Connector With 5 Pin Molex Connector JST Housing Wire Harness 0

If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!

Tag:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	RAYMO
Certification:	RoHs2.0, CE, ISO9001:2015, SGS, Reach
Model Number:	M12 connector

Minimum Order Quantity:	1 Piece/Pieces
Price:	Negotiable
Packaging Details:	Plastic Bag & Carton
Delivery Time:	5-7working days
Payment Terms:	T/T, D/A, D/P,L/C, MoneyGram, Western Union
Supply Ability:	5000Pieces/ Week

Prct Name:	M12 CIRCULAR CONNECTOR	Connector Locking System::	Screw Locking
Contact No.:	3pins, 4pins, 5pins, 8pins,12pins Are Available	Insulator:	PBT
Shell Material:	Brass In Nicked Plated	Degree Of Protection:	IP 40
Mechanical Operation:	>500 Mating Cycles	Customs Tariff Number:	85369010
Highlight:	Screw Locking M12 Circular Connector , Wire Harness M12 Circular Connector , PBT Insulator M12 Connector
