Mini Snap Circular Connectors Right Angle W1 W2
Feaures of mini snap connector
- Quick and easy mating and demating
- Blind mating and demating in difficult-to-reach places
- Low space requirements on the receptacles
- Definite and secure locking conditions
- Robotic mating and demating possible
- Easy cleaning of the connector plug housing possible
- High connector density
- Low power requirement
Prct Description RAYMO/ mini snap connector

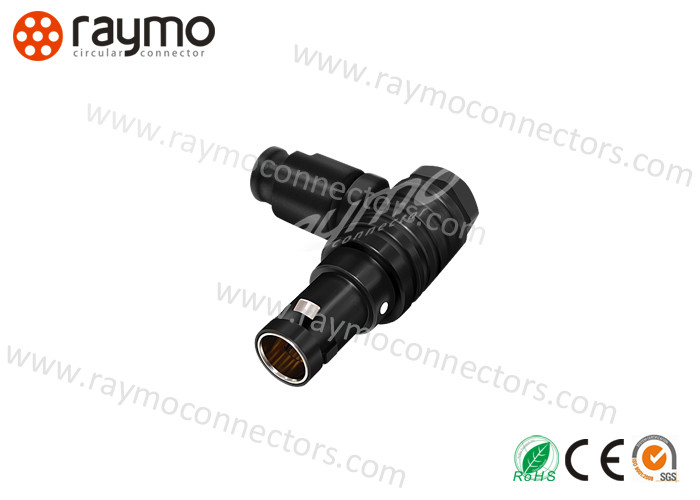

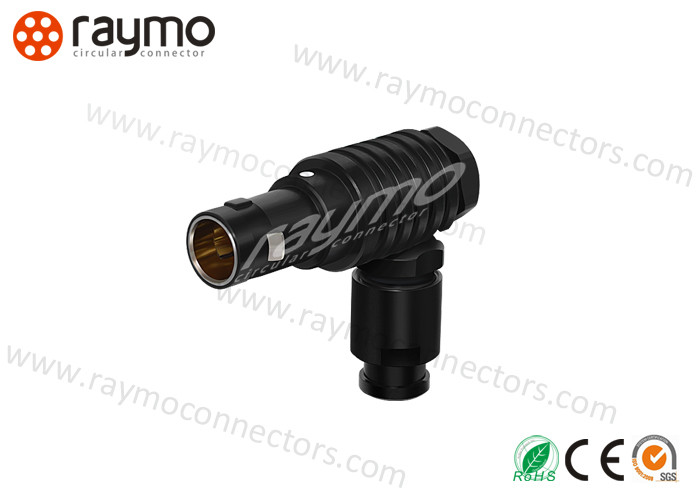

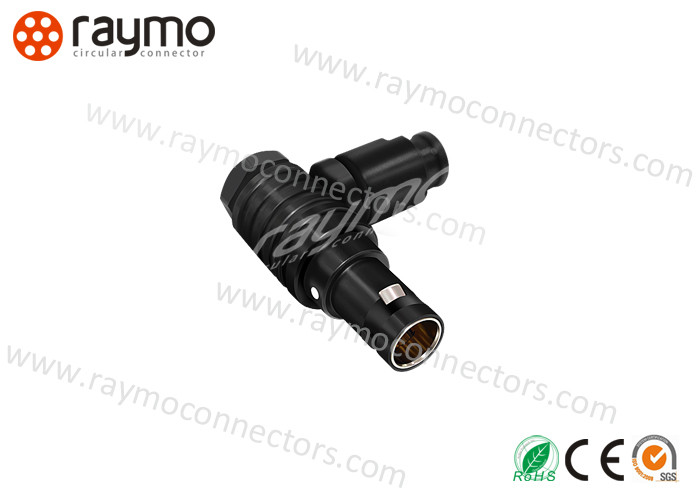

P/N: RM-FHG-1BS-310-JS52Z = 1L 10PINS
Description: right angle W1 connectors, 10pins male solder contacts, shell in black color
|
|
Contacts No. with solder & PCB type
|
|
|
2 3 4 5 6 7 9pin
|
|
|
2 3 4 5 6 7 8 10 12 14 16pin
|
|
|
2 3 4 5 6 7 8 10 12 14 16 19 26pin
|
|
|
3 4 6 7 8 10 12 14 16 18 21 30 32pin
|
| Technical Characteristics Raymo Circular Push Pull Connector |
| Endurance |
>5000 cycles |
Salt spray corrosion test |
>96h |
| Humidity |
Up to 95% at 60℃ |
Protection Index (mated) |
IP50 |
| Temperature Range |
-55°C~250°C
(-20°C~100°C for waterproof type)
|
Climatical category |
55/175/21 |
| Resistance to Vibration |
10-2000Hz,15g |
Shielding |
>95db at 10MHZ
>80db at 1GHZ
|
| Shock Resistance |
>100g, 6ms |
Certification |
CE, RoHS, SGS
ISO9001:2019 |
Our Service
1. High Quality: CNC machine, professional engineer, skilful worker, responsible QC ensure our high quality prcts;
2. OEM & ODM: OEM & ODM services are welcome;
3. Sample policy: Free sample & sample order are accepted;
4. Fast delivery: 3~5 working days after receiving payment for normal connectors;
5. Fast Respond: within 24 hours for your inquiry and any other questions;
6. After-sale Service: Follow up your shipment. Provide professional solutions for your questions.
RAYMO Circular Waterproof Push Pull Connector Application
RAYMO push pull connector series is designed for indoor or vacuum-tight applications, making it an ideal choice for test and measurement instrumentation, medical devices, research, audio/video and applications where a highly reliable, quick-mating connector is needed. Mlar insert configurations include a wide range of high-density or hybrid electrical contacts, including solder, PCB straight or elbow, coax contacts.RAYMO’s proprietary keying system allows for a higher contact density while preventing mismating. This RAYMO push pull connector series includes the family size range of 0B to 5B.
Contact us today to discuss your next application.
Packing & Delivery for Raymo Circular Push Pull Connector
PE bag & Carton
Delivery Time:
1~10pcs: 3~5 working days
11~100pcs: 3~5 working days
101~500pcs: 3~5 working days
501~1000pcs: 3~5 working days
About Raymo Circular Push Pull Connector
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing, Creative customer-oriented metal and plastic circular push pull connectors and cable assemblies to serve over 75 countries and regions since 2010.
With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solutions to meet customer's real needs in this fields.
Aimed on offering customer qualified and suitable connectors and cable assemblies, our factory has already designed and developed over 3,000 types of connectors and 1,000 kinds of OEM cable assemblies based on customer's real needs.
FAQ About Raymo Circular Push Pull Connector
1. Are your company a professional circular push pull connector manufacturer?
Raymo: Yes, we specialized in prcing Circular Waterproof Connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5. What is your payment terms?
Raymo: 100% T/T prepayment when customer place order .
6. Does your prct have any warranty?
Raymo: Yes, all of our push pull connectors can work normally after 5000 cycles mating; our factory has instruments to test before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
