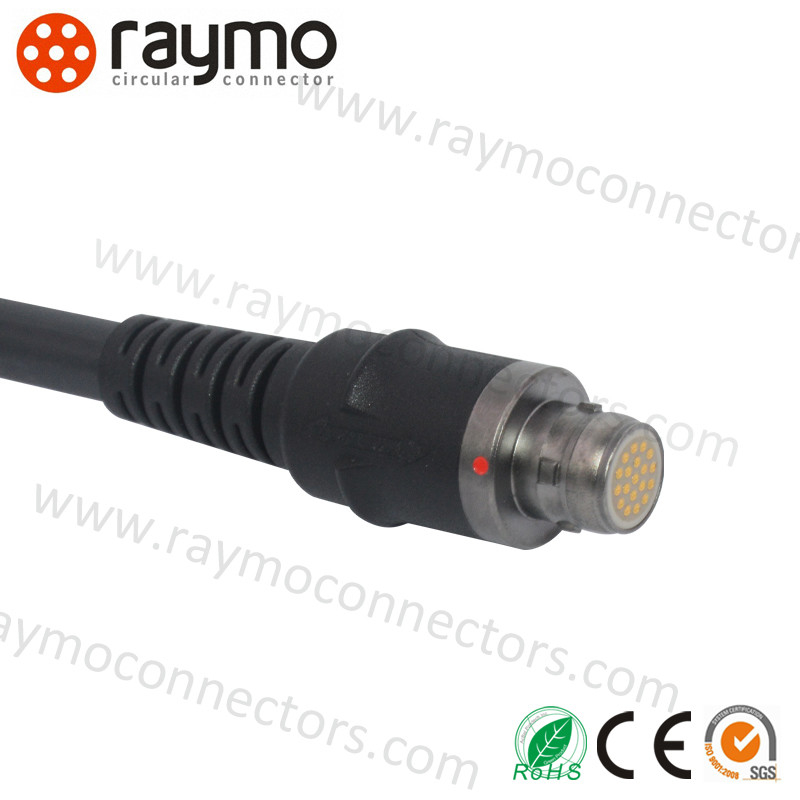

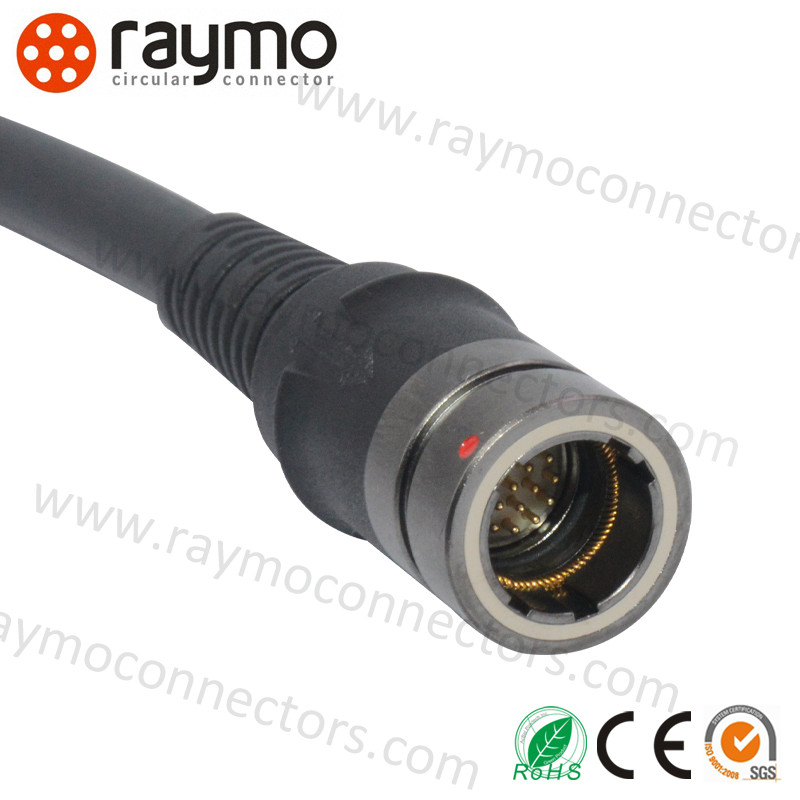

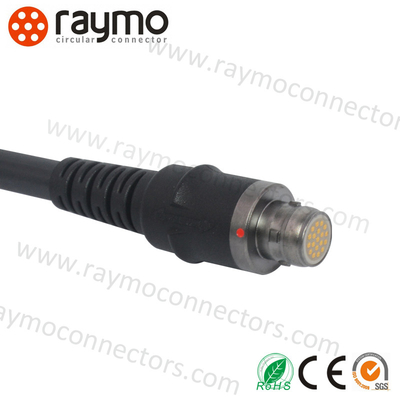

IP69 AMC Push Pin Electrical Connectors Break Easy Way
AMC CIRCULAT CONNECTOR GW1YAR-P16UD00-R00L
Feaures of break easy way pogo pin connector
- Waterproof in accordance with protection class IP69
- Operating temperature range from –51 °C to +125 °C
- 3 – 55 connectors (Push‐Pull), 3 – 37 connectors (Break‐Away)
- High‐speed data technology
- 6 sizes (Push‐Pull), 5 sizes (Break‐Away)
Prct Description RAYMO/ break easy way pogo pin connector
P/N: GW1YAR-P16UD00-R00L
Description: break easy way, 16pins GW type, 16pins waterproof connectors
|
|
Contacts No. with solder & PCB type
|
|
|
7pin
|
|
|
10pin 16pin
|
|
|
19pin
|
| Technical Characteristics Raymo Circular Push Pull Connector |
| Endurance |
>5000 cycles |
Salt spray corrosion test |
>96h |
| Humidity |
Up to 95% at 60℃ |
Protection Index (mated) |
IP50 |
| Temperature Range |
-55°C~250°C
(-20°C~100°C for waterproof type)
|
Climatical category |
55/175/21 |
| Resistance to Vibration |
10-2000Hz,15g |
Shielding |
>95db at 10MHZ
>80db at 1GHZ
|
| Shock Resistance |
>100g, 6ms |
Certification |
CE, RoHS, SGS
ISO9001:2019 |
RAYMO Circular Connector break easy way pogo pin connector Application
RAYMO AMC range includes premium connectors for military and security applications. We can also assemble your chosen prcts to suit your system and master specific challenges. For the cable assembly, you can choose between straight and angled standard overmoldings. The RAYMO AMC prcts are manufactured with two locking options: Push‐Pull or Break‐Away.
Packing & Delivery for Raymo break easy way pogo pin connector
PE bag & Carton
Delivery Time:
1~10pcs: 3~5 working days
11~100pcs: 3~5 working days
101~500pcs: 3~5 working days
501~1000pcs: 3~5 working days
About Raymo Circular break easy way pogo pin connector
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing, Creative customer-oriented metal and plastic circular push pull connectors and cable assemblies to serve over 75 countries and regions since 2010.
With professional R&D and excellent craftsmanship, our factory has the ability of offering customer with much more precision connectors and cable harness solutions to meet customer's real needs in this fields.
Aimed on offering customer qualified and suitable connectors and cable assemblies, our factory has already designed and developed over 3,000 types of connectors and 1,000 kinds of OEM cable assemblies based on customer's real needs.
FAQ About Raymo Circular break easy way pogo pin connector
1. Are your company a professional circular push pull connector manufacturer?
Raymo: Yes, we specialized in prcing Circular Waterproof Connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and worked on www.alibaba.com more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5. What is your payment terms?
Raymo: 100% T/T prepayment when customer place order .
6. Does your prct have any warranty?
Raymo: Yes, all of our push pull connectors can work normally after 5000 cycles mating; our factory has instruments to test before shipping. Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
Our Service
1. High Quality: CNC machine, professional engineer, skilful worker, responsible QC ensure our high quality prcts;
2. OEM & ODM: OEM & ODM services are welcome;
3. Sample policy: Free sample & sample order are accepted;
4. Fast delivery: 3~5 working days after receiving payment for normal connectors;
5. Fast Respond: within 24 hours for your inquiry and any other questions;
6. After-sale Service: Follow up your shipment. Provide professional solutions for your questions.
break easy way pogo pin connector
