| Place of Origin: | SHENZHEN,CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | RoHs2.0, CE, ISO9001:2015, SGS, Reach |
| Model Number: | M12 connector |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | Plastic Bag & Carton |
| Delivery Time: | 5-7working days |
| Payment Terms: | T/T, D/A, D/P,L/C, MoneyGram, Western Union |
| Supply Ability: | 5000Pieces/ Week |

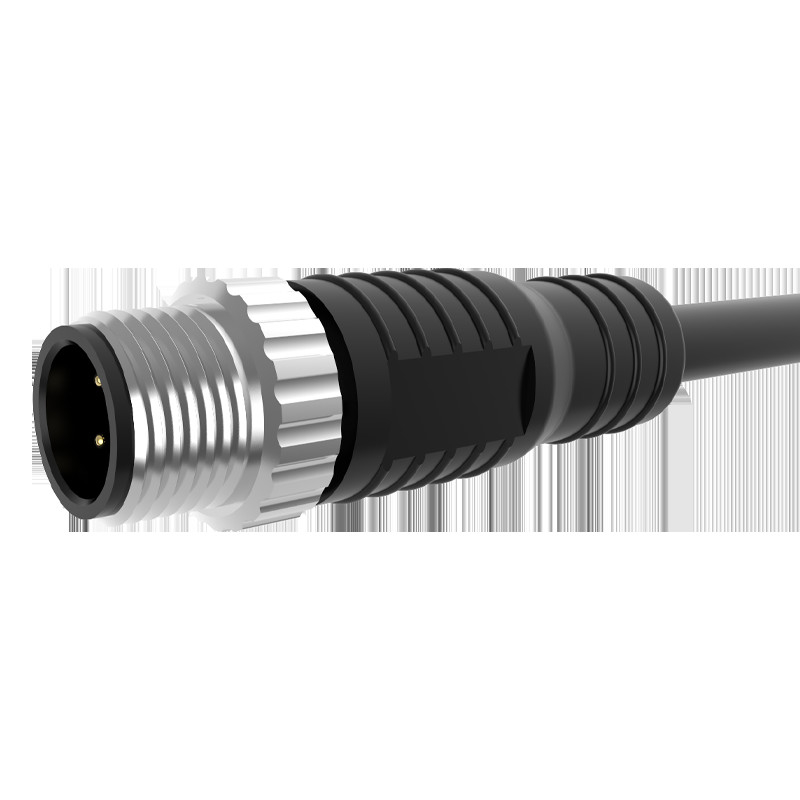

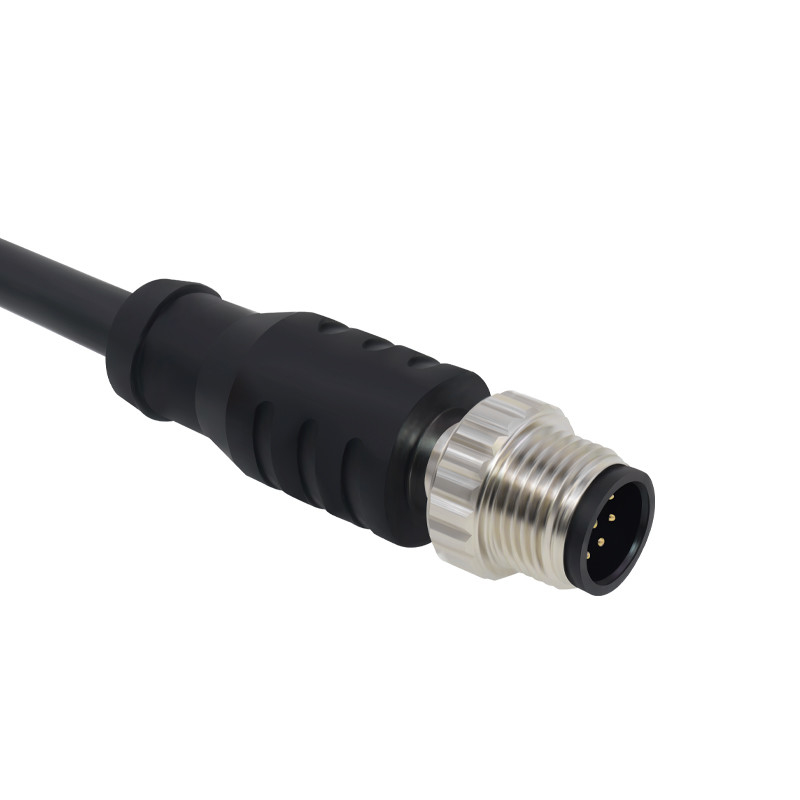

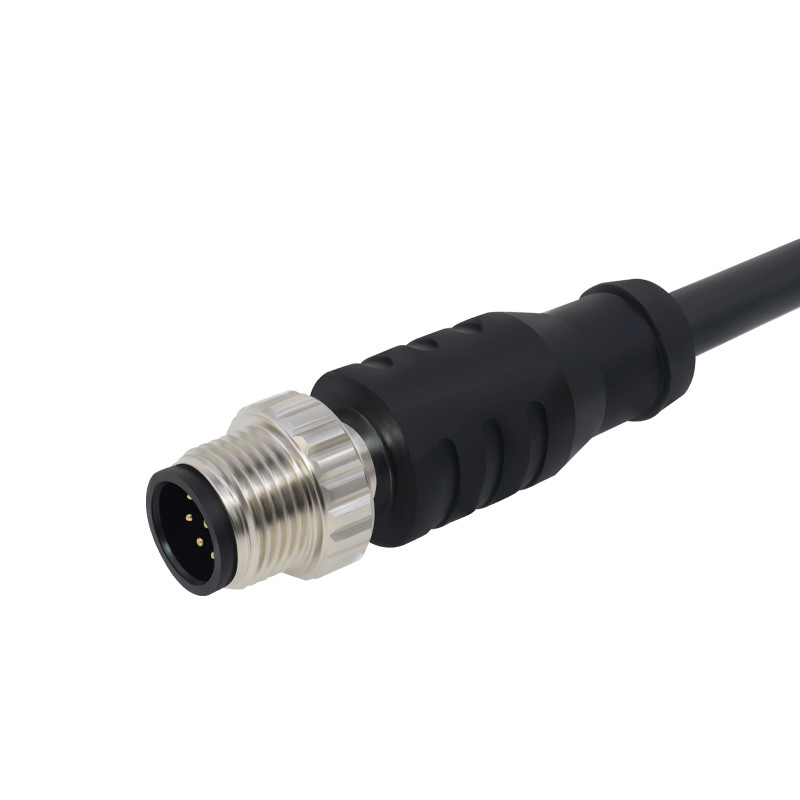

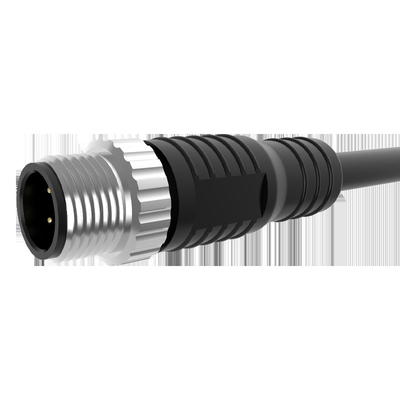

| Prct Name: | M12 Waterproof Connector | Connector Locking System:: | Screw Locking |
|---|---|---|---|
| Contact No.: | 3pins, 4pins, 5pins, 8pins,12pins Are Available | Insulator: | PBT |
| Shell Material: | Brass In Nicked Plated | Application: | Industrial Automation/Automotive |
| Degree Of Protection: | IP 67 | Mechanical Operation: | >500 Mating Cycles |
| Customs Tariff Number: | 85369010 | ||
| Highlight: | Female M12 Cable Connector,Straight Shielded M12 Cable Connector,Waterproof M12 Cable Connector |
||
M12 circular connectors facilitate the simple and cost effective connection of signal, data and power in the automation industry. Raymo M12 series are widely used in many applications of automation, such as sensor& actuator, CANopen, DeviceNET,Profibus,PROFINET, EtherCAT, Ethernet, INTERBUS,CC-Link, Motor servo, Digital camera,Railway process control, and so on.
| General Infomation | |||
|
Standard
|
IEC 61076-2-101
|
Connector Contacts
|
Brass with Gold Plated
|
|
Insulation Resistance
|
≥100MΩ
|
Connector Overmold
|
TPU
|
|
Ambient Temperature
|
-40℃~+80℃ (fixed installation)
|
Coupling Nut/Screw
|
Zinc Alloy with Nickel Plated
|
| -20℃~+80℃ (flexible installation) |
Mating Endurance
|
>500 cycles
|
|
|
Contact Resistance
|
≤5mΩ
|
IP Rating
|
IP68/IP69K in locked condition
|
|
Connector Insert
|
PA
|
Certificate
|
CE/ROHS/IP67/REACH/IP68
|
|
Shielding
|
Available
|
With excellent EMI shielding and an environmental protection rating of IP67 when mated, this robust M12 Screw locking compliant with DIN EN 61076-2-106 connector range is an ideal solution for ensuring that power and signal connections are not compromised in harsh environments and industrial applications.
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers.
This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
