| Place of Origin: | SHENZHEN,CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | RoHs2.0, CE, ISO9001:2015, SGS, Reach |
| Model Number: | M12 female connector |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | Negotiable |
| Packaging Details: | Plastic Bag & Carton |
| Delivery Time: | 5-7working days |
| Payment Terms: | T/T, D/A, D/P,L/C, MoneyGram, Western Union |
| Supply Ability: | 5000Pieces/ Week |

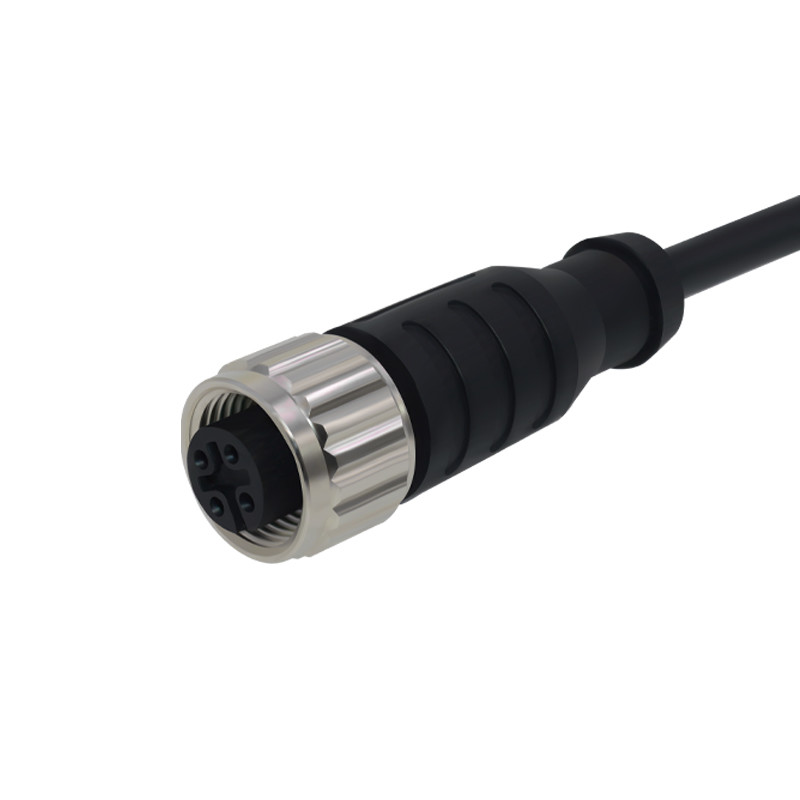

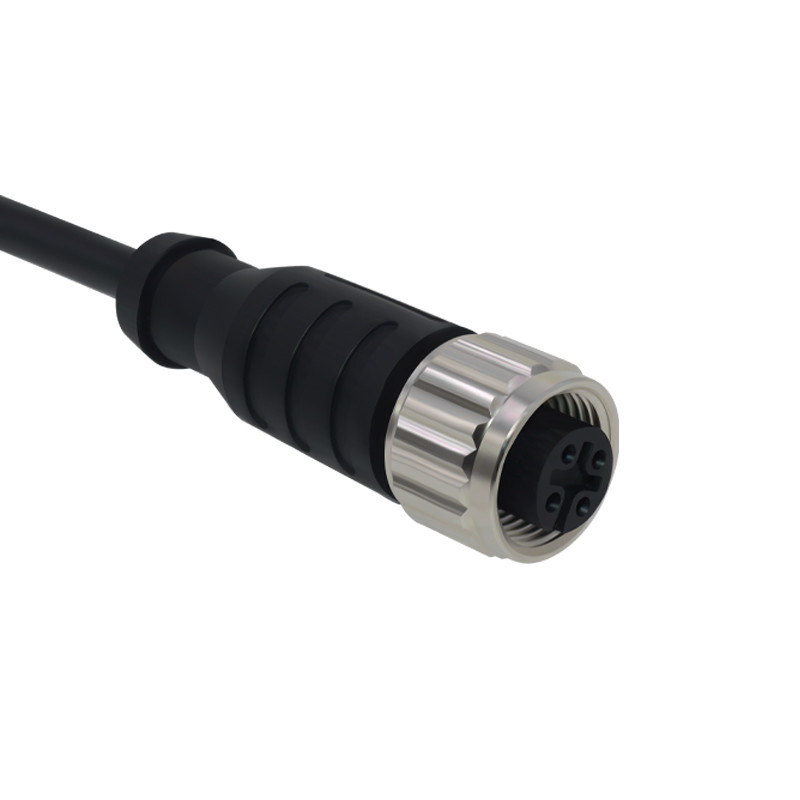

| Prct Name: | M12 Waterproof Connector | Connector Locking System:: | Screw Locking |
|---|---|---|---|
| Contact No.: | 3pins, 4pins, 5pins, 8pins,12pins Are Available | Insulator: | PBT |
| Shell Material: | Brass In Nicked Plated | Code: | A,B,C,D |
| Application: | Test Measurement | Degree Of Protection: | IP 67 |
| Mechanical Operation: | >500 Mating Cycles | ||
| Highlight: | Shielded Female M12 Cable Connector,Binder 4Pin M12 Cable Connector,Waterproof M12 Connector |
||
Features:
● Tailor made material to meet various application conditions
● Gold-plated solid brass or phosphor bronze contacts ≥ 600 times mating life
● Durable cable material suitable for Drag Chain moving and bending demands
● Good stripping and terminating properties
● Sturdy metal coupling screws with anti-vibration design, 48 hours Salt Spray Test
● UV Resistant, Hydrolysis Resistant,Oil resistant
● Temperature Range: Dynamic -25 ~ 80℃, Static: -40 ~ 80℃.
● Protection degree: IP67 in locked status, IP68 base on customer specific requirements.
● RoHS, REACH compliant.
The m12 cable plug prct matched with the m12 socket prct is directly casted in the cable. cable length .
The length can be specified by the user. For example, 1 meter, 2 meters, 5 meters, 10 meters, etc.
Standard M12 plug for bus system, suitable for pressure sensor, photoelectric sensor,The electrical connections of
various sensors such as encoders and instruments are standard parts with strong interchangeability and are available in stock.
M12 can be customized with double male head, double female head, one male and one female, one male to two females, etc., please consult customer service for details
| Standard: | IEC 61076-2-101 |
| Ambient temperature: | -20℃ ~ +80℃ |
| Connector insert: | TPU |
| Connector contacts: | Brass with gold plated |
| Connector over-molding: | TPU |
| Coupling nut/screw: | Zinc alloy with nickel plated |
| Insulation resistance: | ≥100MΩ |
| Contact resistance: | ≤5mΩ |
| Shielding: | Unavailable |
| IP rating: | IP67/IP69K in locked condition |
With excellent EMI shielding and an environmental protection rating of IP67 when mated, this robust M12 Screw locking compliant with DIN EN 61076-2-106 connector range is an ideal solution for ensuring that power and signal connections are not compromised in harsh environments and industrial applications.
M12 circular connectors facilitate the simple and cost effective connection of signal, data and power in the automation industry. Raymo M12 series are widely used in many applications of automation, such as sensor& actuator, CANopen, DeviceNET,Profibus,PROFINET, EtherCAT, Ethernet, INTERBUS,CC-Link, Motor servo, Digital camera,Railway process control, and so on.
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED is a manufacturer located in Shenzhen, focusing on manufacturing Creative customer-oriented metal and plastic circular push-pull self-latching connectors and cable assemblies to serve over 75 countries and regions since 2010. Our prcts got very popular recommendation among our customers.

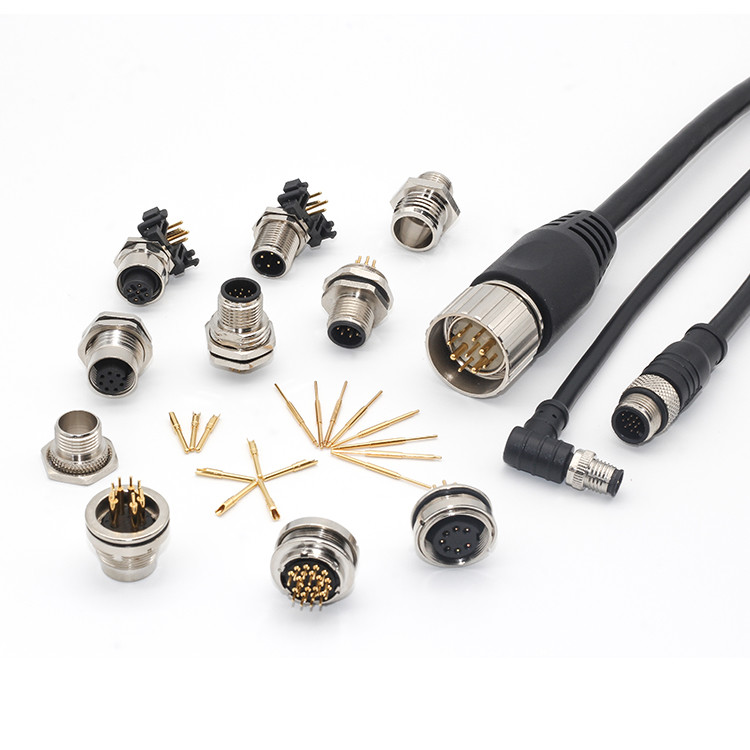

This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
