| Place of Origin: | CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE/ROHS/REACH/SGS/ISO9001 |
| Model Number: | 14.763-FAG-M12G-A12-JSM |
| Minimum Order Quantity: | 1PCS |
| Price: | 1.5-3.1USS |
| Packaging Details: | PE BAG AND CARTON |
| Type:: | M12 A Code Male Connector | Ambient Temperature:: | -25℃~+90℃ |
|---|---|---|---|
| Contact Material:: | Panel Front Mount PCB 4 Pin Die-cast Screw | Insert Material:: | PA66 |
| Certificate: | CE/ROHS/REACH/SGS/ISO9001 | Mating Endurance:: | 500 Cycles |
| Gender:: | Male And Female | Body Material: | Nickel Plated Brass |
| Connector Type: | M12 | Contact Plating: | Gold |
| Current Rating: | 4A | Gender: | Male |
| IP Rating: | IP67 | Mounting Type: | Cable |
| Number Of Contacts: | 4 | Operating Temperature: | -20℃ To +85℃ |
| Prct Name: | M12 Connector (New) | Voltage Rating: | 250V |
| Highlight: | 4 Pin M12 Circular Connector,A Code Male M12 Circular Connector,Mount PCB M12 Circular Connector |
||

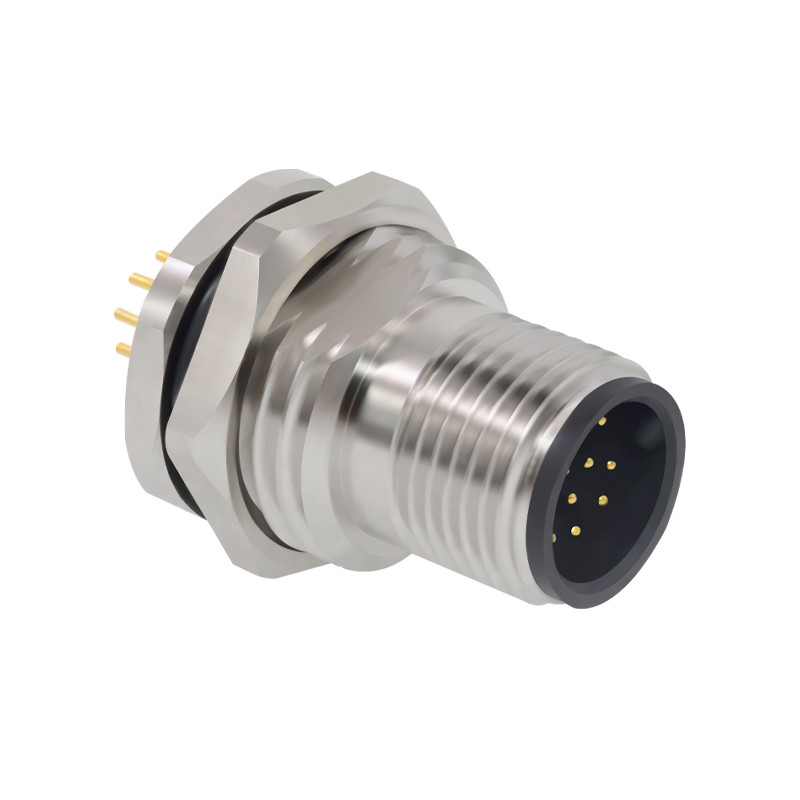

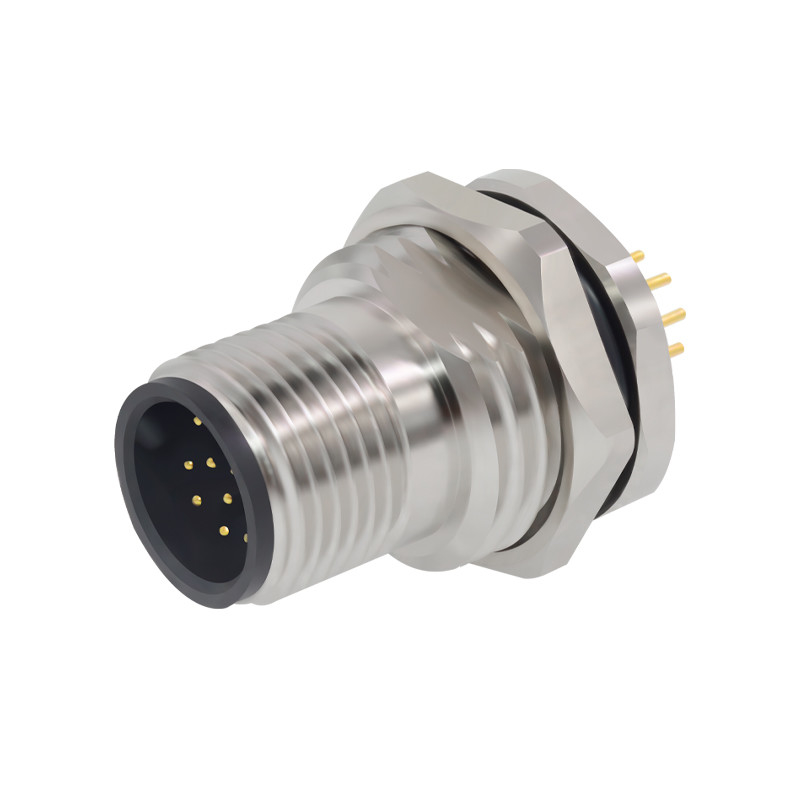

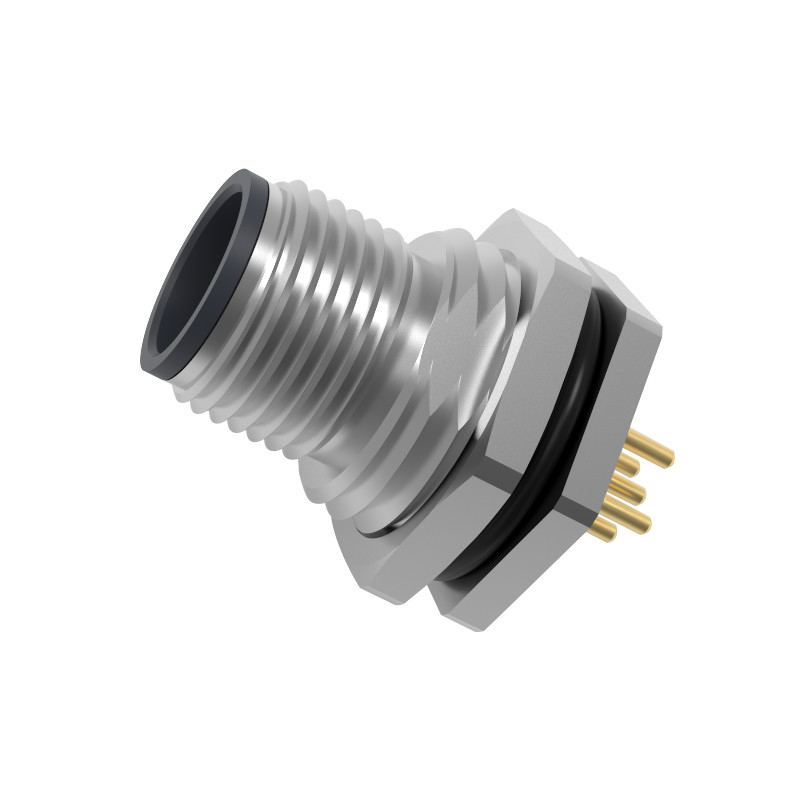

M12 circular connectors facilitate the simple and cost effective connection of signal, data and power in the automation industry. Raymo M12 series are widely used in many applications of automation, such as sensor& actuator, CANopen, DeviceNET,Profibus,PROFINET, EtherCAT, Ethernet, INTERBUS,CC-Link, Motor servo, Digital camera,Railway process control, and so on.
| Standard: | IEC 61076-2-101 |
| Ambient temperature: | -25℃ ~ +90℃ |
| Connector insert: | TPU |
| Connector contacts: | Brass with gold plated |
| Coupling nut/screw: | Brass with nickel plated |
| Seal/O-ring: | Epoxy resin/FKM |
| Insulation resistance: | ≥100MΩ |
| Contact resistance: | ≤5mΩ |
| Shielding: | Unavailable |
| Mount thread: | M12x1.0 |
| IP rating: | IP67 in locked condition |
| Contacts | Available | Rated current | Voltage | Contacts | |
| coding | A/C | D/C | termination | ||
| 03 pins | A/B/C | 4A | 250V | 250V | PCB |
| 04 pins | A/B/C/D | 4A | 250V | 250V | PCB |
| 05 pins | A/B/C | 4A | 60V | 60V | PCB |
| 06 pins | C | 2A | 30V | 30V | PCB |
| 08 pins | A | 2A | 30V | 30V | PCB |
| 12 pins | A | 1.5A | 30V | 30V | PCB |
| 17 pins | A | 1.5A | 30V | 30V | PCB |
A-coded mostly used in sensors, actuators, motors, and most other standard devices. it usually between 2 and 12 pins.
B-coded mostly used in network cables for Fieldbus connections, includes systems that operate with Profibus. it typically have between 3 and 5 pins.
C-coded primarily used with AC sensors and actuators, and also have a dual keyway for added security. it have between 3 and 6 pins.
D-coded typically used in network cables for Ethernet and ProfiNet systems. it transfer data up to 100 Mb and typically provides 3 to 5 pins.
S-coded are for ac power application.
T-coded are for dc power application.
X-coded can transfer large amounts of data up to 10Gb at high speeds, it will always have 8 pins.
