| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | RoHS2.0, ISO:9001-2015, CE , SGS, REACH |
| Model Number: | JY27467T09F35PNH |
| Minimum Order Quantity: | 1piece |
| Price: | Negotiable |
| Packaging Details: | 50pc/CTN |
| Delivery Time: | 5-8 working days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 500pcs/week |
| Prct Name: | Military Circular Connectors | Housing Size: | 09 |
|---|---|---|---|
| Housing Plating: | Electroless Nickel Plating | Contact Size: | 6-22D |
| Mounting Type: | Cable Mount | Termination Method: | Solder |
| Contact Gender: | Male | IP Rating: | IP68 |
| Highlight: | JY27467T09F35PNH Military Circular Connectors,Amphenol Military Circular Connectors,MIL-DTL-38999 Military Circular Connectors |
||

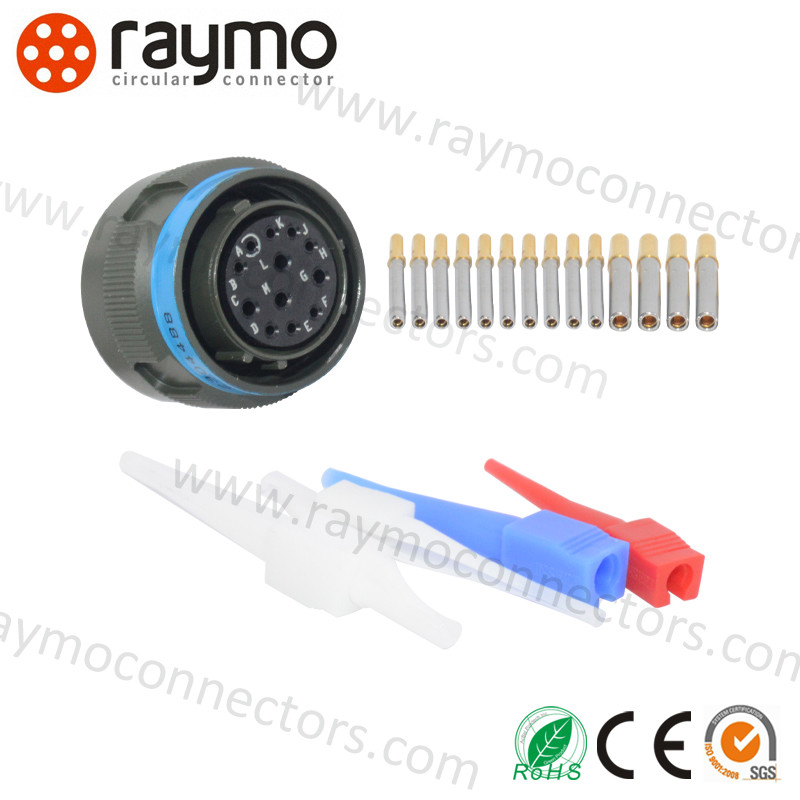

Description for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
GJB599A series are made according to the same standard with MIL-DTL-38999K series. The difference is that: the basic part number of GJB599A is JY, while MIL-DTL-38999K is MS. GJB599A series is interchangeable with MIL-DLT-38999K series..
[Part number example]
JY27467T25E35SN-H JY series plug, threaded shell end, can be mounted with accessory, 25# shell, stainless steel passive plating, 35# layout, filled with sockets, N polarization, soldering contacts.
Specification for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
| Prct attribute | Attribute Value |
| Manufacturer | RAYMO |
| Prct name | Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors |
| Model | JY27467T09F35PNH |
| Contact Gender | pin(male) |
| Contacts | 6-22D |
| Body size | 09 |
| Terminal | Solder |
| Housing plating | electroless nickel plating |
| IP Rating | IP68 |
| Application | military systems such as aviation, aerospace, weapon, and other electronic equipment systems |
Electrical data & Mechanical data for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
| Housing | Aluminum alloy/stainless steel |
| Plating |
B class: olive green cadmium plating E class: stainless steel passive F class: electroness nickel plating |
| Insulator | Thermoset plastic |
| Grommet and seal | Silicon rubber |
| Contact |
Gold-plated copper alloy, crimping, soldering, PCB |
| Endurance | 500 cycles |
| Vibration |
Sinusoid vibration: frequency 10-2000Hz, acceleration: 294m/s2 Random vibration: frequency 100-1000Hz, power spectral density: 1g2/Hz |
| Shock | At 3 ms half sinusoid, peak value |
| Operating temperature |
B class: -65℃～+175℃ E, F class: -65℃～+200℃ |
| Salt spray |
According to method 1001 GJB1217 B class 500h, E class 1000h F class 48h |
| Relative humidity | 98% at 40℃ |
| Operating height | ≤30480m |
Features for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
Application for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
Military systems such as
Our advantage for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors

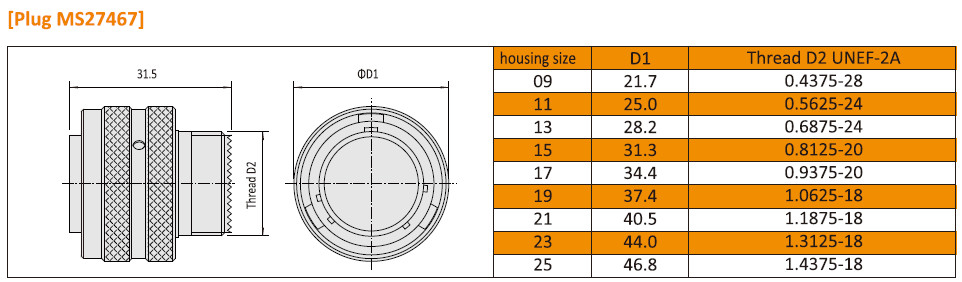

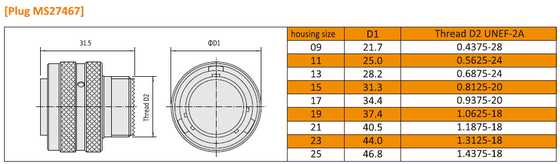

Dimention for Amphenol MIL-DTL-38999 I Series JY27467T09F35PNH Military Circular Connectors
