| Place of Origin: | CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE/ROHS/REACH/SGS/ISO9001 |
| Model Number: | 38999/26WB04PN |
| Minimum Order Quantity: | 1PCS |
| Price: | 5.6-20.3 |
| Packaging Details: | PE BAG AND CARTON |
| Delivery Time: | 5-7 working days |
| Supply Ability: | 50000PCS/month |
| Model Number: | D38999 Connector | Series: | Series I/Series II/Series III/Series IV |
|---|---|---|---|
| Number Of Positions: | 3/4/5/6/8/10/12/13/19/22/37/66/79 Pin | Shell Size: | A/B/C/D/E/F/G/H/J |
| Orientation: | Straight | Type Of Fastening: | Bayonet/Threaded |
| Mounting Feature: | Flange/Bulkhead | Shell Material: | Aluminum Alloy |
| Contant Material: | Copper Alloys | Mechanical Operation: | >500 Mating Cycles |
| IP Rating: | IP67 | ||
| Highlight: | MIL-DTL 38999 circular connector,crimp type circular connector,Amphenol 38999 circular connector |
||

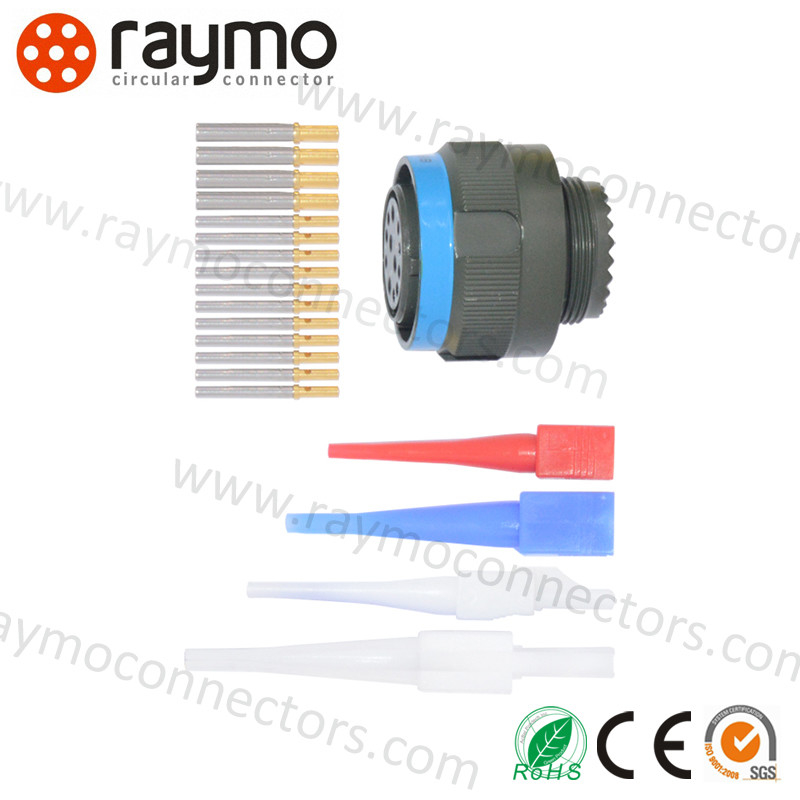

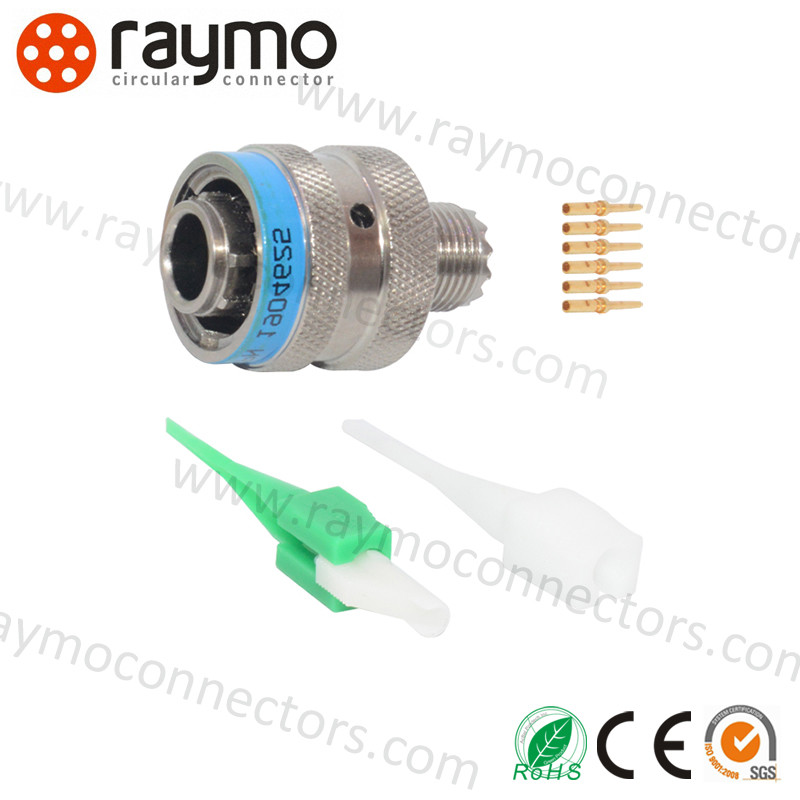

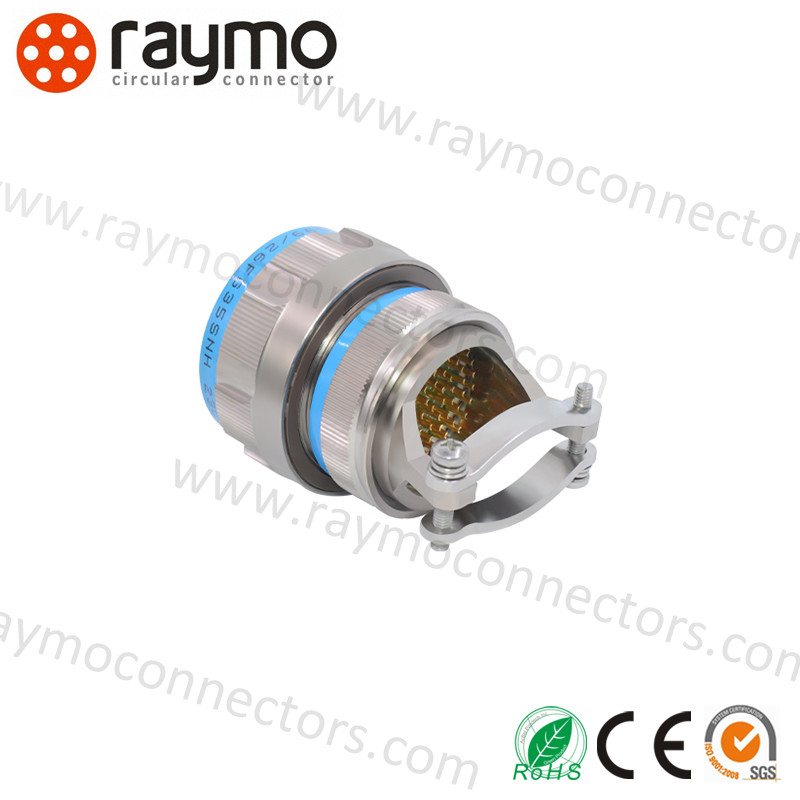

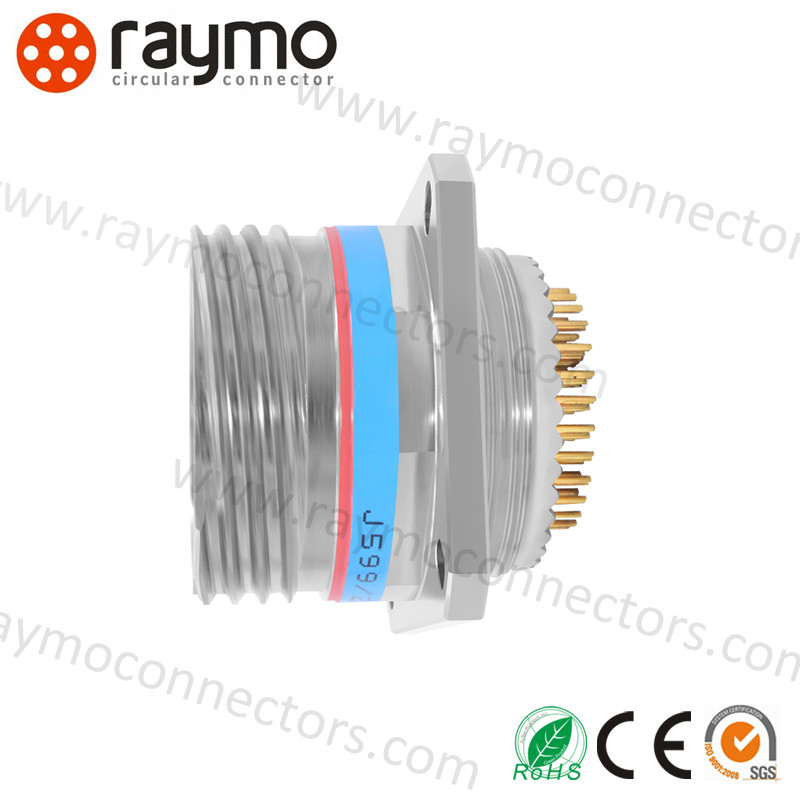

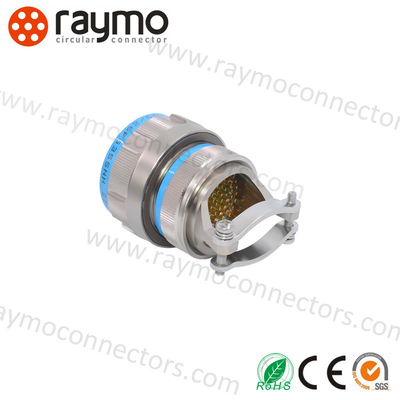

Previously known as MIL-C-38999, MIL-DTL-38999 connectors come in four series: Series I, Series II, Series III and Series IV. They are environmentally resistant connectors that use removable crimp contacts and have an operating range of -65 to +200°C.
Series I connectors are bayonet coupled and have high-vibration properties. They are scoop proof and are ideal for heavy wind and moisture environments. They are utilised when a fast disconnect coupling system is required.
Series II connectors are bayonet coupled, are non-scoop proof, and have a low profile, so are used when weight or space is limited, or in low-vibration, high moisture, and strong wind situations.
Series III connectors are coupled by a quick screw Tri start thread, are scoop proof, and are best suited for normal mating and unmating applications and can be used in high temperature, moisture, wind, or vibration environments when used with the correct accessories. Series III connectors are most commonly use in Aerospace designs.
Series IV connectors are coupled by a Breech-Lok mechanism, are scoop proof, lightweight and suitable for blind mating applications, and they also have high-vibration attributes. They are well suited in high wind and moisture environments when used with the appropriate accessories.
| [Mechanical] | [Electrical] | ||||||
| Housing: | Aluminum alloy/stainless steel | Contact resistance and rating current | |||||
| Plating: | W - olive green cadmium plating | Contact size |
Operating dia.(mm) |
Contact resistance(mΩ) |
Rating current(A) |
||
| F - electroless nickel plating | 22D | Φ0.76 | ≤12 | 5 | |||
| K - stainless steel passive | 20# | Φ1.00 | ≤5 | 7.5 | |||
| Insulator: | Thermoplastic or thermo-set | 16# | Φ1.60 | ≤2.5 | 13 | ||
| Grommet and seal: | Silicon rubber | 16# | Φ2.40 | ≤1.5 | 23 | ||
| Contact: | Gold-plated copper alloy, crimping,soldering, PCB | 10# | Φ3.15 | ≤1.0 | 40 | ||
| Endurance: | 500 cycles | EMI shielding: | |||||
| Vibration: | 60g,with temperature cycling and simulating accessories (36 hours) |
100MHz～1GHz: minimum attenuation 85dB 1GHz～10GHz: minimum attenuation 50dB |
|||||
| Random: under high temperature, frequency 100～1000Hz,power spectrum density 1g2/Hz,rms 41.7g under ambient temperature, frequency 100～1000Hz, power spectrum density 5g2/Hz,rms 49.5g |
Operating environment | ||||||
| Shock: | At 3 ms half sinusoid, peak value of acceleration: 300g | The prcts can be used in harsh environments like strong vibration, rain, sand, damp heat and so on. |
|||||
Military 38999 CONNECTORS Parts Numbering:
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED as a professional in design and manufacture all kinds of connectors and special cables, have accumulated rich experience in development and prction for kinds of cables and its related connector adapter.With RED/Teradek Bond/ARRI Camera Cable, Canon / Sony Camera Power Cable, SDI Cable, USB Cable, Video Cable, CCD Cable... We supply different OEM/ODM services serve as different application and requirement.
Our prcts are widely used in kinds of harsh environment and applications, like industrial control devices, medical equipment, measuring and inspecting equipment, audio & visual equipment and military, etc. Furthermore, it has excellent compatibility with many leading supplier.
We always adhere to the spirit of innovation, continue to intrce new prcts series include M5,M8,M9,M12,M16,M23 and other data connectors.With IP68, ISO9001,Rohs,CE, REACH certificate approved.
All connectors can be customized according customer requets!
We provide comprehensive techical support and service for our Circular Push Pull Connectors. Our team is highly experienced in providing technical solutions for various applications.
Our team is available to assist customers with installation, troubleshooting, and repairs. We also offer on-site assistance and training to ensure that customers are able to use the prct to its fullest potential.
We are dedicated to providing excellent customer service and our team is available 24/7 to answer any questions or provide technical support.
We also offer a wide range of after-sales services, such as warranty extensions and prct upgrades.
If you have any questions or require any assistance, please do not hesitate to contact us.
