| Place of Origin: | CHINA |
|---|---|
| Brand Name: | RAYMO |
| Certification: | CE/ROHS/REACH/SGS/ISO9001 |
| Model Number: | ZH23 |
| Minimum Order Quantity: | 5PCS |
| Price: | 5.6-20.3 |
| Packaging Details: | PE BAG AND CARTON |
| Delivery Time: | 5-7 working days |
| Supply Ability: | 50000PCS/month |
| Series: | Russia ZH23 СНЦ23 Connectors | Contacts: | 3.4.7.10.19.24.28.32.41.43.45.55.61 |
|---|---|---|---|
| Shell Size: | 14.18.22.24.27.30.33.36.39 | Connection Method: | Bayonet Connection |
| Shell Material: | Aluminum Alloy Surface Anodized Treatment | Contact Material: | Copper Alloy With Gold/silver Plating |
| Insulator: | Bakelite | Terminal: | Solder |
| Ambient Temperature: | -60 To +200 °C | Life Sycle: | 500 Times |
| Highlight: | Russian CH23 ZH23 Connector,ZH23 Mil Spec Connector,Silver Plating ZH23 Connector |
||
All types of Circular Connector from OEM Manufacturer in China

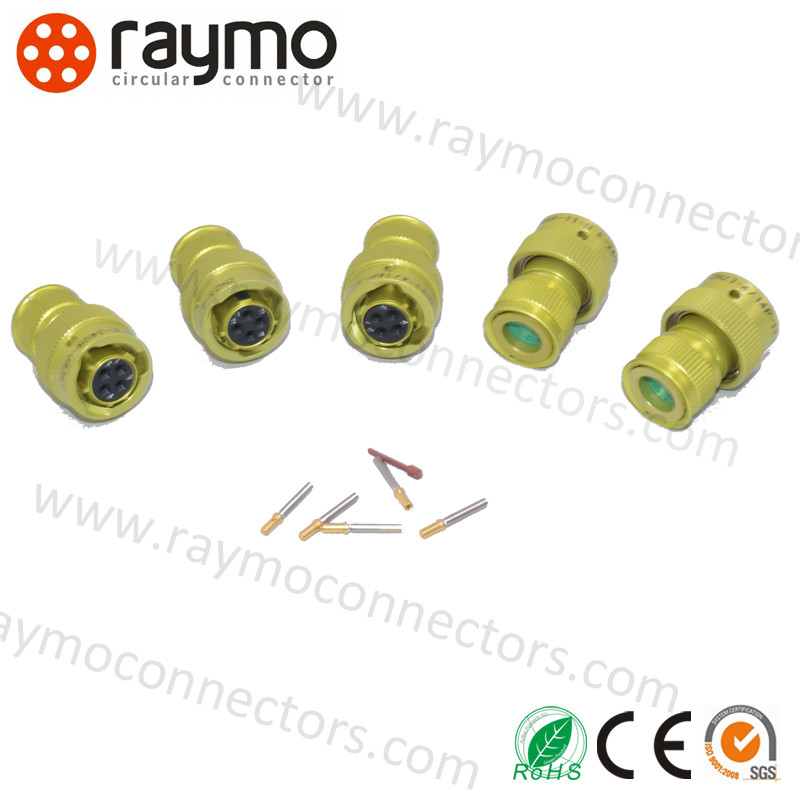

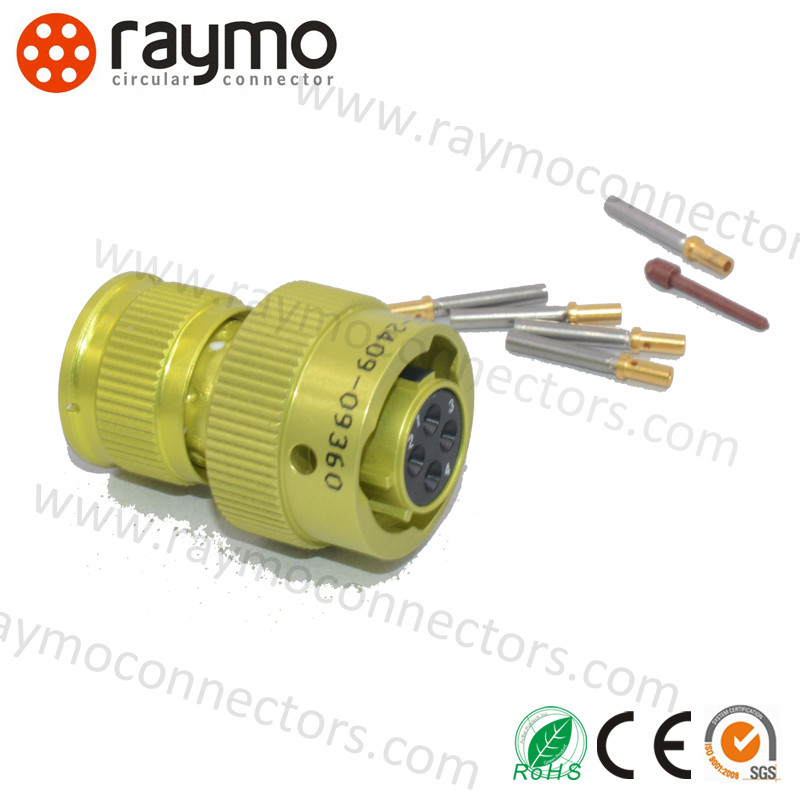

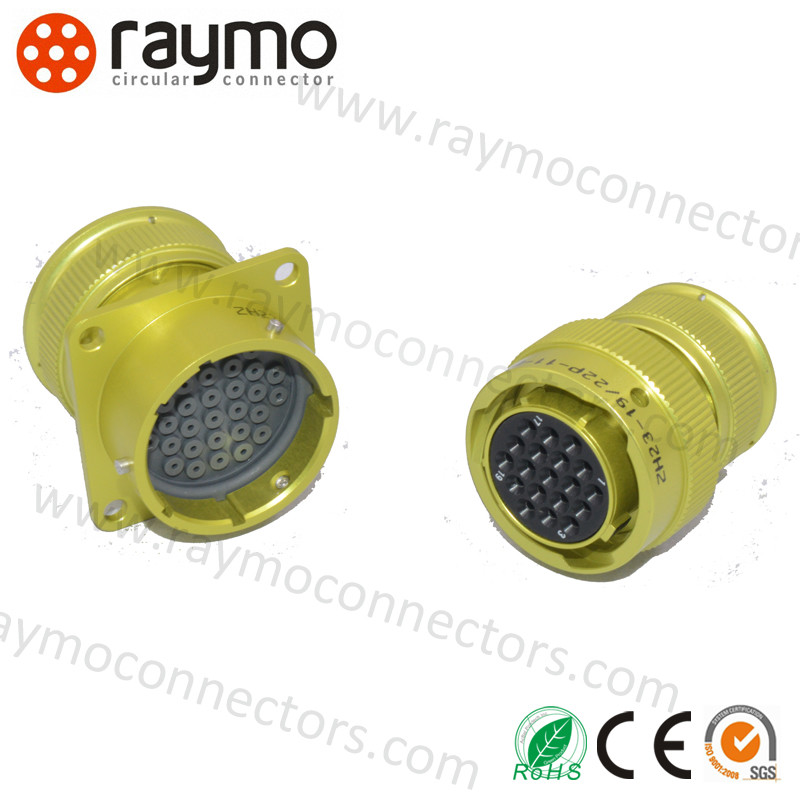

ZH23 Series ENvironment Resistant Bayonet Electrical Connector ZH23 Series(СНЦ23 Russian Military Standard / SNTs23)
ZH23 series bayonet connectors have the characteristics of environmental resistance, five-button positioning, anti-insertion, and bayonet quick connection.Used in low frequency AC and DC circuits.
| Technical Performance | |||||||||
|
Operating Voltage
|
Class | Operating Voltage(V) | Testing voltage(V) | ||||||
| A | 700 | 2100 | |||||||
| B | 500 | 1850 | |||||||
| C | 400 | 1600 | |||||||
| Contact Current | Φ1.0 | Φ1.5 | Φ2.0 | ||||||
| 11A | 20A | 35A | |||||||
| Contact Resistance | Φ1.0 | Φ1.5 | Φ2.0 | ||||||
| ≤7.4 mΩ | ≤2.5 mΩ | ≤1.6 mΩ | |||||||
| No. | Code | Russian Code | China Code |
| 1 | Series | СНЦ23 | ZH23 |
| 2 | Contacts | 3.4.7.10.19.24.28.32.41.43.45.55.61 | 3.4.7.10.19.24.28.32.41.43.45.55.61 |
| 3 | Shell Size(mm) | 14.18.22.24.27.30.33.36.39 | 14.18.22.24.27.30.33.36.39 |
| 4 | Contact Gender | B(Male) | B(Male) |
| P (Female) | P (Female) | ||
| 5 | Connector Type | 1-Socket with simple tail attachment | |
| 2-Socket with straight clamp cable tail attachment | |||
| 4-Socket with angled clamp cable tail attachment | |||
| 6-Plug with straight clamp cable tail attachment | |||
| 8-Plug with angled clamp cable tail attachment | |||
| 11-Plug with simple tail attachment | |||
| 12-Socket with type 09 thermoplastic sleeve type tail attachment | |||
| 13-Plug with type 09 thermoplastic sleeve tail attachment | |||
| 6 | Key Position | Unmarked - standard key position | Unmarked - standard key position |
| а (б, в, г) | а.b.c.d | ||
| 7 | All-climate Version | B | |
| Part Number : | |||
|
Russian
|
Chinese | English | Descripton |
| СНЦ23-3/14В-1-В | zh23-3/14B-1-B | SNTs23-3/14V-1-V | ZH23 Series Shell Size 14 3 Pin Male Socket with Simple Tail Attachment |
| СНЦ23-3/14В-6А-В | zh23-3/14B-6a-B | SNTs23-3/14V-6A-V | ZH23 Series Shell Size 14 3 Pin Male Plug with Straight Tail Attachment (Key Position: A) |
| СНЦ23-3/14В-6-В | zh23-3/14B-6-B | SNTs23-3/14V-6-V | ZH23 Series Shell Size 14 3 Pin Male Plug with Straight Tail Attachment |
| СНЦ23-3/14Р-1А-В | zh23-3/14P-1a-B | SNTs23-3/14R-1А-V | ZH23 Series Shell Size 14 3 Pin Male Socket with Simple Tail Attachment (Key Position: A) |
| СНЦ23-3/14Р-1-В | zh23-3/14P-1-B | SNTs23-3/14R-1-V | ZH23 Series Shell Size 14 3 Pin Female Socket with Simple Tail Attachment |
| СНЦ23-4/14В-1Б-В | zh23-4/14B-1b-B | SNTs23-4/14V-1B-V | ZH23 Series Shell Size 14 4 Pin Male Socket with Simple Tail Attachment (Key Position: B) |
| СНЦ23-4/14В-1-В | zh23-4/14B-1-B | SNTs23-4/14V-1-V | ZH23 Series Shell Size 14 4 Pin Male Socket with Simple Tail Attachment |
| СНЦ23-4/14В-2-В | zh23-4/14B-2-B | SNTs23-4/14V-2-V | ZH23 Series Shell Size 14 4 Pin Male Socket with Straight Tail Attachment |
| СНЦ23-4/14В-6Б-В | zh23-4/14B-6b-B | SNTs23-4/14V-6B-V | ZH23 Series Shell Size 14 4 Pin Male Plug with Straight Tail Attachment (Key Position: B) |
| СНЦ23-4/14В-6-В | zh23-4/14B-6-B | SNTs23-4/14V-6-V | ZH23 Series Shell Size 14 4 Pin Male Plug with Straight Tail Attachment |
| СНЦ23-4/14В-8-В | zh23-4/14B-8-B | SNTs23-4/14V-8-V | ZH23 Series Shell Size 14 4 Pin Male Plug with Angled Tail Attachment |
| СНЦ23-4/14В-11-В | zh23-4/14B-11-B | SNTs23-4/14V-11-V | ZH23 Series Shell Size 14 4 Pin Male Plug with Simple Tail Attachment |
| СНЦ23-4/14В-13Б-В | zh23-4/14B-13b-B | SNTs23-4/14V-13B-V | ZH23 Series Shell Size 14 4 Pin Male Plug with Type 09 Thermoplastic Sleeve Type Tail Attachment (Key Position: B) |
| СНЦ23-4/14Р-1-В | zh23-4/14P-1-B | SNTs23-4/14R-1-V | ZH23 Series Shell Size 14 4 Pin Female Socket with Simple Tail Attachment |
| СНЦ23-4/14Р-2Б-В | zh23-4/14P-2b-B | SNTs23-4/14R-2B-V | ZH23 Series Shell Size 14 4 Pin Female Socket with Straight Tail Attachment (Key Position: B) |
| СНЦ23-4/14Р-8-В | zh23-4/14P-8-B | SNTs23-4/14R-8-V | ZH23 Series Shell Size 14 4 Pin Female Plug with Angled Tail Attachment |
