| Place of Origin: | Shenzhen, Guangdong, China |
|---|---|
| Brand Name: | RAYMO |
| Certification: | RoHS, Reach, SGS, ISO:9001-2015 |
| Model Number: | ОНЦ-БС-1-4/10-Р12-1-В, OHS-BC-1-4/10-P2-1-В |
| Minimum Order Quantity: | 1 Piece/Pieces |
| Price: | 4.99-12.99USD/piece |
| Packaging Details: | PE Bag & Carton |
| Delivery Time: | 7days |
| Payment Terms: | Western Union, T/T , MoneyGram, D/P, D/A, MoneyGram, L/C |
| Supply Ability: | 5000Pieces/ Week |
| Prct Name: | Russian ОНЦ-БС-1 Series Connector | Substitute To: | Amphenol ONTS-BS-1 Series |
|---|---|---|---|
| Substitutes To: | China OHS-BC-1 Series | Connector Type: | Female Plug |
| Contact Number: | 4 | Shell Size: | 10 |
| Highlight: | Russian military female straight plug,Female Straight Plug With Tail,ОНЦ-БС-1-4/10-Р12-1-В |
||
Russian military ОНЦ-БС-1-4/10-Р12-1-В female straight plug with tail Description
OHS series bayonet ultra-small connectors mainly adopt Russian connector technology.
The coupling mode of the connector is bayonet type. The socket has no tail attachment and the plug has a straight plastic tail attachment. At the same time, it can be matched and interchanged with the original parts of the Russian ОНЦ-БС-1(2) series and Amphenol ONTS-BS series.
Russian military ОНЦ-БС-1-4/10-Р12-1-В female straight plug with tail main features:
Compact Size: Ideal for applications where space is limited.
High Performance: Capable of handling high data rates and power levels despite its small size, making it suitable for a wide range of applications.
Durable Construction: Constructed of high-quality materials to ensure long service life, even in harsh environments.
Easy Installation: Enables quick and easy installation and disassembly, saving time and effort during assembly and maintenance.
Russian military ОНЦ-БС-1-4/10-Р12-1-В female straight plug with tail Parameter
|
Category |
Military Circular Connectors |
|
Part number |
OHS-BC-1-7/12-B1-1-B |
|
Connector Type |
Receptacle |
|
Orientation |
Hermetic Square flange |
|
Contact Type |
Male Pin |
|
Number of Positions |
7 |
|
Fastening Type |
Threaded |
|
Mounting Type |
Panel Mount |
|
Contact Termination |
Crimp |
|
Protection Rating |
IP67 |
Russian part number and Raymo part number reference for Russian military ОНЦ-БС-1-4/10-Р12-1-В female straight plug with tail
1- without tail model part number
| Russia P/N | China P/N | Amphenol P/N |
| ОНЦ-БС-1-4/10-В1-1-В | OHS-BC-1-4/10-B1-1-В | ONTS-BS-1-4/10-V1-1-V |
| ОНЦ-БС-1-7/12-В1-1-В | OHS-BC-1-7/12-B1-1-В | ONTS-BS-1-7/12-V1-1-V |
| ОНЦ-БС-1-10/14-В1-1-В | OHS-BC-1-10/14-B1-1-В | ONTS-BS-1-10/14-V1-1-V |
| ОНЦ-БС-1-19/18-В1-1-В | OHS-BC-1-19/18-B1-1-В | ONTS-BS-1-19/18-V1-1-V |
| ОНЦ-БС-1-32/22-В1-1-В | OHS-BC-1-32/22-B1-1-В | ONTS-BS-1-32/22-V1-1-V |
| ОНЦ-БС-1-50/27-В1-1-В | OHS-BC-1-50/27-B1-1-В | ONTS-BS-1-50/27-V1-1-V |
2- with unsheild sraight tail model part number
| Russia P/N | China P/N | Amphenol P/N |
| ОНЦ-БС-1-4/10-Р12-1-В | OHS-BC-1-4/10-P2-1-В | ONTS-BS-1-4/10-R12-1-V |
| ОНЦ-БС-1-7/12-Р12-1-В | OHS-BC-1-7/12-P2-1-В | ONTS-BS-1-7/12-R12-1-V |
| ОНЦ-БС-1-10/14-Р12-1-В | OHS-BC-1-10/14-P2-1-В | ONTS-BS-1-10/14-R12-1-V |
| ОНЦ-БС-1-19/18-Р12-1-В | OHS-BC-1-19/18-P2-1-В | ONTS-BS-1-19/18-R12-1-V |
| ОНЦ-БС-1-32/22-Р12-1-В | OHS-BC-1-32/22-P2-1-В | ONTS-BS-1-32/22-R12-1-V |
| ОНЦ-БС-1-50/27-Р12-1-В | OHS-BC-1-50/27-P2-1-В | ONTS-BS-1-50/27-R12-1-V |
Russian military ОНЦ-БС-1-4/10-Р12-1-В female straight plug with tail tecnical performance
|
Contact resistance |
≤5mΩ |
|
Insulation resistance |
≥1000MΩ(in normal situation) |
|
Ambient temperature |
’-60℃~85℃ |
|
Vibration |
1-5000HZ 20g |
|
Shocking |
once 1000g, repeatedly 100g |
|
Contact diameter |
ø1.0mm |
|
Mechanical life |
250times |
|
Working time |
5000hours |

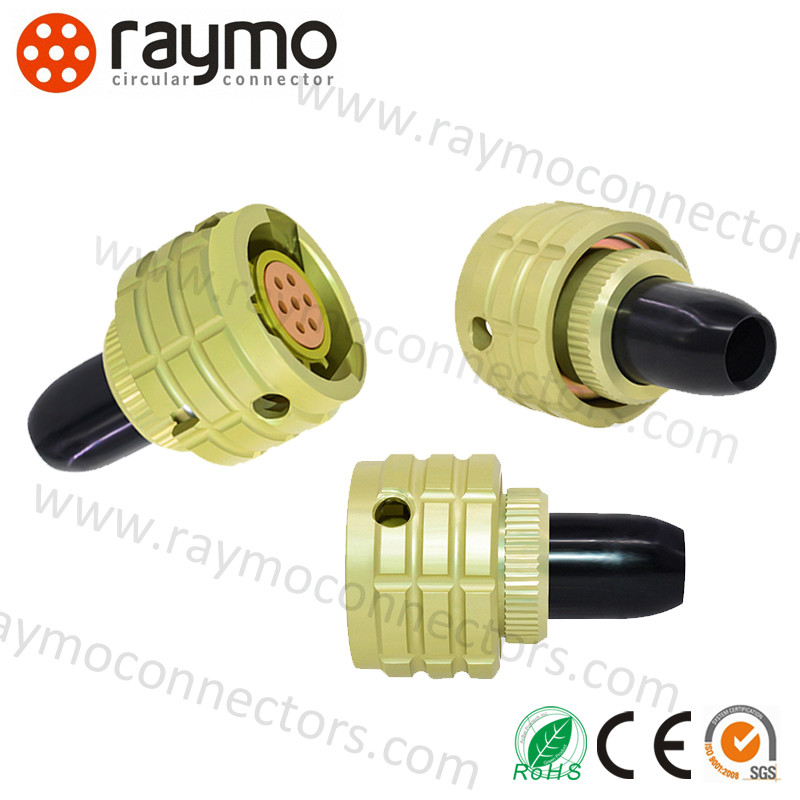

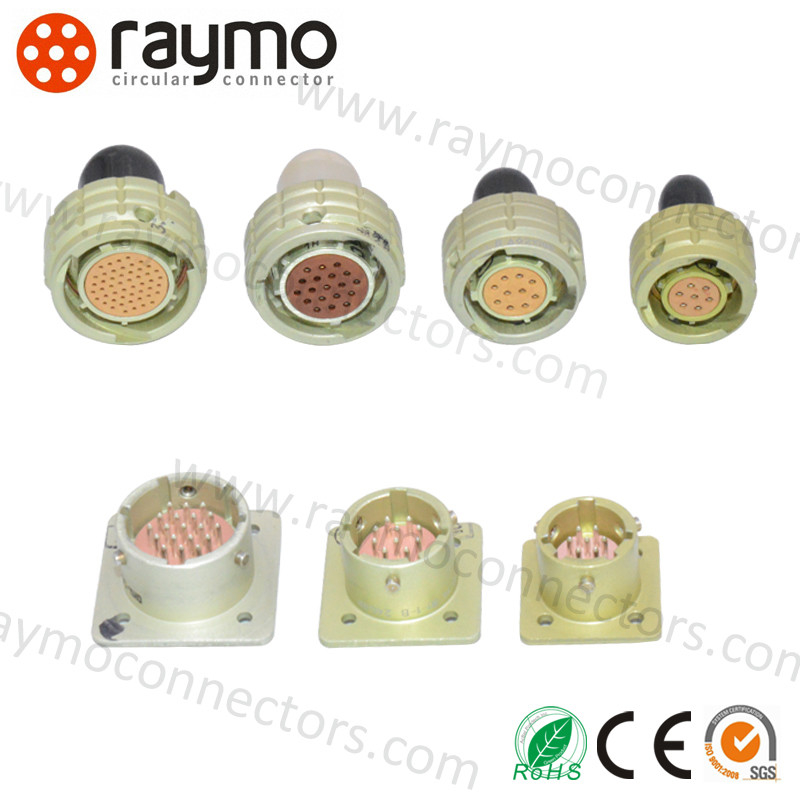

Russian military ОНЦ-БС-1-4/10-Р12-1-В female straight plug with tail pictures
Russian military ОНЦ-БС-1-4/10-Р12-1-В female straight plug with tail Application
This vast portfolio enables you to select the ideal connector configuration to suit almost any specific requirement in most markets inclyding medical devices, test and measurement instruments, machinery, audio video broadcast, telecommunications and military
