High Performance waterproof J30J Series Micro-D MIL-Spec Connectors Description
Raymo J30J series are small, high-density connectors used where standard d-sub connectors had typically been used, but size and weight are of concern.
It is equivalent to ITT Cannon MDM series MIL-DTL-83513 micro-D connectors.
High Performance waterproof J30J Series Micro-D MIL-Spec Connectors main features:
-
This series is equivalent to USA MDM series;
-

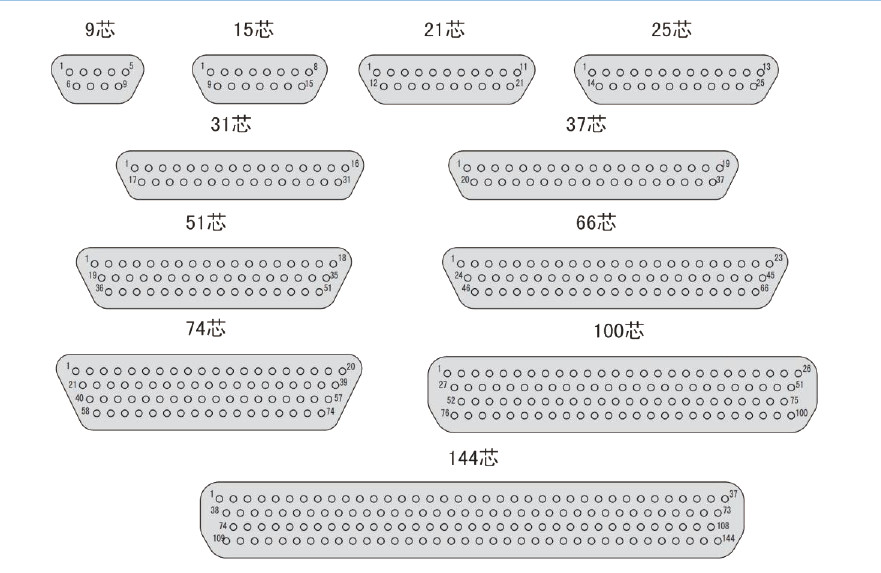

Nine types :9, 15, 21, 25, 31, 37, 51, 74, 100;
-
Mated wire section area: 0.1～15 mm2;
-
This series employs high-density flexible pins;
-
Meeting the requirements of GJB2446 “Polarized shell, micro miniature rectangular electrical connector general specification” (equivalent to MIL-C-83513);
High Performance waterproof J30J Series Micro-D MIL-Spec Connectors Parameter
|
Category
|
ITT Cannon MDM series micro-D connectors
|
|
Part number
|
J30J-15TJ
|
|
Connector Type
|
Plug
|
|
Orientation
|
Hermetic Square flange
|
|
Contact Type
|
Male Pin
|
|
Number of Positions
|
15
|
|
Mounting Type
|
Panel Mount
|
|
Contact Termination
|
Solder
|
|
Protection Rating
|
IP67
|
High Performance waterproof J30J Series Micro-D MIL-Spec Connectors tecnical performance
|
Test Voltage
|
600 Vac a t son level
150 Vac at 70,000 feet (23410 meters)
|
|
Current Rating
|
3 Ampo
|
|
Contact Resistance
|
’8 milliohms maximum at 3 amps
10 milliohns maximum at 1 milliamp:ML-STD-202 Method 307
|
|
Insulation Resistance
|
5000 megaohms minimum at 500 Vdo
|
|
Magnetic Permeability
|
2.0μ(connectors less hardware)
|
|
Thermal Vacuum
|
per NASA SP-R-0022(space class only)
|
|
Mating Life
|
500 cycles minimum
|
|
Salt Spray
|
48 hours ML-STD-1344 Method 1001 Condition B
|

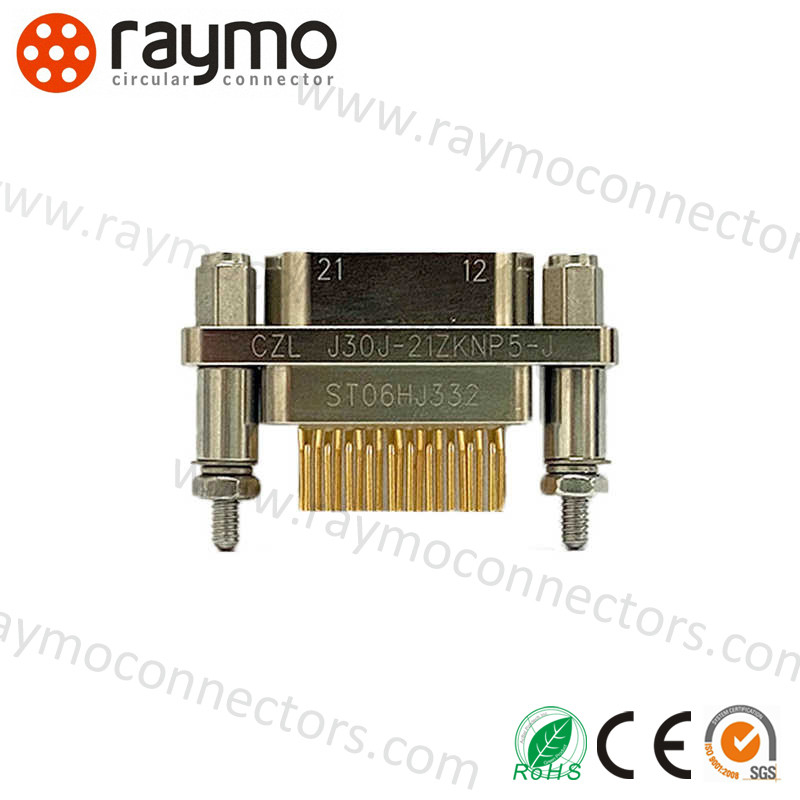

High Performance waterproof J30J Series Micro-D MIL-Spec Connectors pictures
High Performance waterproof J30J Series Micro-D MIL-Spec Connectors Application
* Avionics, radars
* Missiles and guidance systems
* Telecommunication systems
* Navigation systems
* Research centers
