Name: J30j Series Rectangular Electrical Connectors with 9 Contacts D-SUB Micro-D Connectors and Durable
Brand: Shenzhen Raymo Electronics Technology Limited
SKU: J30J-15ZK
Price: 2.1 USD
Availability: InStock

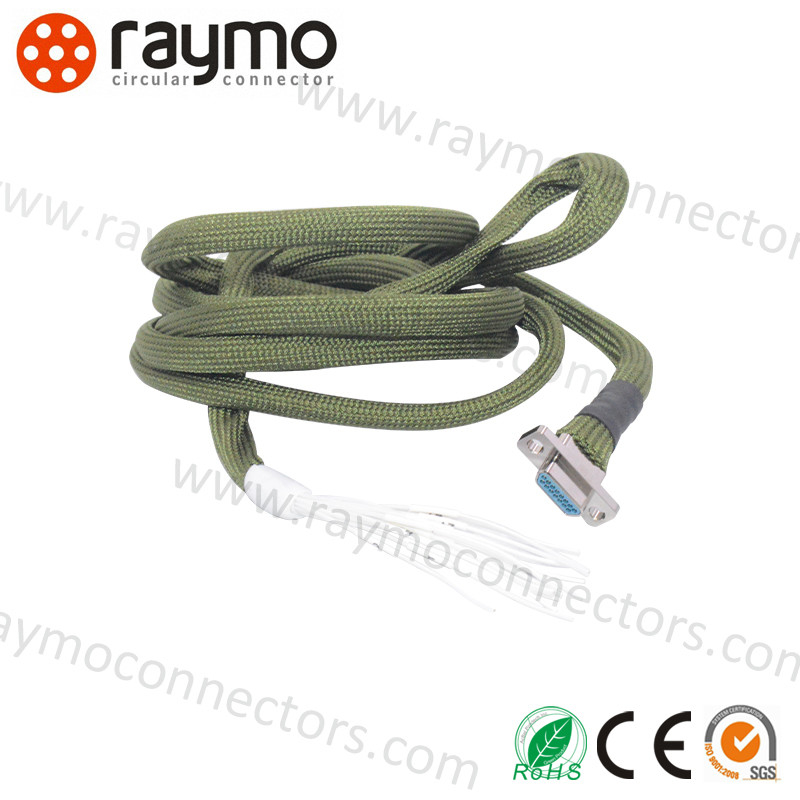

J30J Series Rectangular Connector

INTERMATEABLE WITH MDM SERIES /MIL-DTL-83513 /Glenair Mwdm /Amphenol Series 100 CONNECTOR

J30J Series, (formerly MIL-C-83513) describes polarized shell, micro-miniature, rectangular electrical connectors with solder or non-removable crimp contacts. Featuring of high current capability, low contact resistance, high dielectric strength and excellent resistance to shock and vibration, while offering a high pin density, small size and lightweight body, the MIL DTL 83513 connector meet the severe requirements of different applications and harsh environments, which is mechanically robust and durable. The connector is often referred to as a Micro-D connector system, which can be applied to a multitude of systems including aerospace avionics, radars, advanced soldier technology systems, Global Positioning Systems, medical devices and down-hole drilling tools, etc., in which weight, miniaturization or signal transmission integrity are paramount.

J30J series Rectangular Connector characteristics and features

1 .Corresponding to American MDM series products；

2.NO. of contact: 9,15,21,25,31,37,51,66,69,74,100,144 core；
3.twist pin, high contact density；Sectional area of wire core 0.035mm2～0.2mm2, suggest to select 0.1mm2～0.15mm2；Lock parts of this series product are assembled and supplied together with products according to order requirement. Please indicate in the contract
4..Product performance meet demand of GJB2446 ( equivalent to MIL—C-83513)executive enterprise standard:Q/FY QJ0001-2010

Environmental temperature	-55～+125℃	Contact resistance	≤10mΩ
Relative humidity	+40℃ up to 95%	Insulation resistant	≥5000MΩ
vibration	10～2000Hz 196m/s2	Dielectric withstand voltage	800V
shock	735m/s²	Mechanical Life	500 times
total acceleration RMS	23.1G	Instant break time	≤1μs
current rating	3A

J30J series Rectangular Connecto parts numbering

	J30J	X	-15	ZK	X	P	- G	AD
Main code:	J30J
J30J series
Variations:
No designator-basic type,
C-The outer material is tin phosphor copper and plating nickel,
D-Mounting hole changed for M2-6H,
M-Sealed with glue
Number of contacts:			15
9, 15, 21, 25, 31, 37, 51, 74, 100
Connector and contact type:				ZK
TJ- plug with pins,
ZK- Receptacle with socket,
TJ/ZK is fixation combination
Type of contact terminal:
Null-Crimp,
S-Solder,

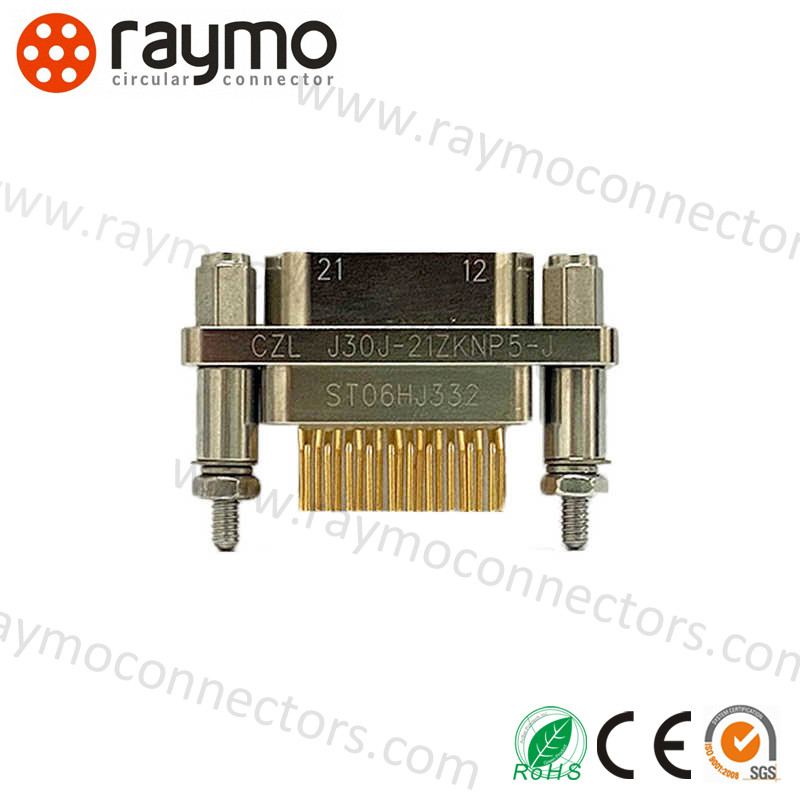

N-Straight inserting PCB,

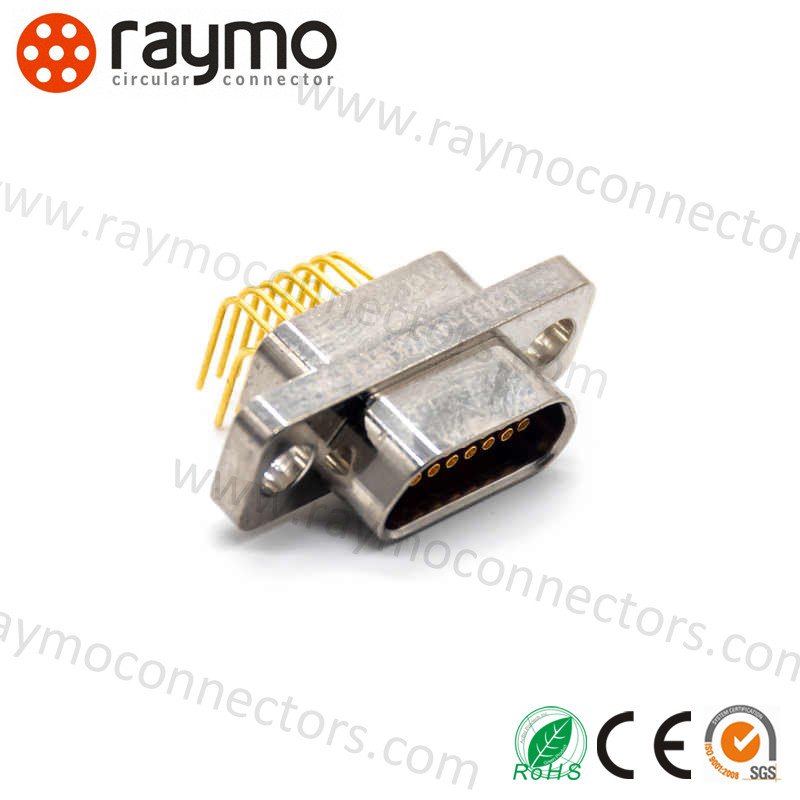

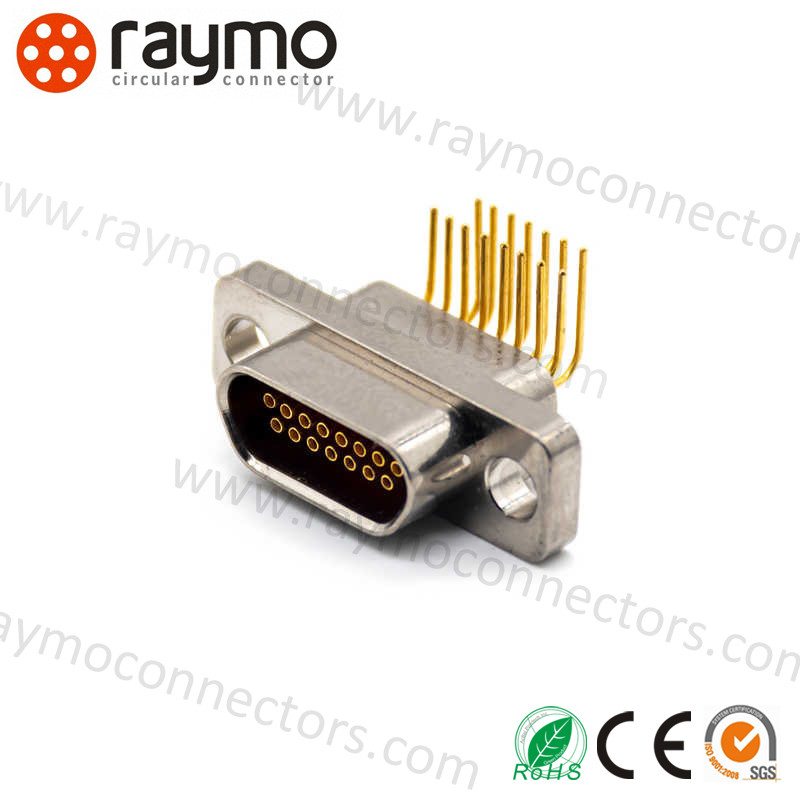

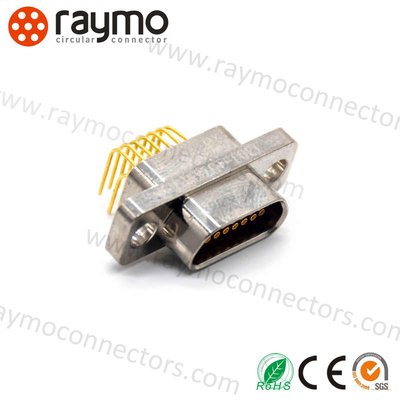

W-Right angle inserting PCB
Type of locking subassemblies:						P
Check More details in J30J Locking Subassemblies
Finishing:							- G
Null- Shell plated with nickel,
G- Shell plated with cadmium
Improved type:								A
A-Shell with shielding braid cable clipper,
C-Suitable for contact and wire is right angle,
D-There is spinning-resistance groove in the interface terminal of the receptacle shell flange,
AD-The combination of variation A and D,
J-The grid of PCB is 1.27×2.54 (row*line),
Q-The shell flange is widened.

J30J Common Series
J30J Crimp series	J30J Solder S series	J30J Straight Inserting PCB N series	J30J Straight Inserting PCB N-J series	J30J 90° Inserting PCB W series	J30J 90° Inserting PCB W-J series

with crimp contacts	with solder contacts	with the grid of 2.54X2.54	with the grid of 1.27X2.54 (row x line)	with the grid of 2.54X2. 54	with the grid of 1.27X2. 54 (row X line)

J30j Series Rectangular Electrical Connectors with 9 Contacts D-SUB Micro-D Connectors and Durable 0

J30J series Rectangular Connecto Company

SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED as a professional in design and manufacture all kinds of connectors and special cables, have accumulated rich experience in development and production for kinds of cables and its related connector adapter.With RED/Teradek Bond/ARRI Camera Cable, Canon / Sony Camera Power Cable, SDI Cable, USB Cable, Video Cable, CCD Cable... We supply different OEM/ODM services serve as different application and requirement.
Our products are widely used in kinds of harsh environment and applications, like industrial control devices, medical equipment, measuring and inspecting equipment, audio & visual equipment and mil, etc. Furthermore, it has excellent compatibility with many leading supplier.
We always adhere to the spirit of innovation, continue to introduce new products series include M5,M8,M9,M12,M16,M23 and other data connectors.With IP68, ISO9001,Rohs,CE, REACH certificate approved.

Tag:

Place of Origin:	China
Brand Name:	RAYMO
Certification:	CE/ROHS/REACH/SGS
Model Number:	J30J-15ZK

Minimum Order Quantity:	1PCS
Price:	2.1
Packaging Details:	PE BAG AND CARTON
Delivery Time:	5-7 WORKING DAYS
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	50000PCS/MONTH

Connector Type:	J30J Series Rectangular Connectors	Type:	D-SUB Micro-D Connectors
Material:	Aluminum With Nickel Plated	Mating Cycles:	500 Times
Contacts:	9,15,21.25.31.37.51.66.74.100.144	IP RANKING:	IP65
Highlight:	Durable Rectangular Electrical Connectors , D-SUB Micro-D Rectangular Electrical Connectors , 9 Contacts Rectangular Electrical Connectors
