2PM Connector Aluminum Alloy 4-50 Pin Thread Connection 700V

2PM Connector Aluminum Alloy 4-50 Pin Thread Connection 700V
2PM Connector Aluminum Alloy 4-50 Pin Thread Connection 700V
2PM Connector Aluminum Alloy 4-50 Pin Thread Connection 700V 2PM Connector Aluminum Alloy 4-50 Pin Thread Connection 700V
Basic Information
Brand Name: Raymo
Certification: CE/RoHs/REACH/ISO9001:2015
Model Number: RM-2PM Series
Minimum Order Quantity: 5
Price: 1-9.99 USD
Delivery Time: 2-3 WEEKS
Payment Terms: T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability: 5000PCS Per Month
Contact Now
Working Voltage: ≤700V Orentation: Straight/Angled
Package Contents: 1 Connector Rated Current: 5-40A
Connector Type: Cable Plug /panel Socket Material: Aluminum Alloy
Connection Method: Thread Connection Contacts: 4/7/8/10/19/20/22/24/32/45/50 Pin
Highlight:

2PM connector aluminum alloy

,

4-50 pin thread connector

,

700V 2PM connector

Circular Connector Straight/Angled Orientation Russian Standard 2РМТ22КПН10Г1В1В Female Plug With Straight Unshielding Tail
Product Attributes
Attribute Value
Working Voltage ≤700V
Orientation Straight/Angled
Package Contents 1 Connector
Rated Current 5-40A
Connector type Cable Plug /panel Socket
Material Aluminum Alloy
Connection Method Thread Connection
Contacts 4/7/8/10/19/20/22/24/32/45/50 Pin
Product Description

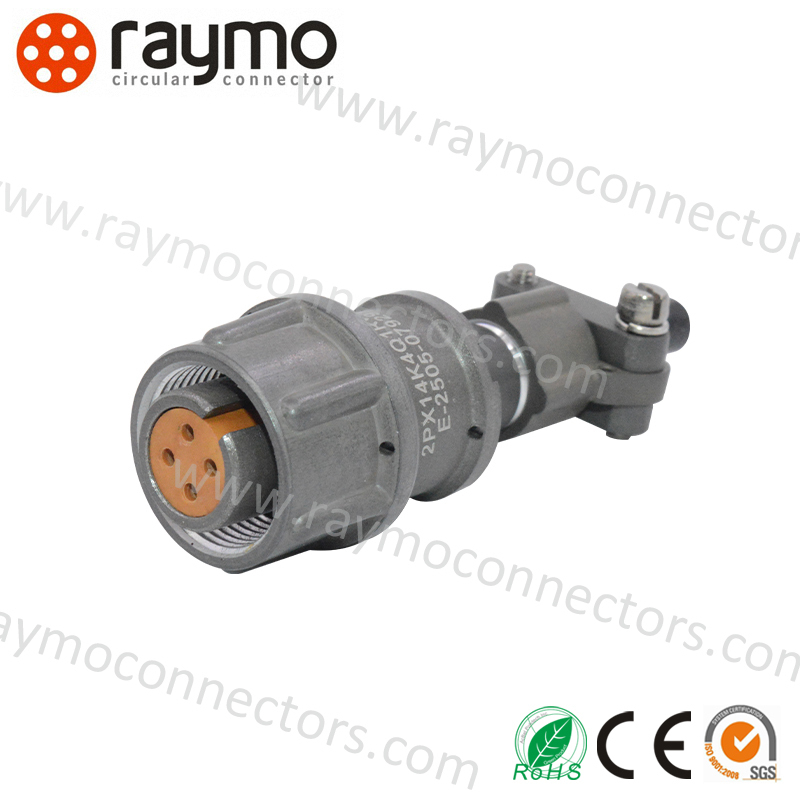

The 2PM Connector is a versatile and reliable product designed to meet demanding connectivity requirements. With multiple contact configurations (4-50 pins) and a temperature range of -60°C to 200°C, this connector performs exceptionally in extreme environments.
Constructed from durable aluminum alloy, it offers excellent corrosion resistance and long-term reliability. The straight/angled orientation options provide installation flexibility, while the 700V working voltage capacity makes it suitable for various industrial applications.
Key Features
  • Multiple pin configurations (4/7/8/10/19/20/22/24/32/45/50 Pin)
  • High working voltage: ≤700V
  • Durable aluminum alloy construction
  • Thread connection method
  • Wide temperature range: -60°C to 200°C
  • Straight/angled orientation options
Technical Specifications
Parameter Value
Orientation Straight/Angled
Connection Method Thread Connection
Rated Current 5-40A
Working Voltage ≤700V
Temperature Range -60-200°C
Contact Resistance 0.8-5mΩ
Applications
The 2PM Series connectors are ideal for industrial machinery, automotive systems, and electrical applications requiring reliable high-voltage connections. Their robust construction makes them suitable for challenging environments where temperature extremes and vibration resistance are critical.
Customization Options
Available with CE, RoHs, REACH, and ISO9001:2015 certifications. Minimum order quantity of 5 pieces with competitive pricing (1-9.99 USD per unit). Delivery within 2-3 weeks with monthly production capacity of 5000 units.
Support & Services
Comprehensive technical support available for product inquiries, troubleshooting, and maintenance. Regular updates provided to ensure optimal performance and compatibility with evolving technologies.
