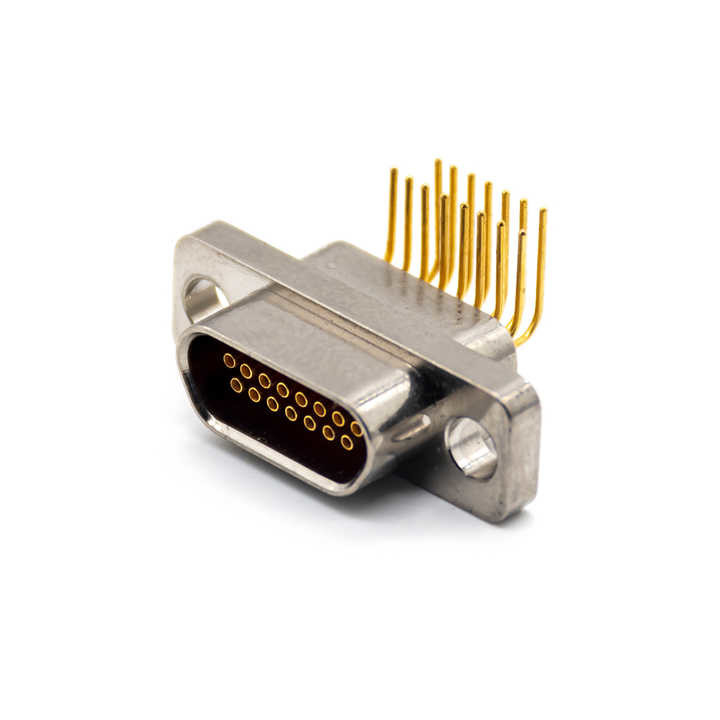

ITT Cannon J30J Series Connector 800V Gold Plated Metal

ITT Cannon J30J Series Connector 800V Gold Plated Metal
ITT Cannon J30J Series Connector 800V Gold Plated Metal
ITT Cannon J30J Series Connector 800V Gold Plated Metal ITT Cannon J30J Series Connector 800V Gold Plated Metal
Basic Information
Brand Name: Raymo
Certification: CE/RoHs/REACH/ISO9001:2015
Model Number: RM-J30J
Document: J30J Miniature Rectangular ...es.pdf
Minimum Order Quantity: 1 Piece
Price: 5-15 USD
Packaging Details: CTN
Delivery Time: 3-4 Weeks
Payment Terms: T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability: 5000PCS Per Month
Contact Now
Dwv: 800V Material: Metal
Center Conductor: Copper Alloy, Gold Plating Product Type: Connector
Contact Gender: Male Plug/female Receptacle Current Rating: 3A
Wire Length: Customized Contact Spacing: 1.27mm
Highlight:

J30J series gold plated connector

,

ITT Cannon 800V metal connector

,

J30J series high voltage connector

ITT Cannon MDM Series J30J Series Connector
The perfect fit for your industrial applications, offering reliability and versatility for demanding environments.
Product Specifications
Attribute Value
DWV 800V
Material Metal
Center Conductor Copper Alloy, Gold Plating
Product Type Connector
Contact Gender Male Plug/Female Receptacle
Current Rating 3A
Wire Length Customized
Contact Spacing 1.27mm
Product Overview
The ITT Cannon J30J series connector is a versatile and reliable solution offering contact options from 9 to 100 positions. Designed with gold-plated copper alloy contacts, it ensures excellent conductivity and corrosion resistance for demanding applications.
Key Features
  • Contact options: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 positions
  • High insulation resistance: ≥5000 MΩ
  • Gold-plated copper alloy center conductor
  • Wide temperature range: -55°C to +125°C
  • 800V dielectric withstanding voltage
  • Metal construction for durability
  • Standard 2.54×2.54 grid spacing
Technical Parameters
Parameter Value
Insulation Resistance ≥5000 MΩ
Grid Distance 2.54×2.54
Contact Termination Crimp
Temperature Range -55°C to +125°C
Applications
The J30J series connector is ideal for military, aerospace, and industrial applications requiring reliable connections in harsh environments. Its compact 1.27mm contact spacing makes it suitable for space-constrained electronic devices.
Certifications & Compliance
Meets MIL-C-83513 and Micro-D MIL-Spec Connector standards. Compliant with CE, RoHS, REACH, and ISO9001:2015 certifications.
Support & Services
Our technical support team provides comprehensive assistance for installation, troubleshooting, and maintenance to ensure optimal connector performance.

Tag:

J30J series gold plated connector

MIL-Spec micro-D connector

2.54×2.54 grid connector
