Home ProductsJ30J ConnectorJ30J Series 31-Pin Connector 500VAC -55～+125℃ Temperature Range

J30J Series 31-Pin Connector 500VAC -55～+125℃ Temperature Range

J30J Series 31-Pin Connector 500VAC -55～+125℃ Temperature Range
J30J Series 31-Pin Connector 500VAC -55～+125℃ Temperature Range
J30J Series 31-Pin Connector 500VAC -55～+125℃ Temperature Range J30J Series 31-Pin Connector 500VAC -55～+125℃ Temperature Range
Basic Information
Brand Name: Raymo
Certification: CE/RoHs/REACH/ISO9001:2015
Model Number: J30J-31TJS
Document: J30J Miniature Rectangular ...es.pdf
Minimum Order Quantity: 1 Piece
Price: 5-15 USD
Packaging Details: CTN
Delivery Time: 3-4 Weeks
Payment Terms: T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability: 5000PCS Per Month
Contact Now
Withstanding Voltage: 500VAC Application: Electronic Equipment
Center Conductor: Copper Alloy, Gold Plating Grid Distance: 2.54×2.54
Type: Connector Temperature Range: -55～+125 ℃
Wire Length: 50cm, 500mm Mating Cable: AFR-250, White Wire 0.1~0.15mm2
Highlight:

J30J series 31-pin connector

,

500VAC J30J connector

,

J30J connector high temperature range

J30J-31TJS 31 Pins J30J Series Connector
2.54×2.54 Grid Distance | ≤1.01X10-3 Pa.cm3/s Leak Rate
Attribute Value
Withstanding Voltage 500VAC
Application Electronic Equipment
Center Conductor Copper Alloy, Gold Plating
Grid Distance 2.54×2.54
Type Connector
Temperature Range -55～+125 ℃
Wire Length 50cm, 500mm
Mating Cable AFR-250, White Wire 0.1~0.15mm2
Product Overview
The J30J series connector is a versatile and reliable product designed for demanding applications. Part of the MWDM Glenair Micro-D series, this microminiature connector features Micro Twist Pin Contact technology for secure connections in space-constrained environments. Available in multiple pin configurations (9 to 100 pins), it offers flexibility for various connectivity needs.
Key Features

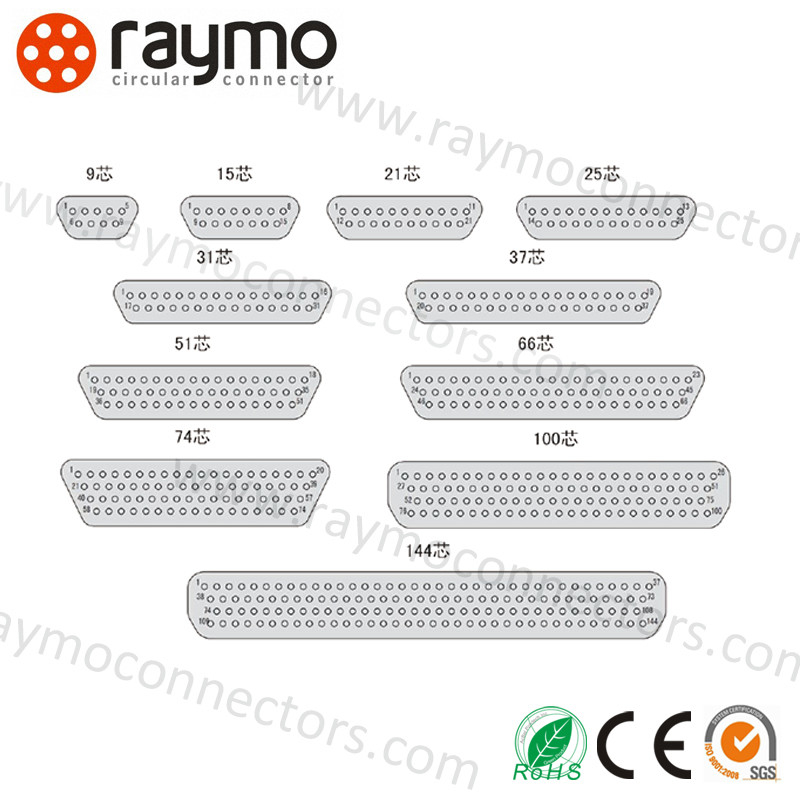

  • Multiple pin configurations: 9, 15, 21, 25, 31, 37, 51, 66, 74, 100 pins
  • High withstanding voltage: 500VAC
  • Wide temperature range: -55～+125 ℃
  • Adjustable cable length to meet project requirements
  • Micro Twist Pin Contact technology for stable connections
  • Compatible with AFR-250 mating cable (White Wire 0.1~0.15mm2)
Technical Specifications
Withstanding Voltage 500VAC
Temperature Range -55～+125 ℃
Voltage Rating 250V
Leak Rate ≤1.01X10-3 Pa.cm3/s
Mating Cycle 500 Times
Applications
The J30J series connector is ideal for demanding applications across multiple industries:
  • Military/Defense: Communication systems, radar equipment
  • Aerospace: Avionics, satellite communication
  • Industrial Automation: Control systems, sensors
  • Telecommunications: Network infrastructure
  • Medical Equipment: Compliant with CE, RoHS, REACH standards
Support & Services
Our technical support team provides comprehensive assistance for installation, troubleshooting, and product compatibility. We ensure seamless integration and optimal performance of your J30J series connectors.
