J30J Series 9-Pin Connector 500VAC 2.54mm Grid

J30J Series 9-Pin Connector 500VAC 2.54mm Grid
J30J Series 9-Pin Connector 500VAC 2.54mm Grid
J30J Series 9-Pin Connector 500VAC 2.54mm Grid J30J Series 9-Pin Connector 500VAC 2.54mm Grid
Basic Information
Brand Name: Raymo
Certification: CE/RoHs/REACH/ISO9001:2015
Model Number: MDM-9PS
Document: J30J Miniature Rectangular ...es.pdf
Minimum Order Quantity: 1 Piece
Price: 5-15 USD
Packaging Details: CTN
Delivery Time: 3-4 Weeks
Payment Terms: T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability: 5000PCS Per Month
Contact Now
Application: Electronic Equipment Cable Length: As Require
Wire Length: 50cm, 500mm Mating Cycle: 500 Times
Contact Pin: 9 Pins Type: Connector
Grid Distance: 2.54×2.54 Withstanding Voltage: 500VAC
Highlight:

J30J series 9-pin connector

,

500VAC 2.54mm grid connector

,

J30J series electrical connector

ITT Cannon MDM Series MDM-9PS Small and Versatile Microminiature Connector
Product Attributes
Attribute Value
Application Electronic Equipment
Cable Length As Require
Wire Length 50cm, 500mm
Mating Cycle 500 Times
Contact Pin 9 Pins
Type Connector
Grid Distance 2.54×2.54
Withstanding Voltage 500VAC
Product Description

The J30J series connector is a versatile and high-quality product designed for electronic equipment applications. With a voltage rating of 250V, this connector ensures reliable and safe connectivity for various devices.

Featuring 9 contact pins, the J30J series connector provides a secure and efficient connection for your electronic components. Its compact micro-miniature design makes it suitable for space-constrained applications in portable electronic devices.

The connector is compatible with ITT Cannon MDM Series connectors, ensuring easy integration into existing systems. Cable length can be customized to meet specific installation requirements.

Key Features
  • Product Name: J30J series connector
  • Center Conductor: Copper Alloy, Gold Plating
  • Withstanding Voltage: 500VAC
  • Leak Rate: ≤1.01X10^-3 Pa.cm^3/s
  • Voltage Rating: 250V
  • Mating Cycle: 500 Times
Technical Specifications
Parameter Value
Mating Cycle 500 Times
Leak Rate ≤1.01X10^-3 Pa.cm^3/s
Mating Cable AFR-250, White Wire 0.1~0.15mm2
Grid Distance 2.54*2.54

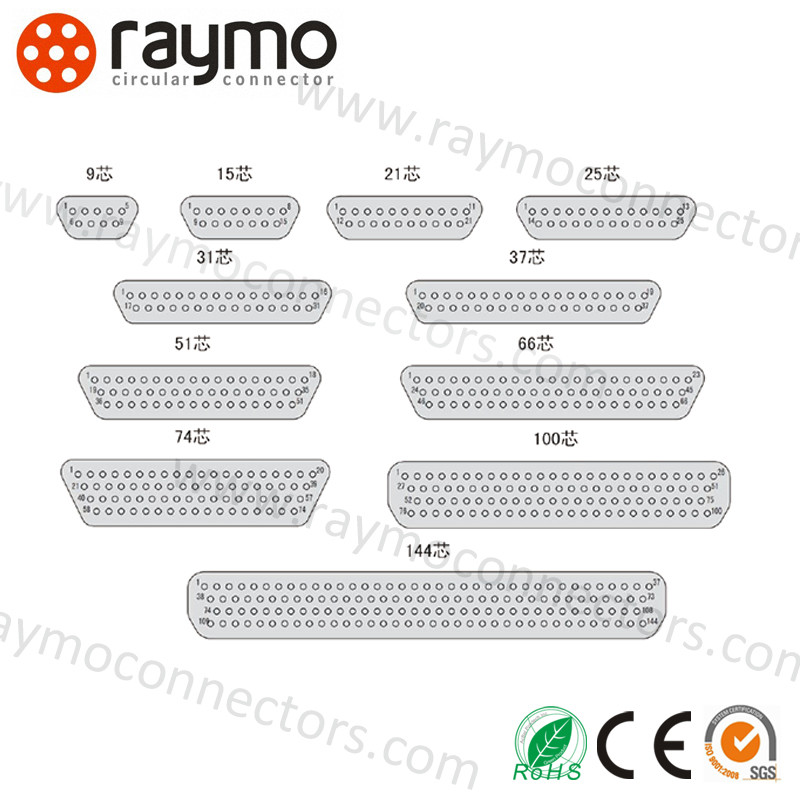

Available Pins 9, 15, 21, 25, 31, 37, 51, 66, 74, 100
Type Connector
Temperature Range -55～+125 ℃
Withstanding Voltage 500VAC
Voltage Rating 250V
Center Conductor Copper Alloy, Gold Plating
Applications

The Raymo RM-J30J series connector is designed for various applications in the electronic equipment industry. Its miniature rectangular connector design with micro twist pin contact technology makes it suitable for both small-scale and large-scale projects.

Certified with CE, RoHs, REACH, and ISO9001:2015 standards, this connector meets international quality requirements. Available with flexible wire length options (50cm and 500mm) and durable 500-cycle mating capability.

Support and Services

Comprehensive technical support is available for installation, troubleshooting, and product-related queries to ensure optimal performance and customer satisfaction.

Tag:

J30J series gold plated connector

MIL-Spec micro-D connector

2.54×2.54 grid connector
