J30J male Connector 1.27mm Pitch 3A 500VAC Gold Plated J30J-37TJL

J30J male Connector 1.27mm Pitch 3A 500VAC Gold Plated J30J-37TJL
J30J male Connector 1.27mm Pitch 3A 500VAC Gold Plated J30J-37TJL
J30J male Connector 1.27mm Pitch 3A 500VAC Gold Plated J30J-37TJL J30J male Connector 1.27mm Pitch 3A 500VAC Gold Plated J30J-37TJL
Basic Information
Brand Name: Raymo
Certification: CE/RoHs/REACH/ISO9001:2015
Model Number: J30J-37TJL
Document: J30J Miniature Rectangular ...es.pdf
Minimum Order Quantity: 1 Piece
Price: 5-15 USD
Packaging Details: CTN
Delivery Time: 3-4 Weeks
Payment Terms: T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability: 5000PCS Per Month
Contact Now
Contact Gender: Female/female Current Rating: 3 Amps
Contact Spacing: 1.27mm Palting: Gold Plating
Withstanding Voltage: 500VAC Housing Material: Thermoplastic
Operating Temperature Range: -55 To 105 Degrees Celsius Material: Metal
Highlight:

J30J female connector 1.27mm pitch

,

J30J connector gold plated contacts

,

1.27mm pitch connector 500VAC rated

J30J Series Connector 1.27mm Contact Spacing 21 Contacts for Speed and Frequency Applications
Product Overview
The J30J series is a versatile micro-miniature connector offering reliable connectivity in compact electronic devices. Its durable metal construction and customizable wire length make it ideal for space-constrained applications requiring high performance.
Key Features

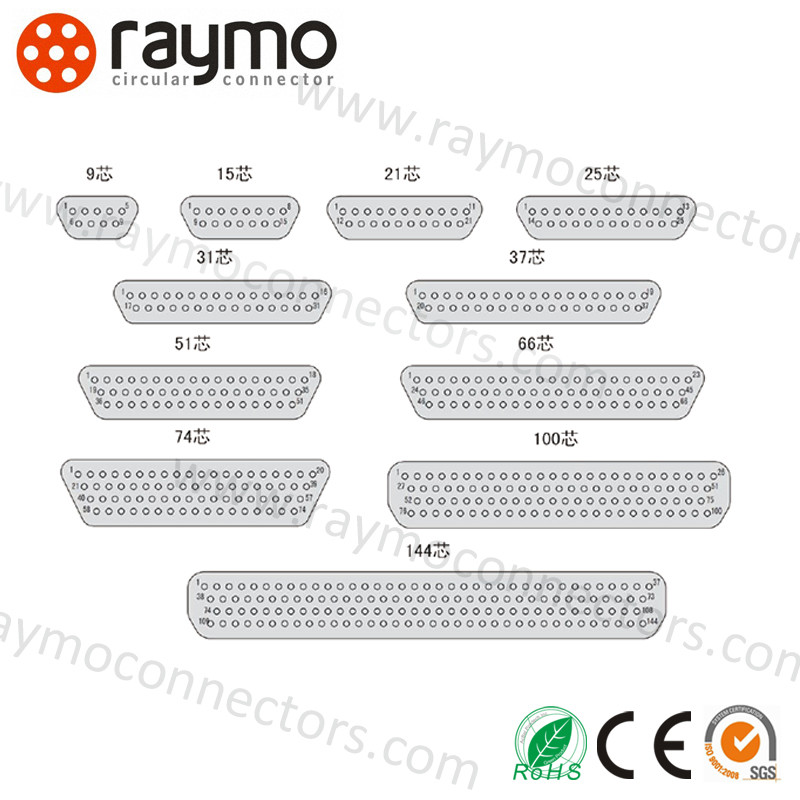

  • Contact options: 9, 15, 21, 25, 31, 37, 51, 66, 74, and 100 contacts
  • Contact gender: Female/female configuration
  • Current rating: 3 Amps continuous operation
  • Custom wire length: Tailored to specific installation requirements
  • Durable construction: Metal housing for enhanced durability and EMI shielding
  • Termination style: Solder termination for secure connections
Technical Specifications
Parameter Value
Grid Distance 2.54*2.54 mm
Material Metal
Contact Pitch 2.54 mm
Plating Gold plating
Withstanding Voltage 500VAC
Temperature Range -55°C to +105°C
Center Conductor Copper alloy with gold plating
Applications
The J30J connector is designed for demanding applications in industrial equipment, automotive systems, and compact electronic devices. Its compatibility with ITT Cannon MDM Series makes it particularly suitable for:
  • High-speed data transmission systems
  • Frequency-sensitive applications
  • Space-constrained electronic assemblies
  • Critical systems requiring reliable connections
Certified to CE, RoHS, REACH, and ISO9001:2015 standards for quality assurance.
Support & Services
Our technical support team provides comprehensive assistance for installation, troubleshooting, and maintenance. We offer repair and replacement services to ensure optimal performance throughout the product lifecycle.

Tag:

J30J series gold plated connector

MIL-Spec micro-D connector

2.54×2.54 grid connector
