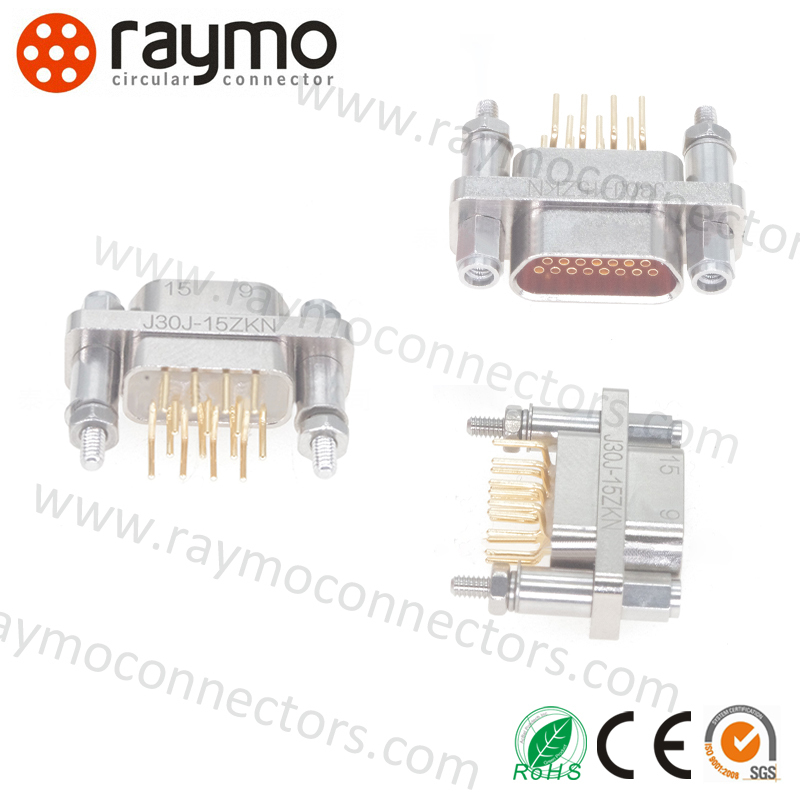

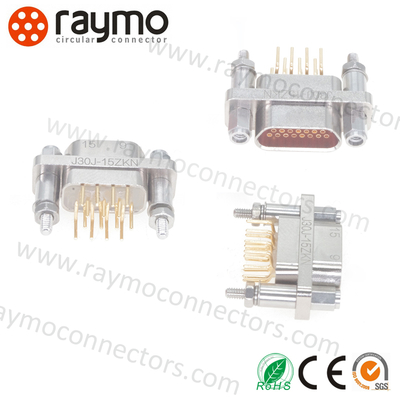

alternative ITT CANNON MDM series MIL-DTL-83513 Micro-Miniature Connector 3A 2.54mm Pitch MDM-15PBS

alternative ITT CANNON MDM series MIL-DTL-83513 Micro-Miniature Connector 3A 2.54mm Pitch MDM-15PBS
alternative ITT CANNON MDM series MIL-DTL-83513 Micro-Miniature Connector 3A 2.54mm Pitch MDM-15PBS
alternative ITT CANNON MDM series MIL-DTL-83513 Micro-Miniature Connector 3A 2.54mm Pitch MDM-15PBS alternative ITT CANNON MDM series MIL-DTL-83513 Micro-Miniature Connector 3A 2.54mm Pitch MDM-15PBS
Basic Information
Brand Name: Raymo
Certification: CE/RoHs/REACH/ISO9001:2015
Model Number: MDM-15PBS
Document: J30J Miniature Rectangular ...es.pdf
Minimum Order Quantity: 1 Piece
Price: 5-15 USD
Packaging Details: CTN
Delivery Time: 3-4 Weeks
Payment Terms: T/T,D/A,D/P,Western Union,MoneyGram
Supply Ability: 5000PCS Per Month
Contact Now
Operating Temperature Range: -55 To 105 Degrees Celsius Contact Pitch: 2.54 Mm
Wire Length: Customized Contact Gender: Female/female
Material: Metal Housing Material: Thermoplastic
Grid Distance: 2.54×2.54 Contact: 15
Highlight:

J30J MIL-DTL-83513 connector

,

micro-miniature connector 2.54mm pitch

,

J30J connector 3A current rating

Customized Wire Length ITT CANNON MDM Series MIL-DTL-83513 Micro-Miniature Connector
Product Overview
The J30J series connector delivers reliable performance for demanding connectivity applications. This MIL-Spec micro-miniature connector features gold-plated contacts for superior conductivity and corrosion resistance. With a 3 Amp current rating and rugged metal construction, it's engineered for durability in low-power electronic systems.
Key Features
  • MIL-C-83513 compliant micro-miniature connector
  • Micro-D MIL-Spec design for high-reliability applications
  • 3 Amp current rating
  • Extended operating temperature range (-55°C to +105°C)
  • Solder termination style
  • Female/female contact configuration
  • 2.54mm grid spacing
Technical Specifications
Parameter Specification
Center Conductor Copper Alloy, Gold Plating
Withstanding Voltage 500VAC
Material Metal
Wire Length Customized
Contact Spacing 1.27mm
Termination Style Solder

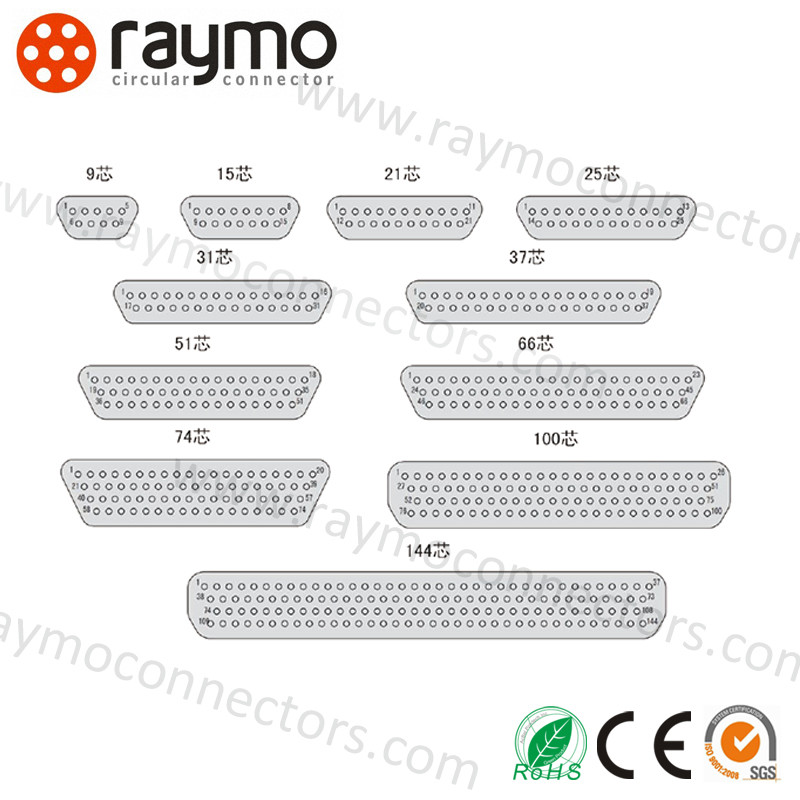

Contact Options 9, 15, 21, 25, 31, 37, 51, 66, 74, 100
Housing Material Thermoplastic
Applications
The J30J connector is ideal for demanding applications requiring micro-miniature MIL-Spec connectivity:
  • Direct replacement for J30J series connectors in electronic equipment
  • MDM series connector applications
  • Military and aerospace electronics
  • Telecommunications systems
  • Precision instrumentation
Certified to CE, RoHS, REACH, and ISO9001:2015 standards. Available with customizable wire lengths to meet specific application requirements.
Support & Services
Our comprehensive technical support includes product maintenance, troubleshooting assistance, and warranty services. Our engineering team is available to address technical inquiries and provide application-specific guidance.
